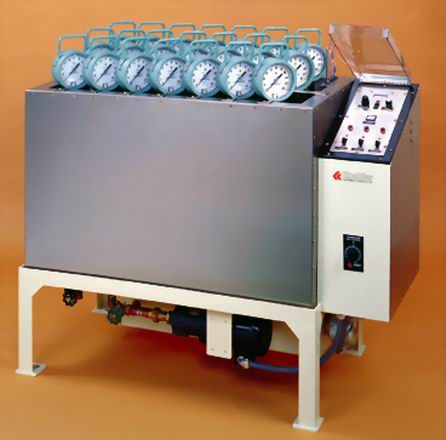

Reid Vapor Pressure Bath

https://www.labequip.com/web/image/product.template/33876/image_1920?unique=96dd046

The 21 unit Koehler K11416 constant temperature Reid Vapor Pressure Bath immerses twenty-one test cylinders for vapor pressure tests on liquid products and liquefied petroleum gas (LPG). Electronic level control automatically maintains the proper immersion depth per ASTM specifications. Heating system employs a 6kW stainless steel heat exchanger with a heavy duty circulating pump to provide rapid heat-up, even heat distribution and ease of servicing. Convenient digital setpoint and display permits rapid selection of any bath liquid temperature within the operating range. A built-in over-temperature limit control protects against accidental overheating. Bath interior and internal components are constructed of heavy gauge stainless steel. Control panel is shielded by a hinged acrylic cover. Includes sturdy angle-iron base with corrosion resistant polyurethane finish. Order pressure gauges and cylinders separately. Digital electronic temperature control. Automatic water level control maintains proper immersion depth. Temperature Range: 212°F (100°C) ±0.2°F (±0.1°C). Bath Medium: 58 gal (219.5L) water. Heater Range: 0-6000W. Other accessories as listed below and on the attached specification sheet are available at additional cost.

Test apparatus for liquid products (ASTM D323) requires:
~ Test Cylinders, one or two-opening type
~ Pressure Gauges
~ Constant Temperature Bath
~ Bath Thermometer
~ Transfer Connection
~ Manometer
~ Manometer Adapter

Test apparatus for liquefied petroleum gases (ASTM D1267) requires:
~ Test Cylinders, two-opening type
~ Bleeder Valve Assemblies
~ Pressure Gauges
~ Constant Temperature Bath
~ Bath Thermometer
~ Flexible Tubing

50 Hz model for overseas use is also available and is slighlty less expensive - please inquire for pricing on K11415.

$ 46,559.00 46559.0 USD $ 46,559.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
Petroleum

Terms and Conditions


Stock Number N717
Model K11416
Manufacturer Koehler Instrument
Standard Test Methods ASTM D1267 ASTM D323
Product Brochure
Warranty 1 YEAR MANUFACTURER'S WARRANTY

Capacity 219.5 L / 58 gal
Elc NO
Outside 48 in.W x 22 in.D x 36 in.H
Volts 220 - 240
Hertz 60
Amps Watts 28A

OPTIONAL ACCESSORIES AT ADDITIONAL COST:
K11500 Reid Vapor Pressure Cylinder, 1-Opening Type
K11201 Reid Vapor Pressure Cylinder 2-Opening Type
K11202 Bleeder Valve Assembly for LPG tests for K11201 test cylinder
311-005-004 Range (psi/kPa): 0-5/35 Figure Intervals (psi/kPa): 0.5/5 Interval Graduations(psi/kPa): 0.05/0.2
311-015-002 Range (psi/kPa): 0-15/100 Figure Intervals (psi/kPa):1.0/10 Interval Graduations(psi/kPa): 0.1/1.0
311-030-002 Range (psi/kPa): 0-30/200 Figure Intervals (psi/kPa):5.0/20 Interval Graduations(psi/kPa): 0.5/2.0
311-060-002 Range (psi/kPa): 0-60/400 Figure Intervals (psi/kPa):5.0/50 Interval Graduations(psi/kPa): 0.2/2.5
311-100-002 Range (psi/kPa): 0-100/700 Figure Intervals (psi/kPa):10/50 Interval Graduations(psi/kPa): 0.5/2.5
311-250-001 Range (psi/kPa): 0-250/1750 Figure Intervals (psi/kPa):25/100 Interval Graduations(psi/kPa): 1.0/20
311-600-003 Range (psi/kPa): 0-600/4200 Figure Intervals (psi/kPa):50/250 Interval Graduations(psi/kPa): 2.0/25
K11401-RPS RVP Data Acquisition System, 115V 60 Hz
K11491-RPS RVP Data Acquisition System,230V 50/60 Hz
K11404-50 RVP Pressure Transducer, 0-50 psi
K11404-200 RVP Pressure Transducer, 0-200 psi
K11404-1000 RVP Pressure Transducer, 0-1000 psi
250-000-18F ASTM 18F Thermometer
Range: 94 to 108°F
250-000-18C ASTM 18C Thermometer
Range: 34 to 42°C
250-000-65F ASTM 65F Thermometer
Range: 122 to 176°F
250-000-65C ASTM 65C Thermometer
Range: 50 to 80°C
K11800 Sample Container with Cover Assembly
K11810 Transfer Connection: Consists of threaded brass cap, delivery tube and smpling tube. Use for removing liquid from the sample container in accordance with ASTM specifications
371-000-002 Liquid Manometer: Graduated in inches (0.1" div.). For checking pressure gauge reading of up to 15psi
K112B-1-0-12 Manometer Adapter Kit: Kit for attaching pressure gauge to liquid manometer for pressure verification
AS568-210 O-ring Seal: For coupling between air and gas chambers on K11500 and K11201 vapor pressure pressure vessels
AS568-113 O-ring Seal: For gauge and bleeder valve assembly connections on K11500 and K11201 vapor pressure pressure vessels
K40100 Flexible Tubing: Sulfur-free plastic lined tubing with 1/4" stainless steel and aluminum connectors. For charging LPG test cylinder.
