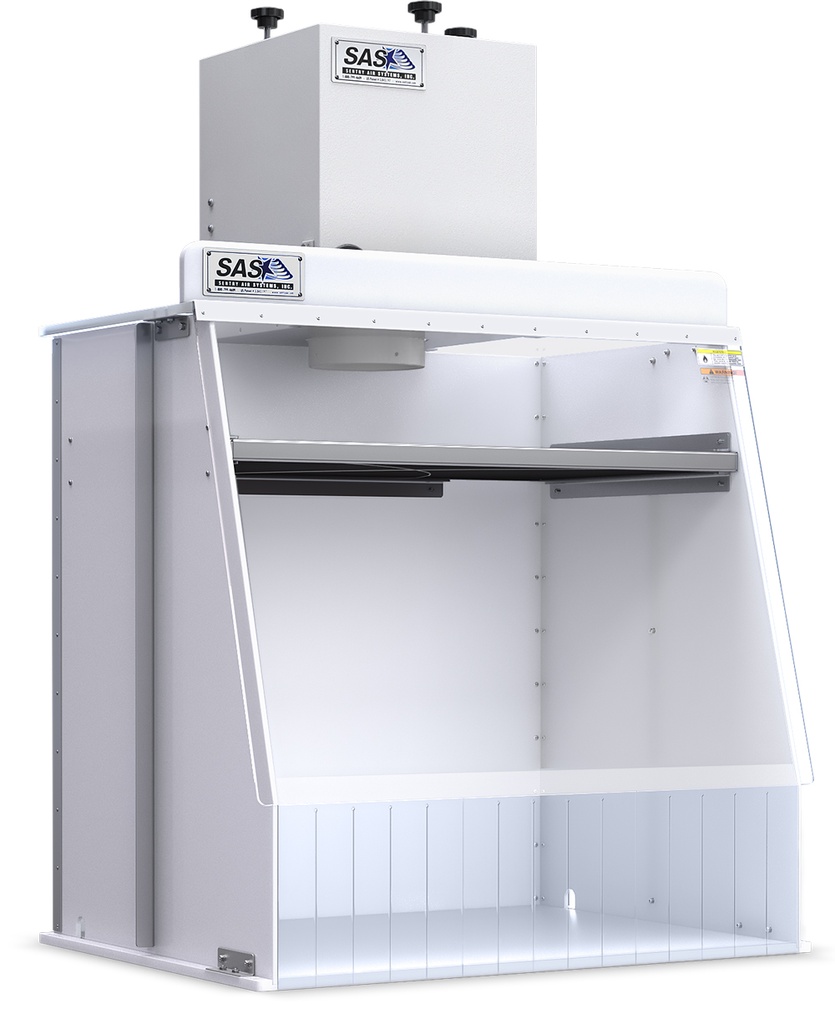

Spray Booth

A portable spray booth is a uniquely designed enclosure used to isolate fumes and vapors that are expelled during painting or epoxy applications.

Sentry Air Systems spray booths can be customized to fit your specific application or job. By utilizing a three tiered filtration process, these Portable Spray Booths remove the hazardous fumes from the surrounding environment creating a safe breathing zone for the operator.

These hoods use powerful fans combined with a variety of pre-filters, HEPA filters, and activated carbon filters. The strong suction at the inlet will provide an effective source capture and containment of overspray particulates. This results in protecting the operators breathing zone as well as preventing unwanted spray particulate and odors from entering the general work area. The SAS ductless spray booths and paint hoods are highly compact and are extremely energy efficient. Typical Portable Spray Booth uses may include light spray painting, aerosol sprays, epoxy overspray, airbrush spray painting, and a variety of other processes.

Benefits of a Portable Spray Booth
Minimal installation costs_no external ducting or venting
Portable
Minimal maintenance
Environmentally friendly
Significant energy cost savings
No permitting issues for venting outside (ie. EPA air sampling)

Do Portable Spray Booths work against VOCs: Yes, our application specialists will evaluate your process including the SDS (safety data sheet) for the paints that will be utilized. They can help determine what the optimal filtration should be. In most cases, activated carbon filtration will work, however, we have the ability to impregnate the carbon as well for specialty paints.

The Sentry Air Systems unit utilizes a three-part filtration system consisting of a MERV 7 pre-filter (for overspray), a HEPA filter (for fine particulate), and an activated carbon filter for odors and VOC's. In addition, these spray hoods or walk-in spray booths can be utilized for HPLV (high-pressure, low velocity spray guns) spraying processes.

SPECIFICATIONS:
Hood Material:
- Sides: .250 in. White Acrylic
- Base: .500 in. White High Density Polyethylene
- Top: .500 in. Clear Polycarbonate

Front Windows: 0.250 in. Clear Polycarbonate

Approximate Inlet Velocities:
Pre-filter & 99.97% HEPA Filter - 100 FPM
Pre-filter & Heavy-duty Carbon Filter - 60 FPM

Blower Dimensions: 13 x 13 x 14.5 in.H

***REQUEST PRICING ON 40 in., 50 in. and 60 in. wide models***
