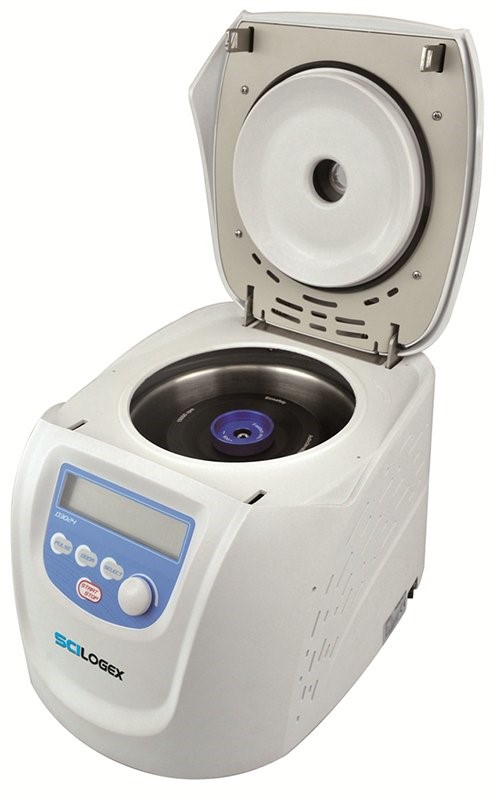

High Speed Micro Centrifuge
The GS-24 is a high speed micro centrifuge designed for a wide range of applications including clinical, biochemical, and research laboratories. Featuring a brushless DC motor and reliable bio-seal design, this centrifuge provides excellent performance with low noise levels. The complete system includes five rotor options with capacities ranging from 0.2mL to 5mL tubes.
Features
- Effective Ventilation System
- Conventional design
- Brushless DC motor
- Wide range of rotors
- Limited ventilation on the upper side of the rotor
- Proprietary design of dual path ventilation enforcing air cooling from both the upper and lower side for the rotor
Applications
Reliable for biological, biochemical, clinical and research applications including molecular biology, clinical chemistry lab, biotechnology, and many more.
Specifications
| Parameter |
GS-24 |
| Max RCF |
16,000×g (increment: 100×g) |
| Max Speed |
15000rpm (1000-15000rpm, increment: 100rpm) |
| Speed Accuracy |
±10rpm |
| Run Time |
10sec-99min / Continuous |
| Acceleration/Braking time (Sec) |
15s/20s |
| Motor |
Brushless DC motor |
| Noise Level |
≦58dB |
| Rotor Capacity |
5×1.5-18mL, 5×1.5culture tube×16
0.6×15mL / 05×1.5mL / 15×1.5mL, 1×5mL×18
05×1.5mL×28, PCR8×8 |
| Safety Devices |
Dual door interlock
Over Speed detection
Automatic internal diagnosis |
| Power |
Single Phase: AC100V-115V 50/60Hz, 5A / AC220V-240V 50/60Hz, 3A / AC100V-240V 50/60Hz, 1000W |
| Dimension (W×D×H) |
310×285×188mm |
| Weight |
16kg |
| Other functions |
Speed/RCF switch / Short Time run function / sound & alert function |
| Certification |
CE, CCC, FCC, KC/KCC |
Rotor Features
Fully Autoclavable
High strength aluminum alloy rotors are fully autoclavable, withstanding sterilizing at 121°C for 20 minutes.
Three-layer Seal
GS-24-2, AS24-2, and GS-1524-2 rotors are designed to prevent sample leakage. Each and every rotor is hermetically sealed by three rubber seals.
- Three rubber seals fitted to achieve bio-safe condition
- Seals within the aluminum alloy rotor
Mechanical Safety
GS/GS-N Series centrifuge confirms to ISO 14688-1 and IEC 61010-2-020, requiring validation by partially cracking and overloading rotor assembly, and guarantees that rotor will be detached or loosened due to unexpected dangerous event.
Available Rotors
Standard with GS-24 & GS-N24
| Model |
Cat. No. |
Specifications |
| AS24-2 |
19400069 |
Max. Speed: 15000rpm
Max. RCF: 21870×g
Rotor Capacity: 2mL×24, 1.5mL×24, 0.2mL×24, 0.5mL×24
Rotor Material: Aluminum alloy (Bio sealing)
Available rotor adapters: A02P2, A05P2 |
Optional for GS-24 & GS-N24
| Model |
Cat. No. |
Specifications |
| AS36-05 |
19400071 |
Max. Speed: 15000rpm
Max. RCF: 21870×g
Rotor Capacity: 0.5mL×36, 0.2mL×36
Rotor Material: Aluminum alloy (Bio-safe / Bio sealing): Yes
Available rotor adapters: A02P05 |
| AS4-PCR8 |
19400072 |
Max. Speed: 15000rpm
Max. RCF: 21870×g
Rotor Capacity: 0.2mL×PCR 8×4
Rotor Material: Aluminum alloy (Bio-safe / Bio sealing): Yes |
| AS12-5V |
19400070 |
Max. Speed: 15000rpm
Max. RCF: 21870×g
Rotor Capacity: 5mL×12 (cone bottom)
Rotor Material: Aluminum alloy (Bio sealing): Yes |
| AS18-5 |
19400073 |
Max. Speed: 15000rpm
Max. RCF: 21870×g
Rotor Capacity: 5mL×18 (Round bottom)
Rotor Material: Aluminum alloy (Bio sealing) |
Optional Adapters
| Model |
Cat. No. |
Description |
| A02P2 |
19500001 |
0.2mL rotor adapter
Used with A12-2, A12-2P, A6-24-2 and A24-2P rotor
24pcs/pk |
| A05P2 |
19500002 |
0.5mL rotor adapter
Used with A12-2, A12-2P, A6-24-2 and A24-2P rotor
24pcs/pk |
| A02P05 |
19500003 |
0.2mL rotor adapter
Used with A6-36-05 rotor
36pcs/pk |
