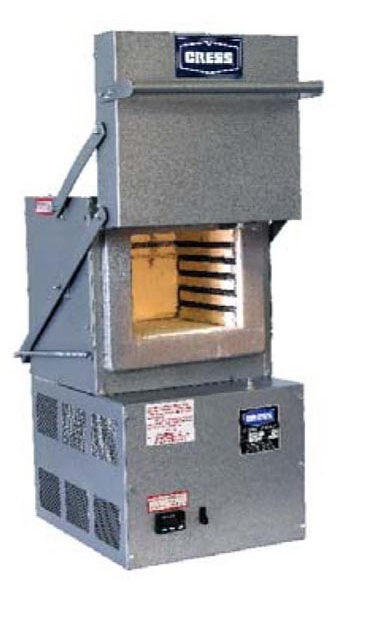

Benchtop Furnace

An ideal unit for many of the small jobs found in tool rooms, production shops or laboratory, the C401 furnace is designed for those users who require automatic temperature controlled furnaces from 250°F to 2250°F. The spring counter-balance door rises vertically on lever arrangement keeping the hot face away from operator. Unit comes equipped with a door safety switch. when door is opened, power is disconnected from the heating elements.

Temperature Control: Auto tuning microprocessor-based controller.
Elements: High temperature iron-aluminum wire.
Wiring: furnace is completely wired and equipped with cord ready to plug into a 115 volt outlet. control, relay and wiring connections are enclosed on the base

SPECIFICATIONS:
~ Chamber Width: 6.5 in.
~ Chamber Length: 9 in.
~ Chamber Height: 5.5 in.
~ Overall Width: 15.5 in.
~ Overall Length: 17.5 in.
~ Overall Height: 22 in.
~ Max. Intermittent Temperature: 2250°F
~ Max. Continuos Temperature: 2000°F
~ Input Power: 1.6 kW
