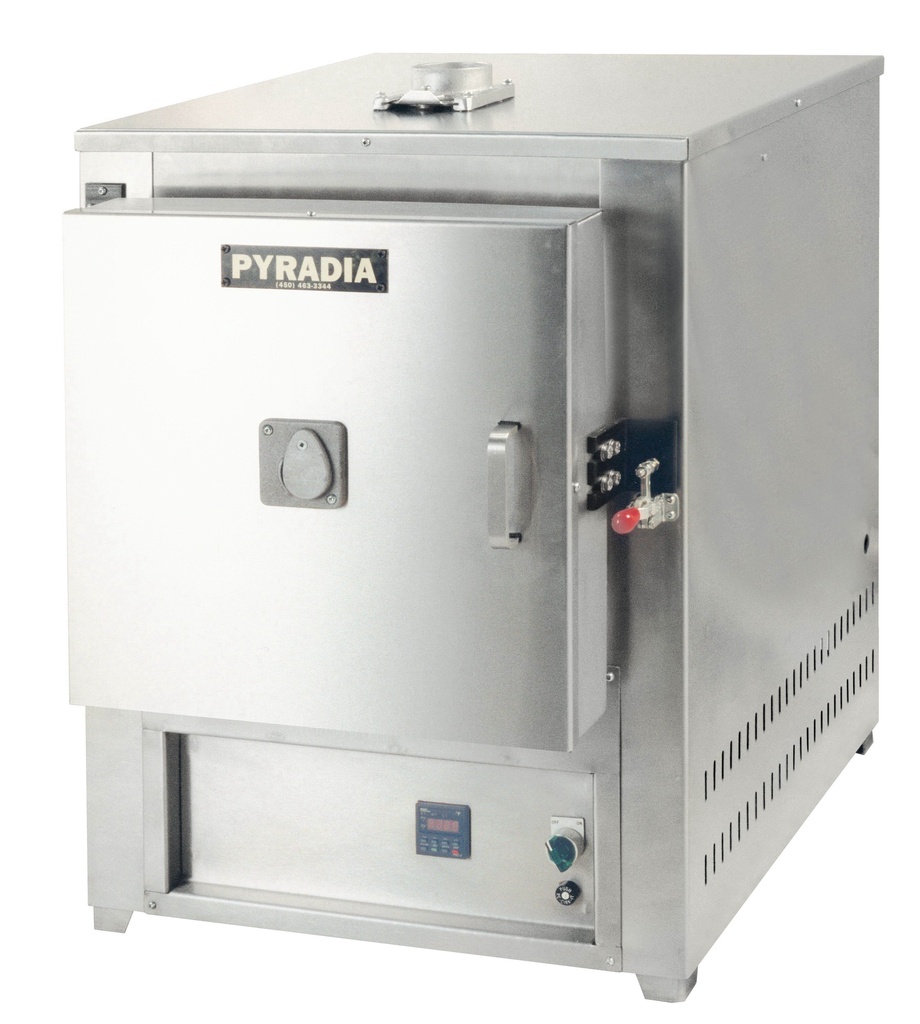

Industrial & Laboratory Tabletop Furnaces
Pyradia's tabletop furnaces integrate quality components and superior workmanship for maximum performance in a variety of industrial or laboratory applications, at temperatures as high as 2300°F (1260°C). These units provide the toughness required for industrial applications with the versatility needed for precision lab work.
Applications
- General heat treatment
- Research & laboratory work
- Pyrolysis process
- Investment casting
- Jewellery
Product Features
Heavy Duty Construction: Rugged furnace design incorporates quality hardware to a heavy gauge casing for increased durability in all types of processes. Tabletop units are available in either a green enamel finish or oxidation resistant stainless steel.
Long Service Life & Ease of Maintenance: Specially designed grooved bricks optimize heat transfer and fully support the FeCrAl heating elements for maximum life expectancy. The open coil heating elements are easily accessible for maintenance.
Quality Insulation: Highest quality low-density refractory bricks used in the construction of the chamber assure maximum insulation while minimizing heating or cooling cycles.
Superior Heat Distribution: Special attention is given to the distribution of the heating elements to assure optimal temperature uniformity throughout the furnace.
Accurate Temperature Control: Tabletop furnaces are equipped with state of the art ramp to set point digital microprocessor temperature controller.
Standard Characteristics
- Cabinet design & construction: Choice of enamel coated 16 gauge steel or (304) stainless steel
- Horizontal opening door: Heavily hinged door with a 180° opening
- Insulation: 4 1/2"/11cm pre-grooved refractory bricks (with the exception of the F50, which is 2 1/2")
- Temperature controller: Microprocessor temperature controller with auto tuning PID parameter offering ramp/soak program capability
- Heating elements: Low watt density FeCrAl heating elements
- Furnace chamber hearth plate: Furnace comes standard with a cordierite hearth plate
Available Options
- Vertical opening door: Counterbalanced guillotine lifting door with "zero weight positioning"
- Furnace floor stand: Heavy-duty furnace stand
- Ni-Cr heating elements: Special heating elements used in corrosive environment
- Programmable controller: 2 programs with 8 segments ramp/soak
- Solid state relay (SSR): For increased temperature accuracy and silent operation
- Adjustable exhaust vent: Slide gate located on top of furnace to vent corrosive vapors, also comes with a peephole in door
- High limit controller: Automatically shutdown heating elements when maximum temperature is exceeded
- Door safety switch: Automatic shut off heating elements when door is opened
- 3 phase 208-240V: Available for the F300/F400
- Heating elements in door: Offers greater heat distribution
Dimensions & Weight
| Models |
Inside Width (inches/cm) |
Inside Depth (inches/cm) |
Inside Height (inches/cm) |
Outside Width (inches/cm) |
Outside Depth (inches/cm) |
Outside Height (inches/cm) |
Weight (lbs/kgs) |
| F100/F100HP |
10.0/25 |
11.5/29 |
10.0/25 |
20.0/50 |
29.0/73 |
29.0/73 |
180/81 |
| F200/F200HP |
13.5/34 |
16.0/40 |
12.5/31 |
23.5/59 |
34.0/86 |
31.0/78 |
325/147 |
| F300/F300HP |
18.0/45 |
20.5/52 |
15.0/38 |
27.5/69 |
38.0/96 |
34.0/86 |
475/215 |
| F400HP |
13.5/34 |
29.5/75 |
15.0/38 |
23.5/59 |
46.0/116 |
34.0/86 |
1000/453 |
Standard Power Specifications
| Models |
Continuous Max. Temperature |
Intermittent Max. Temperature |
Voltage |
kW |
| F100 |
1800°F - 1000°C |
1800°F - 1000°C |
120/1/60 |
1.5 |
| F200 |
2000°F - 1100°C |
2300°F - 1260°C |
240/1/60 |
3.3 |
| F300 |
2000°F - 1100°C |
2300°F - 1260°C |
240/1/60 |
6.0 |
| F400 |
N/D |
N/D |
N/D |
N/D |
High Power Specifications
| Models |
Continuous Max. Temperature |
Intermittent Max. Temperature |
Voltage |
kW |
| F100HP |
2000°F - 1100°C |
2300°F - 1260°C |
240/1/60 |
3.0 |
| F200HP |
2000°F - 1100°C |
2300°F - 1260°C |
240/1/60 |
5.0 |
| F300HP |
2000°F - 1100°C |
2300°F - 1260°C |
240/1/60 |
10.0 |
| F400HP |
2000°F - 1100°C |
2300°F - 1260°C |
240/1/60 |
15.0 |
Note: The temperature curve is based on testing performed on furnaces without chimneys. For furnaces coming with chimney option, temperature ramp-up time will increase by 15%.
Guarantee
All Pyradia drop bottom ovens carry a one year guarantee.
