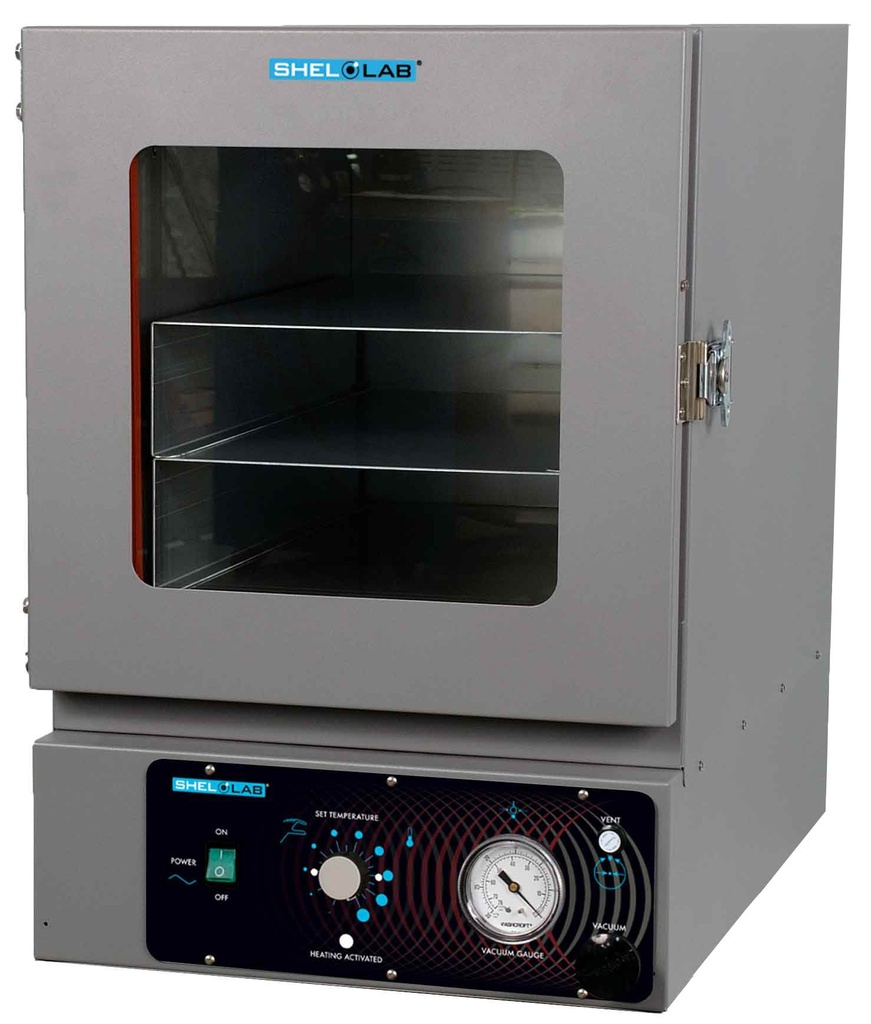

Vacuum Oven

https://www.labequip.com/web/image/product.template/33988/image_1920?unique=96dd046

This unit is durably constructed with seamless welds and strong bracing. All SHEL LAB vacuum ovens are built with a stainless steel chamber for exceptional durability. Our unique cross-flow ventilation forces inert gas to fill the entire chamber.

The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. A selection of gaskets (for specific applications) and a small bench top footprint increase the versatility of these ovens.

The SHEL LAB Vacuum Ovens are equipped with silicone gaskets. While these gaskets resist a wide variety of temperatures and pressures, they can breakdown in the presence of solvents and acids. For solvent applications, we recommend using Buna gaskets. For acidic applications, we recommend using Fluorosilicone or Viton® gaskets.

Shelving: 2 Supplied
Heat-up (min): 90 minutes at 150°C
Temperature Uniformity: ±3.0 at 60°C, ±9.0 at 120°C, ±13.0 at 200°C
Temperature Range: Ambient ±15°C to 210°C

Features include:
~ Cross Ventilation Air Flow Design
~ Achieve Impressive Vacuum Levels
~ Sizes Range from 0.6 - 9 Cu.Ft.
~ Built-in Overtemperature Protection
~ 24 Month Limited Warranty

The SHEL LAB Vacuum Ovens are equipped with silicone gaskets. While these gaskets resist a wide variety of temperatures and pressures, they can breakdown in the presence of solvents and acids. For solvent applications, it is recommended to use Buna gaskets. For acidic applications, it is recommended to us Fluorosilicone or Viton gaskets.

For more information about the gaskets offered, see the attached chart
Suitable vacuum pump is not included, but is available at additional cost

VACUUM PUMP REQUIRED: a pump with a pumping capacity of 4 cubic feet per minute is recommended.

2,490.00 2490.0 USD 2,490.00

1.00

Not Available For Sale

This combination does not exist.

General

Terms and Conditions



Stock Number N967
Model SVAC1E (0.6 cu.ft)
Manufacturer Sheldon (Shel Lab)
Product Brochure
Warranty 2 YEAR MANUFACTURER'S WARRANTY
