Compact JarTesters
For smaller labs where space is a limitation, compact Two- and Four-Paddle JarTesters offer all the same features as bench top Six-Paddle models. These compact units are constructed with the same quality and craftsmanship, built on a powder-coated steel uniframe chassis with stainless steel 1" x 3" paddles spaced six inches apart and adjustable to a maximum depth of nine inches. A fluorescent lamp floc illuminator is built into the jar tester base to provide soft, diffused lighting of samples being tested.
PB-980 Series Two-Paddle JarTester
The PB-980 Series Two-Paddle JarTester's small size makes it an ideal tool for chemical sales representatives to demonstrate the effectiveness of their coagulants. Available in Programmable and Standard versions.

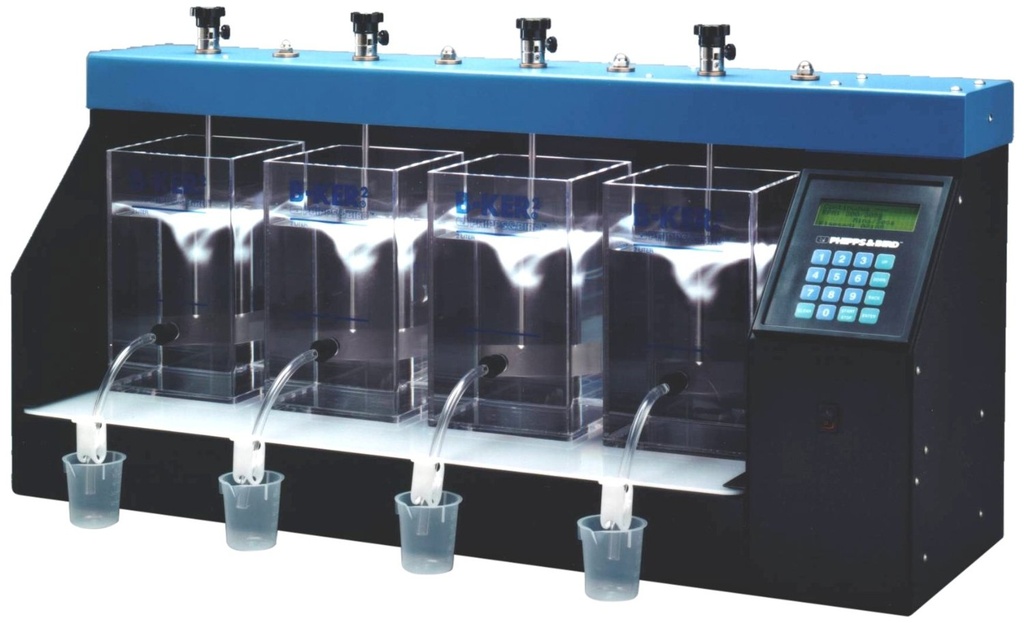

PB-750 and PB-950 Series Four-Paddle JarTesters
The PB-750 and PB-950 Series Four-Paddle JarTesters are perfect for the small lab with limited countertop space. Like the PB-980, they are available in Programmable and Standard versions.
Programmable Features
The Programmable feature elevates jar testing to a higher level of precision by utilizing four operator-programmable memory banks that offer virtually unlimited stirring capabilities. Each memory bank may be programmed with paddle speeds from 5 to 300 rpm in 1-rpm increments and run times from 1 second to 59 minutes, 59 seconds in 1-second increments. Turning off the stirrer does not erase the programmed information.
The stirrer may be run independently in any one of the memories, continuously at a selected speed or sequentially through the memory banks. Running it in sequential mode permits automatic transitioning from a fast mix/short run to a slow mix/long run, or any combination of speeds and times desired to replicate actual plant conditions and operation.
Included Components
Each JarTester comes complete with your choice of B-KER2 square, acrylic, 2-liter testing jars or 1-liter round glass beakers.
Specifications
| Feature |
Specification |
| Construction |
Powder coated galvaneal steel chassis
Stainless steel shafts & paddles
LED illumination modules |
| Power Requirements |
24VDC. 100 to 240VAC 50/60 Hz adapter (provided) |
| Operation |
Microprocessor-controlled; keypad input
Four operator-programmable memory banks
Operational speeds from 1 to 300 RPM |
| Compliance & Certifications |
CE (Documentation available upon request) and cTUVus |
| Warranty |
1 year, parts & labor |
| Country of Origin |
United States of America |
Shipping Dimensions
| Configuration |
Dimensions |
| 6-Station |
47" X 16" X 20" |
| 4-Station |
35" X 16" X 20" |
| 2-Station |
35" X 16" X 20" |
Shipping Weight
| Configuration |
Weight |
| 6-Station w/no beakers |
60 pounds |
| 6-Station w/glass beakers |
65 pounds |
| 6-Station w/B-KER2 Jars |
70 pounds |
| 4-Station w/no beakers |
47 pounds |
| 4-Station w/glass beakers |
50 pounds |
| 4-Station w/B-KER2 Jars |
54 pounds |
| 2-Station w/B-KER2 Jars |
41 pounds |
Ordering Information
| Catalog Number |
Description |
| 7790-900B |
6-Station w/no beakers |
| 7790-900 |
6-Station w/glass beakers |
| 7790-910 |
6-Station w/B-KER2 Jars |
| 7790-950B |
4-Station w/no beakers (PB-950 Series) |
| 7790-950 |
4-Station w/glass beakers (PB-950 Series) |
| 7790-960 |
4-Station w/B-KER2 Jars (PB-950 Series) |
| 7790-980 |
2-Station w/B-KER2 Jars (PB-980 Series) |
| 7790-750 |
PB-750 Series Four-Paddle Standard & Programmable JarTesters |
