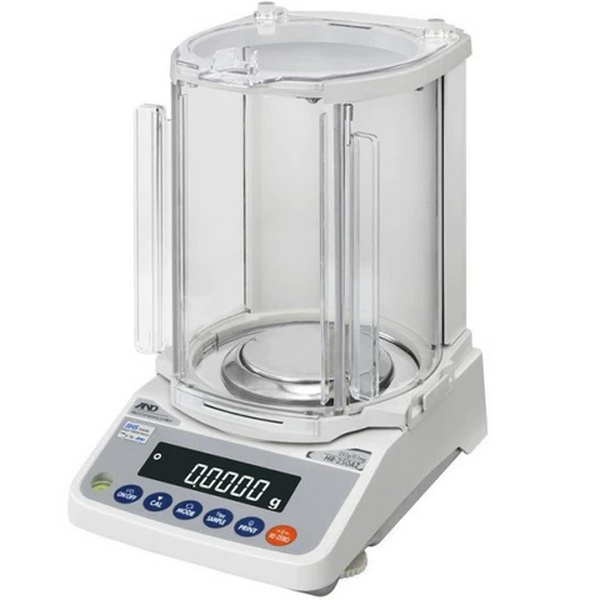

HR-A & HR-AZ Series Compact Analytical Balances
The HR-A Series Compact Analytical Balances deliver fast, accurate, and reliable performance built on A&D Super Hybrid Sensor (SHS) technology. The HR-AZ models feature highly reliable internal calibration with one-touch automatic operation to ensure consistent balance accuracy.
Model Overview
| Model |
Capacity |
Resolution |
Calibration |
| HR-100A |
102 g |
0.1 mg |
External |
| HR-100AZ |
102 g |
0.1 mg |
Internal/Ext. |
| HR-150A |
152 g |
0.1 mg |
External |
| HR-150AZ |
152 g |
0.1 mg |
Internal/Ext. |
| HR-250A |
252 g |
0.1 mg |
External |
| HR-250AZ |
252 g |
0.1 mg |
Internal/Ext. |
Primary Applications
- Laboratory
- Quality Control / QA
- Production
Suitable for Sensitive Environments
The rugged, shatterproof breeze break with anti-static coating makes the HR-A/AZ safe for challenging applications where contamination is a potential concern:
- Pharmaceutical / FDA
- Food / HACCP
Space-Saving Design
Rotary doors mean that the balance takes up no extra space when the doors are open. The HR-A Series is perfectly at home in the tight confines of glove boxes and fume hoods. Crowded academic lab benches are no problem: set-up 2 balances back-to-back. The top of the breeze break also pivots open (left or right), allowing easy access to beakers and flasks.
Ease of Use
The breeze break detaches in seconds even with heavy gloves, making cleaning easier and enabling top-loading operation. The 2-second stabilization time increases productivity by delivering fast results. The HR-A/AZ lets you perform frustration-free weighing down to a resolution of 0.1 mg.
Key Features
- Anti-static breeze break with rotary doors
- Ultimate in clarity with reverse back-lit display
- GLP/GMP/GCP/ISO compliant output
- Detaches in an instant even while wearing heavy gloves
- One-touch internal calibration on HR-AZ models
- Statistical Calculation Function, counting, % mode, user-defined units
Technical Specifications
| Parameter |
HR-100A/AZ |
HR-150A/AZ |
HR-250A/AZ |
| Weighing capacity |
102 g |
152 g |
252 g |
| Minimum weighing value |
0.1 mg |
| Repeatability (Standard Deviation) |
0.1 mg |
0 to 200 g: 0.1 mg
200 to 252 g: 0.2 mg |
| Linearity |
±0.2 mg |
±0.3 mg |
| Stabilization time (FAST setting under good conditions) |
Approx. 2 seconds* |
| Sensitivity drift |
±2 ppm/°C (10 to 30 °C/50 to 86 °F) |
| Operating environment |
5 to 40 °C (41 to 104 °F), 85% RH or less (no condensation) |
| Display refresh rate |
5 times/second or 10 times/second, selectable |
| Interface |
RS-232C standard |
| Weighing pan size |
Ø90 mm |
| External dimensions |
198 (W) × 294 (D) × 315 (H) mm / 8 (W) × 12 (D) × 12.4 (H) in |
| Power supply |
AC adapter |
| Power consumption |
Approx. 11 VA (supplied by the AC adapter) |
Model-Specific Parameters
| Parameter |
HR-A Models |
HR-AZ Models |
| Calibration |
External |
Internal |
| Clock and calendar function |
No |
Yes |
| Net weight |
3.5 kg / 7.8 lb |
3.9 kg / 8.9 lb |
Applicable Calibration Weight Values
| Model |
Weight Values (g) |
| HR-100A/AZ |
100, 50 |
| HR-150A/AZ |
150, 100, 50 |
| HR-250A/AZ |
250, 200 |
Display Modes
g, mg, oz, oz-t, ct, momme, dwt, grain, tael, tola, pieces (counting mode), % (percent mode), DS (density mode), user definable functions
Other Units of Measure
| Unit |
HR-100A/AZ Capacity |
HR-150A/AZ Capacity |
HR-250A/AZ Capacity |
Minimum Display |
| Ounce (oz) |
3.59 |
5.36 |
8.88 |
0.00001 |
| Troy Ounce (ozt) |
3.27 |
4.88 |
8.10 |
0.00001 |
| Carat (ct) |
510 |
760 |
1260 |
0.001 |
| Pennyweight (dwt) |
65.5 |
97.7 |
162.0 |
0.0001 |
| Momme (mom) |
27.2 |
40.5 |
67.2 |
0.0001 |
| Grain (GN) |
1574 |
2346 |
3889 |
0.002 |
Counting Mode
- Minimum unit mass: 0.1 mg
- Number of samples: 10, 25, 50 or 100 pieces
Percent Mode
- Minimum 100% reference mass: 10.0 mg
- Minimum 100% display: 0.01%, 0.1%, or 1% (depends on the reference mass stored)
Options
- FXi-02: Quick USB interface with cable
- FXi-08: Ethernet interface with WinCT-Plus software
- FXi-09: Built-in rechargeable battery
The FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
Accessories
- AD-1654: Density determination kit
- AD-1683: Static eliminator
- AD-1684: Electrostatic field meter
- AD-1687: Weighing environment logger
- AD-1688: Weighing data logger
- AD-1689: Tweezers for calibration weight
- AD-8121B: Muti-function printer
- AD-1192: Compact printer
- AD-8526: Serial/Ethernet converter
- AD-8920A: Remote display
- AD-8922A: Remote controller
- AX:073009456: Main unit clear protective cover
- AX-USB-2920-9P: Serial/USB converter
*The factory setting is MID, whose stabilization time is approx. 3 seconds.
