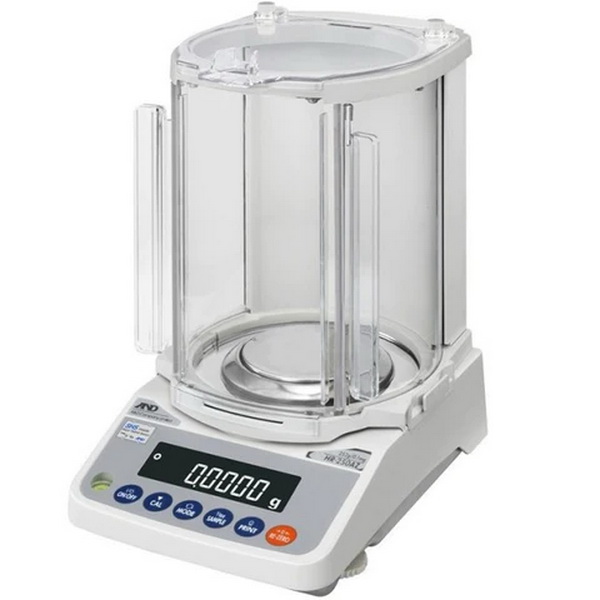

HR-A & HR-AZ Series Compact Analytical Balances
The HR-A and HR-AZ Series Compact Analytical Balances deliver fast, accurate, and reliable weighing performance in a space-saving design. Built on A&D Super Hybrid Sensor (SHS) technology, these balances provide consistent weighing results in laboratory, quality control/QA, and production environments. The HR-AZ models feature highly reliable internal calibration with one-touch automatic calibration for consistent accuracy.
Available Models
| Model |
Capacity |
Resolution |
Calibration |
| HR-100A |
102 g |
0.1 mg |
External |
| HR-100AZ |
102 g |
0.1 mg |
Internal/Ext. |
| HR-150A |
152 g |
0.1 mg |
External |
| HR-150AZ |
152 g |
0.1 mg |
Internal/Ext. |
| HR-250A |
252 g |
0.1 mg |
External |
| HR-250AZ |
252 g |
0.1 mg |
Internal/Ext. |
Key Features
- Rotary doors for space-efficient operation
- Breeze break top pivots left or right for easy access to flasks and beakers
- Detachable breeze break in seconds, even with heavy gloves
- Rugged, shatterproof breeze break with anti-static coating
- One-touch internal calibration on HR-AZ models
- 2-second stabilization time for increased productivity
- Ultimate clarity with reverse back-lit display
- Statistical calculation function, counting, % mode, user-defined units
- GLP/GMP/GCP/ISO compliant output
Space-Saving Design
Rotary doors ensure the balance requires no extra space when doors are open, making the HR-A Series ideal for tight confines such as glove boxes and fume hoods. The compact footprint allows for back-to-back setup of two balances on crowded benches. The pivoting breeze break top provides convenient access to beakers and flasks.
Suitable Environments
The anti-static, shatterproof breeze break makes the HR-A/AZ safe for sensitive applications where contamination is a concern:
- Pharmaceutical / FDA
- Food / HACCP
- Laboratory
- Quality Control / QA
- Production
Performance Specifications
| Specification |
HR-100A/AZ |
HR-150A/AZ |
HR-250A/AZ |
| Weighing capacity |
102 g |
152 g |
252 g |
| Minimum weighing value |
0.1 mg |
| Repeatability (Standard Deviation) |
0.1 mg |
0.1 mg |
0 to 200 g: 0.1 mg
200 to 252 g: 0.2 mg |
| Linearity |
±0.2 mg |
±0.3 mg |
| Stabilization time (FAST mode, good conditions) |
Approx. 2 seconds |
| Sensitivity drift |
±2 ppm/°C (10 to 30 °C/50 to 86 °F) |
| Operating environment |
5 to 40 °C (41 to 104 °F), 85% RH or less (no condensation) |
| Display refresh rate |
5 times/second or 10 times/second, selectable |
| Weighing pan size |
Ø90 mm |
| External dimensions |
198 (W) × 294 (D) × 315 (H) mm / 8 (W) × 12 (D) × 12.4 (H) in |
| Net weight (HR-A) |
3.5 kg / 7.8 lb |
| Net weight (HR-AZ) |
3.9 kg / 8.9 lb |
| Power consumption |
Approx. 11 VA (supplied by AC adapter) |
Calibration
| Model Type |
Calibration |
Clock and Calendar Function |
| HR-A |
External |
No |
| HR-AZ |
Internal |
Yes |
Applicable Calibration Weight Values
| Model |
Calibration Weights (g) |
| HR-100A, HR-100AZ |
100, 50 |
| HR-150A, HR-150AZ |
150, 100, 50 |
| HR-250A, HR-250AZ |
250, 200 |
Modes and Functions
Display Mode (Units of Measure)
g, mg, oz, oz-t, ct, momme, dwt, grain, tael, tola, pieces (counting mode), % (percent mode), DS (density mode), user definable functions
Counting Mode
- Minimum unit mass: 0.1 mg
- Number of samples: 10, 25, 50 or 100 pieces
Percent Mode
- Minimum 100% reference mass: 10.0 mg
- Minimum 100% display: 0.01%, 0.1%, or 1% (depends on the reference mass stored)
Other Units of Measure - Capacity and Minimum Display
| Unit |
HR-100A/AZ |
HR-150A/AZ |
HR-250A/AZ |
Minimum Display |
| Ounce (oz) |
3.59 |
5.36 |
8.88 |
0.00001 |
| Troy Ounce (ozt) |
3.27 |
4.88 |
8.10 |
0.00001 |
| Carat (ct) |
510 |
760 |
1260 |
0.001 |
| Pennyweight (dwt) |
65.5 |
97.7 |
162.0 |
0.0001 |
| Momme (mom) |
27.2 |
40.5 |
67.2 |
0.0001 |
| Grain (GN) |
1574 |
2346 |
3889 |
0.002 |
Interface
RS-232C standard
Optional Interfaces
- FXi-02 Quick USB interface with cable
- FXi-08 Ethernet interface with WinCT-Plus software
- FXi-09 Built-in rechargeable battery
The FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
Accessories
- AD-1654 Density determination kit
- AD-1683 Static eliminator
- AD-1684 Electrostatic field meter
- AD-1687 Weighing environment logger
- AD-1688 Weighing data logger
- AD-1689 Tweezers for calibration weight
- AD-8121B Multi-function printer
- AD-1192 Compact printer
- AD-8526 Serial/Ethernet converter
- AD-8920A Remote display
- AD-8922A Remote controller
- AX:073009456 Main unit clear protective cover
- AX-USB-2920-9P Serial/USB converter
