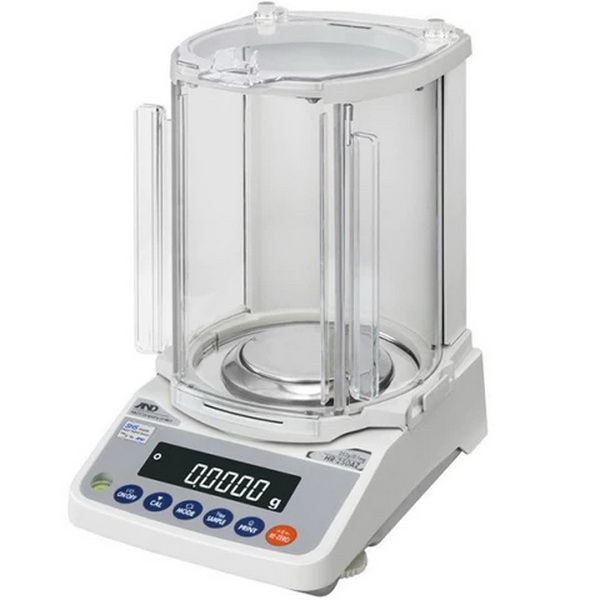

HR-A & HR-AZ Series Compact Analytical Balances
The HR-A and HR-AZ Series Compact Analytical Balances deliver fast, accurate, and reliable performance based on A&D Super Hybrid Sensor (SHS) technology. Proven in thousands of laboratories and production facilities worldwide, these balances provide consistent weighing results in a compact footprint. The HR-AZ models feature highly reliable internal calibration with one-touch automatic operation to ensure consistent accuracy.
Applications
- Laboratory
- Quality Control / QA
- Production
- Pharmaceutical / FDA
- Food / HACCP
Available Models
| Model |
Capacity |
Resolution |
Calibration |
| HR-100A |
102 g |
0.1 mg |
External |
| HR-100AZ |
102 g |
0.1 mg |
Internal/Ext. |
| HR-150A |
152 g |
0.1 mg |
External |
| HR-150AZ |
152 g |
0.1 mg |
Internal/Ext. |
| HR-250A |
252 g |
0.1 mg |
External |
| HR-250AZ |
252 g |
0.1 mg |
Internal/Ext. |
Key Design Features
Space-Saving Rotary Doors: The innovative rotary door design ensures the balance requires no extra space when doors are open, making it ideal for tight confines such as glove boxes and fume hoods. Multiple balances can be set up back-to-back on crowded lab benches. The breeze break top pivots left or right to allow easy access to flasks and beakers.
Quick Detachment Breeze Break: The breeze break detaches in seconds, even while wearing heavy gloves, for easier cleaning and top-loading operation. The rugged, shatterproof breeze break features anti-static coating for safe use in challenging applications where contamination is a concern.
High-Speed Operation: The 2-second stabilization time increases productivity by delivering fast results with frustration-free weighing down to 0.1 mg resolution.
Functional Capabilities
- Ultimate clarity with reverse back-lit display
- GLP/GMP/GCP/ISO compliant output
- One-touch internal calibration on HR-AZ models
- Statistical calculation function
- Counting mode
- Percent mode
- User-defined units
Complete Specifications
| Parameter |
HR-100A / HR-100AZ |
HR-150A / HR-150AZ |
HR-250A / HR-250AZ |
| Weighing capacity |
102 g |
152 g |
252 g |
| Minimum weighing value |
0.1 mg |
0.1 mg |
0.1 mg |
| Repeatability (Standard Deviation) |
0.1 mg |
0.1 mg |
0 to 200 g: 0.1 mg
200 to 252 g: 0.2 mg |
| Linearity |
±0.2 mg |
±0.2 mg |
±0.3 mg |
| Stabilization time (FAST mode) |
Approx. 2 seconds |
| Sensitivity drift |
±2 ppm/°C (10 to 30 °C/50 to 86 °F) |
| Operating environment |
5 to 40 °C (41 to 104 °F), 85% RH or less (no condensation) |
| Display refresh rate |
5 times/second or 10 times/second, selectable |
| Weighing pan size |
Ø90 mm |
| External dimensions |
198 (W) × 294 (D) × 315 (H) mm / 8 (W) × 12 (D) × 12.4 (H) in |
| Net weight (HR-A) |
3.5 kg / 7.8 lb |
| Net weight (HR-AZ) |
3.9 kg / 8.9 lb |
| Power consumption |
Approx. 11 VA (supplied by the AC adapter) |
| Interface |
RS-232C standard |
Calibration
| Feature |
HR-A Models |
HR-AZ Models |
| Calibration type |
External |
Internal |
| Clock and calendar function |
No |
Yes |
| Model |
Applicable Calibration Weight Values (g) |
| HR-100A / HR-100AZ |
100, 50 |
| HR-150A / HR-150AZ |
150, 100, 50 |
| HR-250A / HR-250AZ |
250, 200 |
Display Modes and Units of Measure
g, mg, oz, oz-t, ct, momme, dwt, grain, tael, tola, pieces (counting mode), % (percent mode), DS (density mode), user definable functions
| Unit |
Capacity (HR-100A/AZ) |
Capacity (HR-150A/AZ) |
Capacity (HR-250A/AZ) |
Minimum Display |
| Ounce (oz) |
3.59 |
5.36 |
8.88 |
0.00001 |
| Troy Ounce (ozt) |
3.27 |
4.88 |
8.10 |
0.00001 |
| Carat (ct) |
510 |
760 |
1260 |
0.001 |
| Pennyweight (dwt) |
65.5 |
97.7 |
162.0 |
0.0001 |
| Momme (mom) |
27.2 |
40.5 |
67.2 |
0.0001 |
| Grain (GN) |
1574 |
2346 |
3889 |
0.002 |
Counting Mode
- Minimum unit mass: 0.1 mg
- Number of samples: 10, 25, 50 or 100 pieces
Percent Mode
- Minimum 100% reference mass: 10.0 mg
- Minimum 100% display: 0.01%, 0.1%, or 1% (depends on the reference mass stored)
Options
- FXi-02: Quick USB interface with cable
- FXi-08: Ethernet interface with WinCT-Plus software
- FXi-09: Built-in rechargeable battery
The FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
Accessories
- AD-1654: Density determination kit
- AD-1683: Static eliminator
- AD-1684: Electrostatic field meter
- AD-1687: Weighing environment logger
- AD-1688: Weighing data logger
- AD-1689: Tweezers for calibration weight
- AD-8121B: Multi-function printer
- AD-1192: Compact printer
- AD-8526: Serial/Ethernet converter
- AD-8920A: Remote display
- AD-8922A: Remote controller
- AX:073009456: Main unit clear protective cover
- AX-USB-2920-9P: Serial/USB converter
