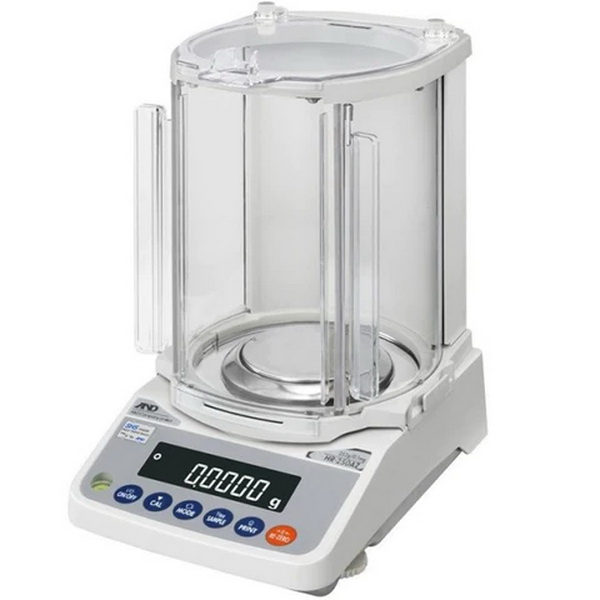

HR-A & HR-AZ Compact Analytical Balances
The HR-A and HR-AZ Series Compact Analytical Balances deliver fast, accurate, and reliable performance based on A&D Super Hybrid Sensor (SHS) technology. These balances provide consistent weighing results in laboratory, quality control, QA, and production environments while maintaining a compact footprint ideal for space-constrained applications.
Model Overview
| Model |
Capacity |
Resolution |
Calibration |
| HR-100A |
102 g |
0.1 mg |
External |
| HR-100AZ |
102 g |
0.1 mg |
Internal/External |
| HR-150A |
152 g |
0.1 mg |
External |
| HR-150AZ |
152 g |
0.1 mg |
Internal/External |
| HR-250A |
252 g |
0.1 mg |
External |
| HR-250AZ |
252 g |
0.1 mg |
Internal/External |
Space-Saving Design
The rotary door design ensures no additional space is required when doors are open, making these balances ideal for glove boxes, fume hoods, and crowded laboratory benches. Multiple balances can be set up back-to-back for efficient use of limited bench space. The breeze break top pivots left or right to allow easy access to flasks and beakers.
Enhanced Productivity
The breeze break detaches in seconds, even while wearing heavy gloves, simplifying cleaning and enabling top-loading operation. With an approximately 2-second stabilization time when set to FAST mode under good environmental conditions, the HR-A/AZ delivers frustration-free weighing down to 0.1 mg resolution.
Key Features
- Anti-static breeze break with rotary doors
- Rugged, shatterproof breeze break construction
- One-touch internal calibration on HR-AZ models
- Reverse back-lit display for ultimate clarity
- GLP/GMP/GCP/ISO compliant output
- Statistical calculation function
- Counting mode and percent mode
- User-defined units capability
- Detachable breeze break for easy cleaning
Applications
- Pharmaceutical / FDA environments
- Food / HACCP applications
- Laboratory research
- Quality Control / QA
- Production facilities
- Sensitive environments where contamination is a concern
Technical Specifications
| Parameter |
HR-100A/AZ |
HR-150A/AZ |
HR-250A/AZ |
| Weighing capacity |
102 g |
152 g |
252 g |
| Minimum weighing value |
0.1 mg |
| Repeatability (Standard Deviation) |
0.1 mg |
0.1 mg |
0 to 200 g: 0.1 mg
200 to 252 g: 0.2 mg |
| Linearity |
±0.2 mg |
±0.2 mg |
±0.3 mg |
| Stabilization time (FAST mode) |
Approx. 2 seconds |
| Sensitivity drift |
±2 ppm/°C (10 to 30 °C/50 to 86 °F) |
| Calibration - HR-A models |
External |
| Calibration - HR-AZ models |
Internal |
| Clock and calendar - HR-A |
No |
| Clock and calendar - HR-AZ |
Yes |
| Operating environment |
5 to 40 °C (41 to 104 °F), 85% RH or less (no condensation) |
| Display refresh rate |
5 times/second or 10 times/second, selectable |
| Interface |
RS-232C standard |
| Applicable calibration weight values (g) |
100, 50 |
150, 100, 50 |
250, 200 |
| Weighing pan size |
Ø90 mm |
| External dimensions |
198 (W) × 294 (D) × 315 (H) mm / 8 (W) × 12 (D) × 12.4 (H) in |
| Net weight - HR-A models |
3.5 kg / 7.8 lb |
| Net weight - HR-AZ models |
3.9 kg / 8.9 lb |
| Power supply |
AC adapter |
| Power consumption |
Approx. 11 VA (supplied by the AC adapter) |
Display Modes (Units of Measure)
g, mg, oz, oz-t, ct, momme, dwt, grain, tael, tola, pieces (counting mode), % (percent mode), DS (density mode), user definable functions
Additional Units of Measure
| Unit |
HR-100A/AZ Capacity |
HR-150A/AZ Capacity |
HR-250A/AZ Capacity |
Minimum Display |
| Ounce (oz) |
3.59 |
5.36 |
8.88 |
0.00001 |
| Troy Ounce (ozt) |
3.27 |
4.88 |
8.10 |
0.00001 |
| Carat (ct) |
510 |
760 |
1260 |
0.001 |
| Pennyweight (dwt) |
65.5 |
97.7 |
162.0 |
0.0001 |
| Momme (mom) |
27.2 |
40.5 |
67.2 |
0.0001 |
| Grain (GN) |
1574 |
2346 |
3889 |
0.002 |
Counting Mode
- Minimum unit mass: 0.1 mg
- Number of samples: 10, 25, 50 or 100 pieces
Percent Mode
- Minimum 100% reference mass: 10.0 mg
- Minimum 100% display: 0.01%, 0.1%, or 1% (depends on the reference mass stored)
Options
- FXi-02: Quick USB interface with cable
- FXi-08: Ethernet interface with WinCT-Plus software
- FXi-09: Built-in rechargeable battery
Note: The FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
Accessories
- AD-1654: Density determination kit
- AD-1683: Static eliminator
- AD-1684: Electrostatic field meter
- AD-1687: Weighing environment logger
- AD-1688: Weighing data logger
- AD-1689: Tweezers for calibration weight
- AD-8121B: Multi-function printer
- AD-1192: Compact printer
- AD-8526: Serial/Ethernet converter
- AD-8920A: Remote display
- AD-8922A: Remote controller
- AX:073009456: Main unit clear protective cover
- AX-USB-2920-9P: Serial/USB converter
