Mechanical Grease Workers
Professional grease working equipment designed for worked penetration and prolonged worked penetration tests to determine the consistency of lubricating greases. Available in mechanical single-unit, mechanical double-unit, and manually operated configurations to suit different testing requirements and laboratory workflows.
Mechanical Models

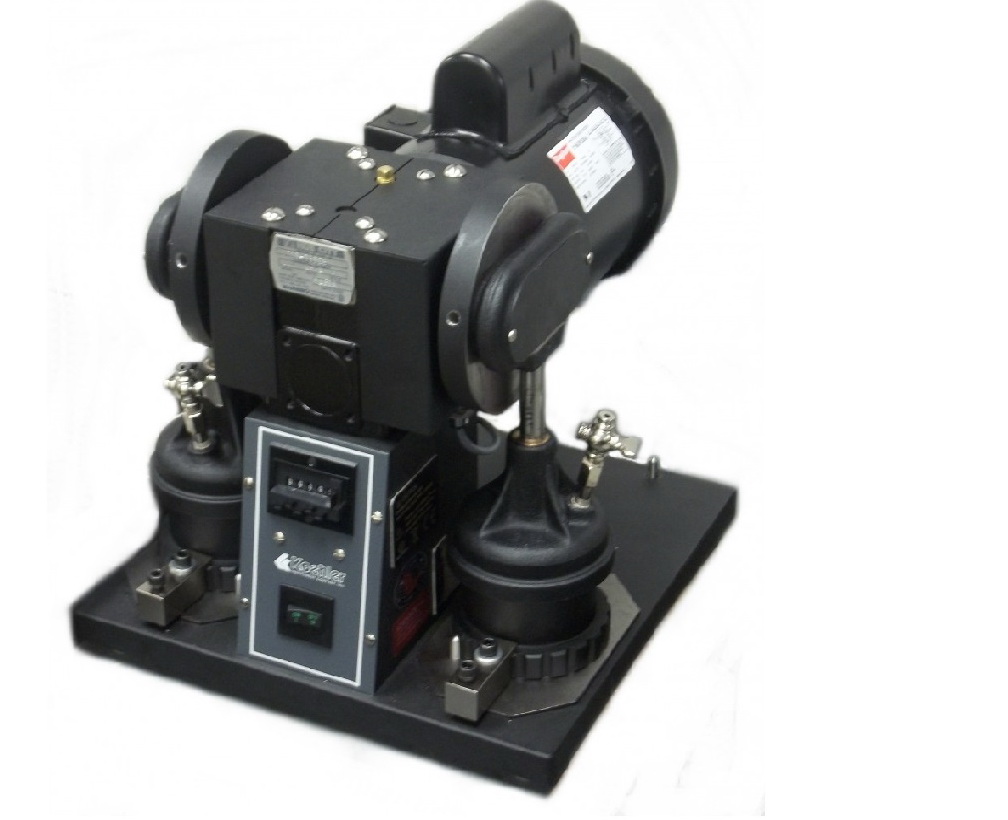

Mechanical grease workers feature single or dual steel ASTM grease workers mounted on a sturdy base and driven by a powerful gear reduction motor. The equipment meets ASTM specifications for stroke length and rate. A presetting electronic counter automatically shuts off the drive motor after any desired number of strokes up to 99,999. Steel grease workers include threaded cup and cover, and steel plunger plate with shaft and handle that connects to eccentric cam on drive unit. Spring loaded tightening clamps hold grease workers securely on base, and steel pins in base facilitate disassembly of grease workers after testing.
Manually Operated Model
The hand lever operated grease working machine is designed for short duration worked penetration tests on lubricating greases. This model consists of one steel ASTM grease worker with hand lever mechanism mounted on a sturdy steel base. Spring loaded tightening clamps hold grease worker securely on base, and steel pins in hand lever upright support facilitate disassembly of grease worker. Base plate is drilled at corners to allow for bolting to table top.
Technical Specifications
| Parameter |
Specification |
| Standards Compliance |
ASTM D217, D4950; IP 50; ISO 2137; DIN 51804; FTM 791-311, 791-313* |
| Drive Motor (Single-Unit) |
Fan cooled gear reduction type, 1⁄3hp |
| Drive Motor (Double-Unit) |
Fan cooled gear reduction type, 1⁄2hp |
| Electrical (115V Model) |
115V 60Hz, Single Phase, 3A |
| Electrical (220-240V Model) |
220-240V 50/60Hz, Single Phase, 1.5A |
| Included Accessories |
Mechanical ASTM Steel Grease Worker (1 or 2) |
*FTM 791-313 requires substitution of 270-hole grease worker (K18030)
Dimensions and Weight
| Model |
Dimensions l×w×h, in. (cm) |
Net Weight |
Shipping Weight |
| Mechanical Single-Unit |
10×13½×14¾ (25×34×37) |
106 lbs (48.1 kg) |
141 lbs (64.0 kg) |
| Mechanical Double-Unit |
14×13½×14¾ (36×34×37) |
139½ lbs (63.3 kg) |
171 lbs (77.6 kg) |
| Manually Operated |
30×10×15½ (76×25×39) |
21 lbs (9.6 kg) |
28 lbs (12.7 kg) |
Shipping Dimensions: Mechanical: 4.2 Cu. ft.; Manual: 2.7 Cu. ft.
Available Models
| Catalog No. |
Description |
| K18100 |
Single-Unit Model, 115V 60Hz |
| K18110 |
Single-Unit Model, 220-240V 50Hz |
| K18119 |
Single-Unit Model, 220-240V 60Hz |
| K18190 |
Double-Unit Model, 115V 60Hz |
| K18191 |
Double-Unit Model, 220-240V 50Hz |
| K18192 |
Double-Unit Model, 220-240V 60Hz |
| K18000 |
Manually Operated Model |
Accessories
| Catalog No. |
Description |
| K18020 |
Steel Grease Worker - Complete per ASTM specifications. Consists of cup, cover, plunger and vent cock. |
| K18030 |
Steel Grease Worker - Similar to K18020, but with 270-hole plunger plate per FTM 791-313 (AN-G-15) specifications. |
| K18028 |
Cover Assembly - Replacement cover assembly for steel grease worker. Includes vent cock, plunger plate, shaft and handle. |
| K18029 |
Grease Cup |
| K18021 |
Overflow Ring - Collects displaced grease during penetration measurements. |
| K18022 |
Dial Thermometer - Inserts in petcock of steel grease worker. Supplied with adapter. |
| K18023 |
Blank Lid, with seal - For ASTM Steel Grease Worker. Use when heating samples prior to test. |
