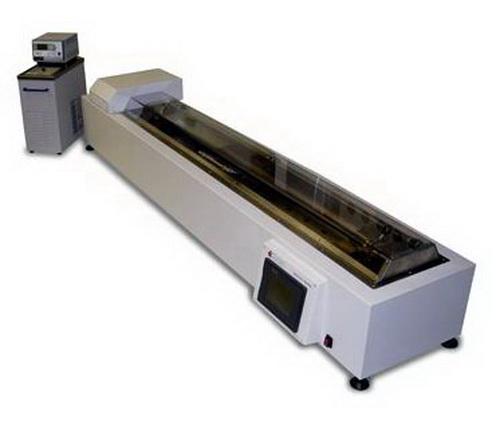

Semi-Automatic Ductility Testing Machine
The Semi-Automatic Ductility Testing Machine is designed for testing the ductility and elastic recovery of bituminous materials. Available in both Standard and Constant Temperature models, the machine features a 6" LCD touch screen control panel that allows users to select between ductility or recovery test methods. The custom menu enables input of desired speed and time parameters. During testing, the distance traveled by the specimen is displayed, and a simple touch of the screen records the distance traveled upon breakage of the briquet. A motor jogging feature permits locking of the sample carriage without additional movement after the briquet sample is loaded.
Key Features
- Conforms to ASTM D113, D6084 and related specifications
- Standard and Constant Temperature Models available
- Capable of testing up to 3 samples simultaneously
- 6" LCD Touch Screen Control Panel
- Pre-programmed with Ductility, Recovery, and Custom test methods
- Maximum travel length of 150 cm
- Variable traction speed from 0.25 to 7.0 cm/min
- Constant Temperature model equipped with Lexan Cover for enhanced temperature stability
Test Method
Determines the ductility of a bituminous material by measuring the distance in which a sample will elongate before breaking when two ends of a briquet specimen of the test material are pulled apart at a specified speed and temperature. Elastic Recovery is determined by pulling the briquet specimen to a specified distance at a specified speed and temperature. The briquet is then cut and the distance in which it takes for the two halves to reconnect is used to determine the elastic recovery of the test sample.
Technical Specifications
| Parameter |
Specification |
| Capacity |
3 molds with samples |
| Maximum Travel Length |
150 cm |
| Standard Traction Speed |
5 cm/min |
| Variable Traction Speed |
0.25 to 7.0 cm/min |
| Timer |
1-999 min |
Standards Compliance
Conforms to the specifications of: ASTM D113, D5892, D6084, P226; IP 32, 516; DIN 52013, EN 13398; NF T 66-006; AASHTO T 51, T 301; JIS K2207; ANS A37.11; Federal Specification SS-R-406C; USDA Method 5 (BUL 12-16)
Physical Dimensions and Weight
| Model |
Dimensions (LxWxH) |
Net Weight |
| Standard Model |
86¼x19x16 in. (219.1 x 48.3 x 40.6 cm) |
200 lbs (91.7 kg) |
| Constant Temperature Model |
86¼x19x16 in. (219.1 x 48.3 x 40.6 cm) |
217 lbs (98.5 kg) |
| Circulation Bath |
15¾x8¼x22½ in. (219.1 x 48.3 x 40.6 cm) |
50 lbs (22.7 kg) |
Included Accessories
Standard Model:
- Standard Mold (3)
- Base Plate
Constant Temperature Model:
- Circulation Bath
- Remote Temp. Probe, 10 ft. length
- Connection Tubing
- Standard Mold (3)
- Base Plate
- Lexan Cover
Electrical Requirements
| Model |
Voltage/Frequency |
| 115V 60Hz |
115V 60Hz |
| 220-240V 50Hz |
220-240V 50Hz |
| 220-240V 60Hz |
220-240V 60Hz |
Shipping Information
| Model |
Shipping Weight |
Dimensions |
| Standard Model |
350 lbs (159 kg) |
92¾x 25¼x 23¼ in. (235.6 x 64.1 x 59.1 cm) |
| Constant Temperature Model |
368 lbs (167 kg) |
92¾x 25¼x 23¼ in. (235.6 x 64.1 x 59.1 cm) |
| Circulation Bath |
74 lbs (34 kg) |
22 x 10½ x 26½ in. (55.9 x 26.7 x 67.3 cm) |
Available Models
| Catalog No. |
Description |
| K80050 |
Semi-Automatic Standard Ductility Testing Machine, 115V/220-240V 50/60Hz |
| K80060 |
Semi-Automatic Constant Temperature Ductility Testing Machine, 115V 60Hz |
| K80068 |
Semi-Automatic Constant Temperature Ductility Testing Machine, 220-240V 60Hz |
| K80069 |
Semi-Automatic Constant Temperature Ductility Testing Machine, 220-240V 50Hz |
Available Accessories
| Catalog No. |
Description |
| K80012 |
Standard Mold |
| K80041 |
Recovery Mold |
| K80013 |
Base Plate |
| 250-000-63F |
ASTM 63F Thermometer, Range: 18 to 89°F |
| 250-000-63C |
ASTM 63C Thermometer, Range: -8 to 32°C |
| K80050-SFW |
Semi-Automatic Ductility Software |
