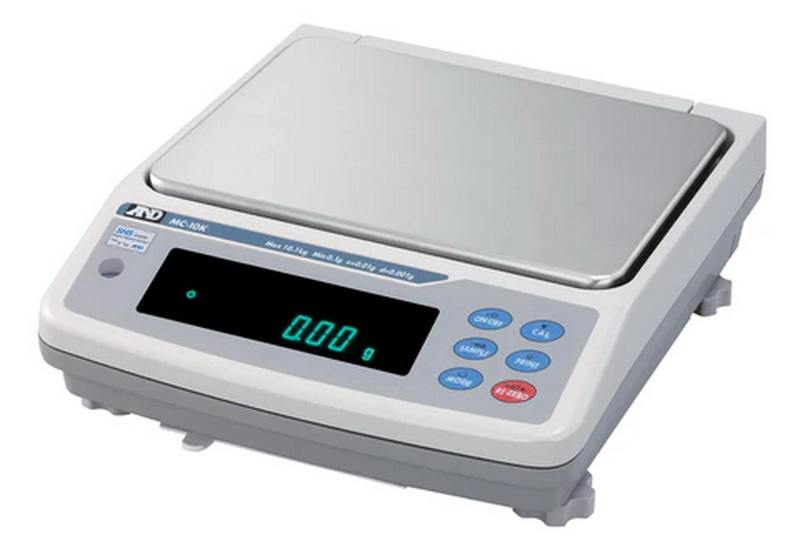

MC-10K Mass Comparator
The MC-10K is a high-resolution mass comparator designed for precise mass measurement and comparison. With a capacity of 10.1 kg and 0.001 g readability, this instrument provides extended resolution for measuring minute weight changes with heavy objects or containers. Equipped with specialized stabilizing functions, the MC-10K responds effectively to environmental disturbances while maintaining exceptional accuracy.
Key Capabilities
- Enhanced stabilizing filter that copes with drafts and vibrations for smooth, accurate mass comparison
- Simplified calibration using internal mass with one key press when environmental changes occur
- Internal mass value can be corrected as necessary
- IP65 protection rating for demanding environments
- Super Hybrid Sensor technology
- VFD display for clear readability
- GLP compliant data output
- Auto power ON and OFF functions
- Clock and calendar functionality
- Data memory function
Typical Applications
The MC-10K serves diverse measurement needs across industrial and laboratory settings:
- Management of liquids: resist inks on flat panels, coating materials on silicon wafers, solder pastes and sealing materials on electronic parts
- Management of powders: medicines in pharmaceutical manufacturing, discharges from feeders, wear volumes of metallic materials, cutting dust on mechanical parts, particles caught by filters
- Management of gases: fill ratio of hydrogen gas, gasified components
- Production line weighing as precision check-weighing sensors with wider ranges
Technical Specifications
| Parameter |
Specification |
| Weighing capacity |
10.1 kg |
| Minimum weighing value |
0.001 g |
| Repeatability (standard deviation) |
0.005 g (for 10 kg)
0.004 g (for 5 kg) |
| Linearity |
±0.03 g |
| Sensitivity drift (10 to 30°C / 50 to 86°F) |
±2 ppm / °C |
| Accuracy immediately after internal calibration |
±0.15 g |
| Operating environment |
5°C to 40°C (41°F to 104°F), 85%RH or less (no condensation) |
| Display refresh rate |
5 times/second or 10 times/second |
| Standard interface |
RS-232C |
| Weighing pan size |
210 x 210 mm |
| External dimensions |
300 (W) x 355 (D) x 111 (H) mm |
| Net weight |
Approx. 9.3 kg |
| Power consumption |
Approx. 11 VA (supplied to the AC adapter) |
Display Modes
Gram, kilogram, ounce, pound, pound-ounce, troy ounce, metric carat, momme, pennyweight, grain, counting mode, percent mode, density mode, and a user-programmable unit
Integrated Functions
- Internal calibration for simplified accuracy verification
- Comparator function for mass comparison operations
- Percentage function for ratio measurements
- Counting with ACAI (Automatic Counting Accuracy Improvement)
- Quick USB connectivity
- Accumulation function
- Underhook capability for below-balance weighing
Optional Accessories for MC-10K
| Part Number |
Description |
| GX-04K |
Comparator output with a buzzer/RS-232C/Current loop output |
| GX-06K |
Analog output/Current loop output |
| GX-07K |
Waterproof RS-232C cable (25P-9P, 5 m) |
| GXK-012 |
Animal weighing pan |
| GXK-015 |
Carrying case |
| AX-MC10K/30KPAN |
Auto-centering pan (corrects eccentric loading automatically) |
Compatible Accessories
| Part Number |
Description |
| AD-1602-E2 |
Calibration masses, OIML class E2 (selectable from 50 g to 20 kg) |
| AD-1602-F1 |
Calibration masses, OIML class F1 (selectable from 50 g to 20 kg) |
| AD-1682 |
Rechargeable battery unit |
| AD-1683 |
Static eliminator |
| AD-1684 |
Electrostatic fieldmeter |
| AD-1687 |
Weighing environment logger |
| AD-1688 |
Weighing data logger |
| AD-1689 |
Tweezers for calibration mass |
| AD-1691 |
Weighing environment analyzer |
| AD-8121B |
Compact printer |
| AD-8526 |
Serial/Ethernet converter |
| AD-8527 |
Quick USB adapter |
| AD-8920A |
Remote display |
| AD-8922A |
Remote controller (enables operations without shaking the balance) |
| AX-SW128 |
Foot switch |
| AX-USB-25P |
Serial/USB converter |
Recommended Measurement Ranges
The MC-10K is suitable for mass comparison according to OIML classes:
| OIML Class |
Nominal Values |
| F1 |
1 mg to 100 g |
| F2 |
1 mg to 500 g, 1 kg to 10 kg |
| M1 |
1 mg to 10 kg |
| M2 |
1 mg to 10 kg |
Note: Only one of GX-04K, GX-06K or the standard RS-232C can be used. The MC-10K is not IP65 compliant with these options. Repeatability values apply when the auto-centering pan or an automatic weight loader is used under good environmental conditions. Accuracy values apply immediately after internal calibration performed under good environmental conditions for the weighing capacities.
