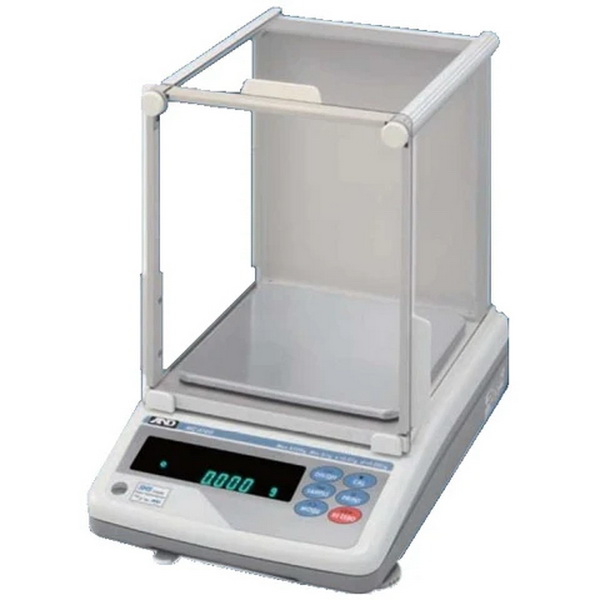

MC-10K Mass Comparator
The MC-10K is a high-resolution mass comparator designed for precision weighing applications requiring accurate measurement of minute weight changes with heavier objects. This ISO 9000 certified balance provides extended resolution beyond standard balances of comparable capacity, making it ideal for demanding laboratory and industrial weighing tasks.
Key Features
- Enhanced stabilizing filter to cope with drafts and vibrations
- Internal calibration mass with simplified one-key-press calibration
- Super Hybrid Sensor technology
- VFD display with clear readability
- GLP compliant operation
- RS-232C interface standard
- Data memory function
- Auto power ON/OFF
- Clock and calendar
- Comparator function
- Percentage function
- Animal weighing mode
- Counting with ACAI
- Underhook capability
Applications
Management of Powders
- Medicines in pharmaceutical manufacturing from full flow to minute flow
- Discharges (losses in weight) from feeders
- Wear volumes of metallic materials
- Cutting dust (contaminants) left on mechanical parts
- Particles caught by filters
Management of Liquids
- Resist inks on flat panels (glass)
- Coating materials on silicon wafers
- Moisture contents of catalysts
- Solder pastes and sealing materials on electronic parts
- Resins used for LED lenses
- Surface materials on optical lenses
- Grease in miniature bearings for hard disks
Management of Gases
- Fill ratio of hydrogen gas
- Gasified components
Production Line Weighing
- Precision check-weighing sensors with wider ranges
Technical Specifications
| Parameter |
Specification |
| Weighing capacity |
10.1 kg |
| Minimum weighing value |
0.001 g |
| Repeatability (standard deviation) |
0.005 g (for 10 kg)
0.004 g (for 5 kg) |
| Linearity |
±0.03 g |
| Sensitivity drift (10 to 30°C / 50 to 86°F) |
±2 ppm / °C |
| Accuracy immediately after internal calibration |
±0.15 g |
| Operating environment |
5°C to 40°C (41°F to 104°F), 85%RH or less (no condensation) |
| Display refresh rate |
5 times/second or 10 times/second |
| Weighing pan size |
210 x 210 mm |
| External dimensions |
300 (W) x 355 (D) x 111 (H) mm |
| Net weight |
Approx. 9.3 kg |
| Power consumption |
Approx. 11 VA (supplied to the AC adapter) |
| Standard interface |
RS-232C |
Display Modes
Gram, ounce, pound, pound-ounce, troy ounce, metric carat, momme, pennyweight, grain, counting mode, percent mode, density mode, and a user-programmable unit. Either tael (Singapore/HK jewelry/Taiwan) or tola can be added upon request.
Recommended Mass Ranges by OIML Class
| OIML Class |
Nominal Values |
| F1 |
100 mg to 5 kg |
| F2 |
200 mg to 10 kg |
| M1 |
500 mg to 20 kg |
| M2 |
1 g to 50 kg |
Optional Accessories for MC-10K
Interface Options
- GX-04K: Comparator output with a buzzer/RS-232C/Current loop output (only one of GX-04K, GX-06K or the standard RS-232C can be used; MC-10K not IP65 compliant with this option)
- GX-06K: Analog output/Current loop output (only one of GX-04K, GX-06K or the standard RS-232C can be used; MC-10K not IP65 compliant with this option)
- GX-07K: Waterproof RS-232C cable (25P-9P, 5 m)
Accessories
- GXK-012: Animal weighing pan
- GXK-015: Carrying case
- AX-MC10K/30KPAN: Auto-centering pan (corrects eccentric loading automatically by bringing the mass to the center)
General Accessories
- AD-1602-E2: Calibration masses, OIML class E2 (selectable from 50 g to 20 kg)
- AD-1602-F1: Calibration masses, OIML class F1 (selectable from 50 g to 20 kg)
- AD-1682: Rechargeable battery unit
- AD-1683: Static eliminator (instantly neutralizes charged objects such as the operator's clothes to ensure stable weighing)
- AD-1684: Electrostatic fieldmeter
- AD-1687: Weighing environment logger
- AD-1688: Weighing data logger
- AD-1689: Tweezers for calibration mass
- AD-1691: Weighing environment analyzer
- AD-8121B: Compact printer
- AD-8526: Serial/Ethernet converter
- AD-8527: Quick USB adapter
- AD-8920A: Remote display
- AD-8922A: Remote controller (enables operations without directly touching and consequently shaking the balance)
- AX-SW128: Foot switch
- AX-USB-25P: Serial/USB converter
