Reid Vapor Pressure Gauges
Ruggedly constructed Bourdon type gauges designed specifically for Reid Vapor Pressure testing applications. These precision instruments feature heavy duty rotary brushed stainless steel movement housed in a lightweight aluminum case with corrosion-resistant finish. Each gauge includes a micrometer adjustable pointer for precise measurement, a blow-out disc for safety, and 1/4" NPT male thread connection. The heavy duty brass non-sparking handle ensures safe operation in petroleum testing environments.
Key Features
- Conforming to ASTM D323, D1267 and related specifications
- Dual psi/kPa scale on a 4½" diameter dial
- Accurate to within 0.5% of scale range
- Micrometer adjustable pointer
Available Ranges
| Catalog No. |
Range psi/kPa |
Intervals psi/kPa |
Graduations psi/kPa |
| 311-005-004 |
0-5/35 |
0.5/5 |
0.05/0.2 |
| 311-015-002 |
0-15/100 |
1.0/10 |
0.1/1.0 |
| 311-030-002 |
0-30/200 |
5.0/20 |
0.5/2.0 |
| 311-060-002 |
0-60/400 |
5.0/50 |
0.2/2.5 |
| 311-100-002 |
0-100/700 |
10/50 |
0.5/2.5 |
| 311-250-001 |
0-250/1750 |
25/100 |
1.0/20 |
| 311-600-003 |
0-600/4200 |
50/250 |
2.0/25 |
Overview
Vapor pressure is a critical factor in the handling and performance of liquid petroleum and liquefied petroleum gas (LPG) products. The vapor pressure of automotive gasolines is subject to governmental regulation for pollution control purposes.

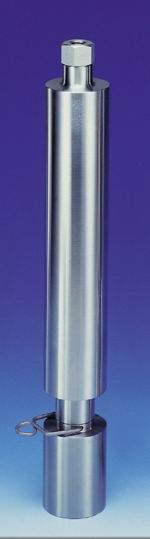

Reid Vapor Pressure Cylinders
Polished stainless steel test cylinders designed for vapor pressure tests of liquid petroleum products, volatile crude oil and liquefied petroleum gas (LPG). The cylinders consist of upper chamber and lower chamber in required 4:1 volume ratio. O-ring gaskets provide tight seal between chambers and at gauge coupling.
One-opening type is for gasoline and other products having a Reid Vapor Pressure below 26psi (180kPa). Two-opening type is for liquid products having a Reid Vapor Pressure above 26psi (ASTM D323) and for LPG (ASTM D1267). Lower chamber of two-opening apparatus includes straight-through ball valve and 1⁄4" needle valve. For LPG testing, order two-opening type apparatus and accessory bleeder valve assembly.
Cylinder Features
- Conform to ASTM D323, D1267 and related specifications
- One-opening and two-opening types
Standards Compliance
Conforms to the specifications of: ASTM D323, D1267; GPA 2140; IP 69, 161; ISO 3007, 4256; DIN 51616, 51754; FTM 791-1201
Hydrostatic Testing
Hydrostatic Test (two-opening type): Withstands 1000psi (6894kPa) gauge hydrostatic pressure per ASTM D1267 specifications
Included Accessories
- Threaded 1⁄4" Gauge Coupling
- O-ring Seals (2)
Shipping Information
Shipping Weight: 7 lbs (3.2kg)
Ordering Information
| Catalog No. |
Description |
| K11500 |
Reid Vapor Pressure Cylinder, One-Opening Type |
| K11201 |
Reid Vapor Pressure Cylinder Two-Opening Type |
| K11202 |
Bleeder Valve Assembly for LPG tests for K11201 test cylinder |
4-Unit Reid Vapor Pressure Bath
Constant temperature water baths designed for Reid Vapor Pressure determinations of liquid petroleum products and liquefied petroleum gases (LPG). Immerses vapor pressure apparatus at the proper depth per ASTM specifications. Controls bath temperature with ±0.2°F (±0.1°C) precision. Microprocessor PID control provides quick temperature stabilization without overshoot, and the bath is protected by an overtemperature control circuit that interrupts power should bath temperature exceed a programmed cut-off point. Dual LED displays provide actual and setpoint temperature values in °C/°F format.
Double-wall construction with fiberglass insulated stainless steel tank. A sturdy 1" (25mm) flange permits flush-mount benchtop installation for easy access to the bath interior. Built-in holders suspend test cylinders at the required depth. Equipped with overflow stand pipe/drain.
Features
- Conforms to ASTM D323, D1267 and related specifications
- Free standing or flush-mount benchtop installation
- Microprocessor programmable high accuracy temperature control
Technical Specifications
| Parameter |
Specification |
| Standards Compliance |
ASTM D323, D1267; GPA 2140; IP 69, 161; ISO 3007, 4256; DIN 51616, 51754; FTM 791-1201; NF M 07-007, 41-010 |
| Capacity |
1 to 4 vapor pressure apparatus, one- or two-opening type |
| Temperature Control Stability |
±0.2°F (±0.1°C) |
| Maximum Temperature |
212°F (100°C) |
| Bath Medium |
13.7 gal (51.9L) water |
| Dimensions lxwxh, in.(cm) |
15x15x36 (38.1x38.1x91.5) |
| Net Weight |
67 lbs (30.4kg) |
Electrical Requirements
- 115V 60Hz, Single Phase, 18.8A
- 220-240V 50/60Hz, Single Phase, 9.4A
Shipping Information
- Shipping Weight: 105 lbs (47.7kg)
- Dimensions: 14 Cu. ft.
Ordering Information
| Catalog No. |
Description |
| K11450 |
Reid Vapor Pressure Bath, 4-Unit, 115V 60Hz |
| K11459 |
Reid Vapor Pressure Bath, 4-Unit, 220-240V 50/60Hz |
21-Unit Reid Vapor Pressure Bath
Constant temperature water bath immerses twenty-one test cylinders for vapor pressure tests on liquid products and liquefied petroleum gas (LPG). Electronic level control automatically maintains the proper immersion depth per ASTM specifications. Heating system employs a 6kW stainless steel heat exchanger with a heavy duty circulating pump to provide rapid heat-up, even heat distribution and ease of servicing. Convenient digital setpoint and display permits rapid selection of any bath liquid temperature within the operating range. A built-in overtemperature limit control protects against accidental overheating. Bath interior and internal components are constructed of heavy gauge stainless steel. Control panel is shielded by a hinged acrylic cover. Includes sturdy angle-iron base with corrosion resistant polyurethane finish. Order pressure gauges and cylinders separately.
Features
- Conforms to ASTM D323, 1267 and related specifications
- Digital electronic temperature control
- Automatic water level control maintains proper immersion depth
Technical Specifications
| Parameter |
Specification |
| Standards Compliance |
ASTM D323, D1267; GPA 2140; IP 69, 161; ISO 3007, 4256; DIN 51616, 51754; FTM 791-1201 |
| Testing Capacity |
21 vapor pressure test cylinders |
| Temperature Range |
212°F (100°C) |
| Temperature Control Stability |
±0.2°F (±0.1°C) |
| Heater Range |
0-6000W |
| Bath Medium |
58 gal (219.5L) water |
| Dimensions lxwxh, in.(cm) Overall |
48x22x36 (122x56x91) |
Electrical Requirements
- 220-240V 50Hz, Single Phase, 28A
- 220-240V 60Hz, Single Phase, 28A
Ordering Information
| Catalog No. |
Description |
| K11415 |
Reid Vapor Pressure Bath, 21-Unit, 220-240V 50Hz |
| K11416 |
Reid Vapor Pressure Bath, 21-Unit, 220-240V 60Hz |
Wireless Reid Vapor Pressure Data Acquisition System
Windows®-based electronic pressure measurement software designed for ASTM Reid Vapor Pressure test methods. Monitors up to eight pressure vessel channels, graphing pressure and RVP data in real-time for each channel. Each channel can be run independently and configured for the pressure ranges of 0-50, 0-200, and 0-1000 psi. Pressure values can be reported in psi or kPa. Software automatically exports results into Microsoft® Excel for data analysis and storage.
Includes software, multiplexer box, USB converter box and RTD temperature probe. Requires one pressure transducer for each pressure vessel.
Ordering Information
| Catalog No. |
Description |
Order Qty |
| K11401 |
RVP Data Acquisition System, 115V 60 Hz |
1 |
| K11491 |
RVP Data Acquisition System, 230V 50/60 Hz |
1 |
| K11404-50 |
RVP Pressure Transducer, 0-50 psi |
1-8 |
| K11404-200 |
RVP Pressure Transducer, 0-200 psi |
1-8 |
| K11404-1000 |
RVP Pressure Transducer, 0-1000 psi |
1-8 |
Testing Accessories
Accessories for Liquid Products Testing (ASTM D323)
Test apparatus for liquid products (ASTM D323) requires: Test Cylinders, one or two-opening type; Pressure Gauges; Constant Temperature Bath; Bath Thermometer; Sample Container with Cover Assembly; Transfer Connection; Manometer; Manometer Adapter Kit
Accessories for Liquefied Petroleum Gases Testing (ASTM D1267)
Test apparatus for liquefied petroleum gases (ASTM D1267) requires: Test Cylinders, two-opening type; Bleeder Valve Assemblies; Pressure Gauges; Constant Temperature Bath; Bath Thermometer; Flexible Tubing; Manometer; Manometer Adapter Kit
