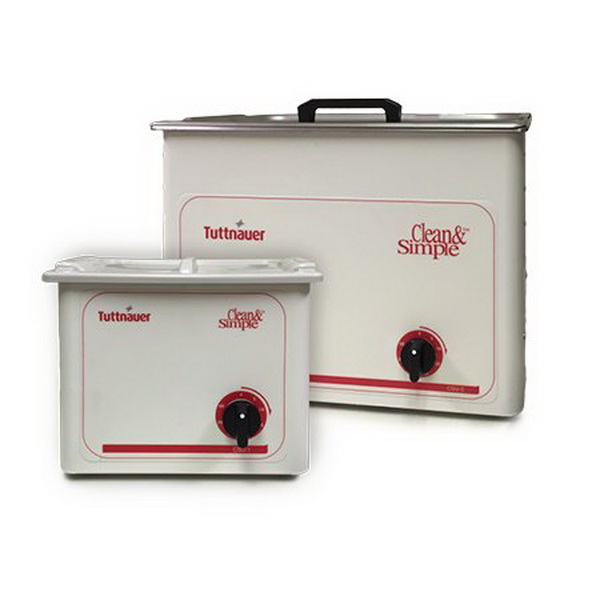

Clean & Simple™ Ultrasonic Cleaning System
The Clean & Simple Ultrasonic Cleaning System features high efficiency 60 kHz cavitation technology for thorough and quieter cleaning. Available in three sizes to accommodate different capacity needs, these systems feature durable vinyl clad steel housing that is easy to clean and scratch resistant, along with a stainless steel tank with cover. A full line of accessories is available to meet specific requirements.
Key Features
- High efficiency 60 kHz of cavitation for thorough and quieter cleaning
- Durable vinyl clad steel housing - easy to clean and scratch resistant
- Stainless steel tank with cover
- Quiet cleaning power that is less aggressive to instruments while still removing all surface contamination
- Contemporary design and quiet operation
- Full line of accessories available
Available Models
- CSU1 (1 Gallon): Holds a standard selection of instruments or 2 half size cassettes
- CSU3 (3 Gallon): Holds 3 full size cassettes
- CSU6 (6 Gallon): Holds 6 full size cassettes
Specifications
| Model |
Tank Capacity |
Tank Dimensions
Inches (Cms) |
External Dimensions
Inches (Cms) |
| CSU1 |
0.85 Gallons (3.2 Liters) |
9.38 (23.83) W
4.0 (10.16) H
5.38 (13.67) D |
10.25 (26.03) W
8.25 (20.95) H
6.5 (16.51) D |
| CSU3 |
3.25 Gallons (12.3 Liters) |
15.5 (39.37) W
6.0 (15.24) H
9.0 (22.86) D |
19.8 (50.2) W
6.5 (16.5) H
11.8 (29.8) D |
| CSU6 |
6.5 Gallons (24.6 Liters) |
16.5 (41.91) W
12.13 (30.81) H
10.0 (25.4) D |
21.8 (52.2) W
12.7 (32.2) H
13.8 (34.9) D |
Ultrasonic Cleaning Tablets
Clean & Simple ultrasonic cleaning tablets provide an ultrasonic/enzymatic solution in a convenient tablet form. Simply drop 2 tablets into your ultrasonic tank already filled with tap water and the tablets will dissolve in about a minute. This non-ionic solution is non-corrosive, non-toxic, biodegradable and non-caustic.
Features
- Easy to use tablet form
- Eliminates handling of heavy 1 gallon containers
- No bulky storage
- No pre-mixing required
- Enzymatic solution effectively breaks down protein
- Synthetic substrate, thermostable
Available Packaging
- Item No. CS0064: Box of 64 tablets
- Item No. CS0144: Box of 144 tablets
Ultrasonic Cleaner Indicators
Indicators for Cleaning Efficiency Tests
WTL198-0062
- Test soil composed of organic components (proteins, carbohydrates, fatty acids and colorants), according to ISO/TS 15883-5:2005 standard
- WTL198-0062 formulation allows detection of all factors that affect the cleaning/washing process outcome
- Should be used for routine monitoring in an ultrasonic washer
- Specific metallic holder: WTL198-0085
- For ultrasonic washing machines operating at frequencies ≥ 35 kHz, between 18-70 °C
- Challenge level: high
Indicators for Cavitation Performance Test
WTL198-0086
Especially designed to monitor the ultrasonic machine without load in order to detect strong and weak spots of cavitation. The clear glass vial contains a reactive blue-colored solution and glass beads immersed in it. Vibration of glass pearls triggers a color change from blue to yellow through a range of green tones when processed with high cavitation energy.
