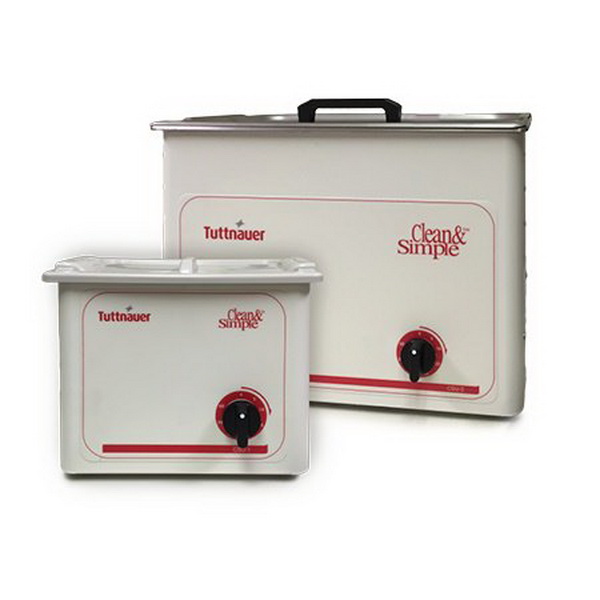

Clean & Simple™ Ultrasonic Cleaning System
The Clean & Simple Ultrasonic Cleaning System delivers high efficiency 60 kHz cavitation for thorough and quieter cleaning. Built with a durable vinyl clad steel housing that is easy to clean and scratch resistant, this system features a stainless steel tank with cover. Available in 1, 3, and 6 gallon sizes to accommodate various laboratory needs.
Key Features
- High efficiency 60 kHz of cavitation for a thorough and quieter cleaning
- Durable vinyl clad steel housing—easy to clean and scratch resistant
- Stainless steel tank with cover
- Full line of accessories available
- Contemporary design and quiet operation
- 60 kHz quiet cleaning power which is less aggressive to instruments while still removing all surface contamination
System Specifications
| Model |
Tank Dimension
Inches (Cms) |
External Dimension
Inches (Cms) |
Tank Capacity
Gallons (Liters) |
| CSU1 |
9.38 (23.83) W
4.0 (10.16) H
5.38 (13.67) D |
10.25 (26.03) W
8.25 (20.95) H
6.5 (16.51) D |
0.85 (3.2) |
| CSU3 |
15.5 (39.37) W
6.0 (15.24) H
9.0 (22.86) D |
16.5 (41.91) W
12.13 (30.81) H
10.0 (25.4) D |
3.25 (12.3) |
| CSU6 |
19.8 (50.2) W
6.5 (16.5) H
11.8 (29.8) D |
21.8 (52.2) W
12.7 (32.2) H
13.8 (34.9) D |
6.5 (24.6) |
Capacity Guide
- 1 gallon model holds a standard selection of instruments or 2 half size cassettes
- 3 gallon model holds 3 full size cassettes
- 6 gallon model holds 6 full size cassettes
Ultrasonic Cleaning Tablets
Clean & Simple is an ultrasonic/enzymatic solution dispensed in a unique tablet form. Drop 2 tablets into your ultrasonic tank already filled with tap water and the tablets will dissolve in about a minute. This is a non-ionic solution which is non-corrosive, non-toxic, biodegradable and non-caustic.
Available Sizes
- 64 tablets - Item No. CS0064
- 144 tablets - Item No. CS0144
Features
- Easy to use tablet form
- Eliminates handling of heavy 1 gallon containers
- No bulky storage
- No pre-mixing required
- Enzymatic solution effectively breaks down protein
- Synthetic substrate, thermostable
Indicators for Cleaning and Cavitation Testing
Ultrasonic Cleaners - Indicators for Cleaning Efficiency Tests
Item No. WTL198-0062
Test soil composed of organic components (proteins, carbohydrates, fatty acids and colorants), according to ISO/TS 15883-5:2005 standard. WTL198-0062 formulation allows detection of all factors that affect the cleaning/washing process outcome.
- Should be used for routine monitoring in a ultrasonic washer
- Specific metallic holder: WTL198-0085
- For ultrasonic washing machines operating at frequencies ≥ 35 kHz, between 18-70 °C
- Challenge level: high
Ultrasonic Cleaner - Indicators for Cavitation Performance Test
Item No. WTL198-0086
Especially designed to monitor the ultrasonic machine WITHOUT LOAD, in order to detect strong and weak spots of cavitation.
Clear glass vial with a reactive blue-colored solution and glass beads immersed in it. Vibration of glass pearls triggers a color change from blue to yellow through a range of green tones when processed with high cavitation energy.
Metallic Holder
Item No. WTL198-0085
