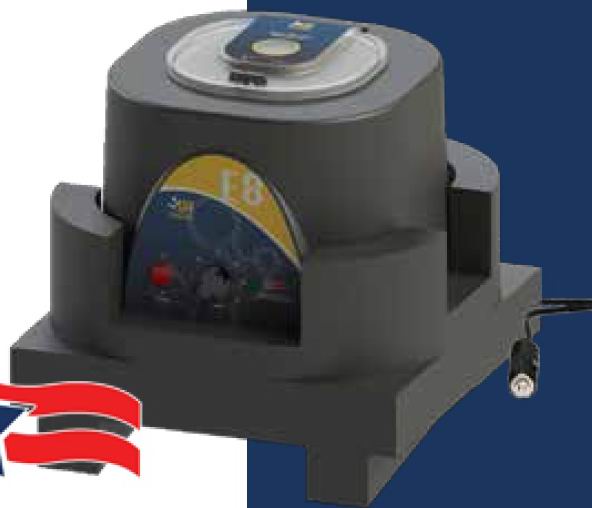

USA E8 Portafuge - Portable Centrifuge
The USA E8 Portafuge is a portable centrifuge designed, engineered, and assembled at an ISO-certified, FDA-registered manufacturing facility in Lawrenceville, GA. This portable 8-place centrifuge features higher speeds for faster and cleaner separations, quieter operation, lower chamber temperatures for cooler test-tube samples, and auto-calibrating function for precision speeds. An auto-brake stops the rotor in less than 20 seconds to save time. Simply place the centrifuge into the included car seat, strap the car seat into your vehicle, and insert the power outlet cord into your car's 12v power outlet.
Do not operate centrifuge while driving.
Available Models
| Model Number |
Description |
Speed Control |
Features |
| E8C-U8AF-150P |
USA E8 Fixed-Speed, Angled 8-Place Centrifuge with Timer, Portable |
3,500 rpm fixed speed (1534 g-force) for blood only |
Auto-off 30-minute timer with bell |
| E8C-U8AV-150P |
USA E8 Variable-Speed, Angled 8-Place Centrifuge with Timer, Portable |
3,500 rpm with variable speed control (blood, urines, etc.) |
Auto-off 30-minute timer with bell |
| E8C-U8AD-15TP |
USA E8 Digital-Speed and Time, Angled 8-Place Centrifuge, Portable |
3,500 rpm digital speed and time (blood, urines, etc.) |
Programmable touch pad; Speed: 500-3,500rpm; Time: 1-99mins; Stores last four programmed speeds & times; Service Indicator Light |
Advantages
- Accurate speeds for specific g-forces
- Proper separations without cell damage
- Quiet, vibration-free operation
- Auto-brake stops the rotor in less than 20 seconds
Features
- 45º Angled rotor, 8-tube capacity
- Holds 3ml to 15ml size tubes
- 12 volt DC maintenance-free motor
- Clear view port in lid for using tachometer
- Suction-cupped feet prevent slipping
- Lid safety shut-off switch
- Maximum RCF=1,534g
Included Items
- Eight-place tube rotor
- Eight 15ml tube sleeves
- Eight 13x75mm tube sleeve inserts
- Car seat
- Car adapter
Dimensions and Weight
| Height |
9.5" (241mm) |
| Length |
11" (279mm) |
| Width |
11" (279mm) |
| Weight |
9.5 lbs (4.3kg) |
Optional Accessories
Part #: E8P-ADWU-12V6 - 12V 6A power adapter
Benefits of Mobile Centrifugation
Home-health nurses and medics often draw blood from patients to run lab tests. Common serum tests are:
- CMP – Comprehensive Metabolic Profile, runs 14 different tests
- BMP – Basic Metabolic Profile, runs 8 different tests
It is highly recommended that CMP and BMP tubes be spun within one hour otherwise glucose test results may be falsely low, and potassium test results may be falsely high. Skewed results from un-spun blood tubes can necessitate a re-draw from the patient, causing additional physical pain, time, expense, and frustration.
With the Portafuge Expect
- Twice the customers per day
- Reduced miles
- Lower costs for tubes and reagents
- More accurate lab test results
- More satisfied patients
- Greater profit
Without a Portable Centrifuge Expect
- Higher costs for additional reagents
- Higher costs for more test tubes and supplies
- Higher costs for additional lab testing
- Higher travel expenses
- Fewer home patient visits per day
- Less accurate lab test results
