Copper Strip Corrosion Test Equipment
The Copper Strip Tarnish Test assesses the relative degree of corrosivity of petroleum products, including aviation fuels, automotive gasoline, natural gasoline, solvents, kerosene, diesel fuel, distillate fuel oil, lubricating oil and other products. A polished copper strip is immersed in 30mL of sample at elevated temperature. After the test period, the strip is examined for evidence of corrosion and a classification number from 1-4 is assigned based on a comparison with the ASTM Copper Strip Corrosion Standards. For aviation fuels and natural gasoline the sample tube is placed inside a stainless steel bomb during testing.
Test Bomb Baths
Thermostatically controlled water bath immerses Copper Strip Corrosion Test Bombs at the required depth per ASTM specifications. Use for testing aviation gasoline, aviation turbine fuel and natural gasoline. Fully insulated, double-wall stainless steel construction. Soxhlet reflux condenser and constant water level device maintain proper working depth. Choice of four-bomb and eight-bomb models. Optional removable test tube rack converts four-bomb model for testing of products not requiring corrosion bomb.
Specifications
Conforms to the specifications of: ASTM D130; IP 154; FSPT DT-28-65; ISO 2160; DIN 51759; FTM 791-5325; NF M 07-015
| Parameter |
Specification |
| Testing Capacity |
K25310/K25319: four (4) copper strip corrosion test bombs
K25320/K25329: eight (8) copper strip corrosion test bombs or sixteen (16) test tubes with optional test rack (Catalog No. K25309) installed |
| Maximum Temperature |
221°F (105°C) |
| Temperature Control Stability |
±1°F (± 0.5°C) |
| Heater Range |
0-750W |
| Bath Medium |
5 gal (18.9L) water |
| Electrical Requirements |
115V 60Hz, Single Phase, 7.5A
220-240V 50/60Hz, Single Phase, 4A |
| Temperature Control |
Analog |
Included Accessories
- Rubber Stoppers for bomb openings (4)
Dimensions and Shipping Information
| Model |
Dimensions lxwxh, in. (cm) |
Net Weight |
Shipping Weight |
Dimensions (cu. ft.) |
| 4-bomb model |
12x10x21 (30x25x53) |
18½ lbs (8.4kg) |
41 lbs (18.6kg) |
5.3 |
| 8-bomb model |
16x11½x21 (41x29x54) |
24 lbs (10.9kg) |
45 lbs (20.4kg) |
5.5 |
Ordering Information - Test Bomb Baths
| Catalog No. |
Description |
| K25310 |
Bath for Copper Strip Corrosion Test Bombs, 4-Unit, 115V 60Hz |
| K25319 |
Bath for Copper Strip Corrosion Test Bombs, 4-Unit, 220-240V 50/60Hz |
| K25320 |
Bath for Copper Strip Corrosion Test Bombs, 8-Unit, 115V 60Hz |
| K25329 |
Bath for Copper Strip Corrosion Test Bombs, 8-unit, 220-240V 50/60Hz |
| K25309 |
Optional Test Tube Rack for 8-Bomb Bath |
Test Tube Bath
Constant temperature bath immerses 17 test tubes for copper strip tarnish tests of products not requiring a test bomb, including: diesel fuel, fuel oil, automotive gasoline, Stoddard solvent, kerosene and lubricating oil. Microprocessor temperature controller has °C/°F switchable digital setpoint and display. Operator and equipment are protected by an overtemperature control circuit which automatically interrupts power to the unit should bath temperature exceed a programmed cut-off point. Communications software (RS232, etc.), ramp-to-set and other enhanced features are available as extra cost options. Welded stainless steel inner wall and powder coated steel outer wall construction with built-in support rack. Fully insulated.
Specifications
Conforms to the specifications of: ASTM D130, D6074, D6158; FSPT DT-28-65; IP 154; ISO 2160; DIN 51759; FTM 791-5325; NF M 07-015
| Parameter |
Specification |
| Capacity |
17 test tubes |
| Maximum Temperature |
190°C (374°F) |
| Temperature Control Stability |
±1°C (±2°F) |
| Heater Range |
0-750W |
| Bath Medium |
5 gal (18.9L) water or high temperature heater transfer fluid |
| Electrical Requirements |
115V 60Hz, Single Phase, 7.5A
220-240V 50/60Hz, Single Phase, 4A |
| Temperature Control |
Digital |
| Dimensions lxwxh, in. (cm) |
15½x12½x14 (39x32x36) |
| Net Weight |
27 lbs (12.2kg) |
| Shipping Weight |
45 lbs (20.4kg) |
| Dimensions |
12.8 Cu. ft. |
Ordering Information - Test Tube Bath
| Catalog No. |
Description |
| K25330 |
Copper Strip Test Tube Bath, 115V 60Hz |
| K25339 |
Copper Strip Test Tube Bath, 220-240V 50/60Hz |
| K25330-8B |
Optional test Bomb Rack |
| K25330-4B-8T |
Optional Rack, 4-Bomb, 8-Tube |
| K25330-6B-6T |
Optional Rack, 6-Bomb, 6-Tube |

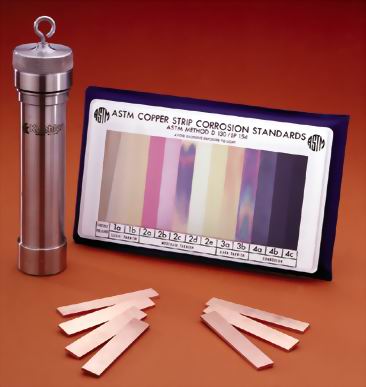

Copper Strip Corrosion Test Bomb
For aviation fuels and natural gasoline. Precision machined stainless steel bomb inserts in copper corrosion bath for testing aviation fuels and natural gasoline. Withstands test pressure of 100psi (689kPa) per specifications. Threaded cap with O-ring gasket and knurled circumference tightens by hand to a positive seal. A 1/8" groove in the bomb threads permits safe, gradual release of pressure when opening the bomb.
Specifications
Conforms to the specifications of: ASTM D130, D6074, D6158; IP 154; ISO 2160; DIN 51759; FTM 791-5325; NF M 07-015
| Parameter |
Specification |
| Net Weight |
1 lb (.45kg) |
| Shipping Weight |
2 lbs (.91kg) |
Ordering Information - Test Bomb
| Catalog No. |
Description |
| K25200 |
Copper Strip Corrosion Test Bomb |
Accessories
| Catalog No. |
Description |
| K25080 |
Copper Test Strip - 12.5x1.5-3.0mm x 75mm to ASTM specifications |
| 332-004-004 |
Test Tube - 25 x 150mm |
| 332-004-002 |
Viewing Test Tube - Protects copper strip during inspection or storage |
| K25100 |
ASTM Copper Strip Corrosion Standards - Colored reproductions of tarnished strips encased in a plastic plaque |
| 380-220-001 |
Silicone Carbide Paper, FEPA Grade, 220 grit - For polishing of copper strips prior to testing - Pack of 50 sheets |
| 380-150-003 |
Silicone Carbide Grain, FEPA grade, 150 grit - For final polishing of copper strips prior to testing - 1 lb package |
| K25000 |
Polishing Vise - Holds copper strip firmly in place without marring the edges. Stainless steel, mounted on a composition base |
| K25090 |
Multi-Strip Polishing Vise - Similar to K25000 but capable of holding four strips at a time |
| 250-000-12F |
ASTM 12F Thermometer. Range: –5 to +215°F |
| 250-000-12C |
ASTM 12C Thermometer. Range: –20 to +102°C |
Complete Test Apparatus for Aviation Fuels and Natural Gasoline
| Catalog No. |
Description |
Order Qty |
| K25310 |
Bath for Copper Strip Corrosion Test Bombs, 115V |
1 |
| K25319 |
Bath for Copper Strip Corrosion Test Bombs, 220-240V |
|
| K25200 |
Copper Strip Corrosion Test Bomb |
4 |
| K25080 |
Copper Strips |
4 |
| 332-004-004 |
Test Tube |
4 |
| 332-004-002 |
Viewing Test Tube |
4 |
| K25100 |
ASTM Copper Strip Corrosion Standard |
1 |
