Petroleum Front View Distillation Apparatus

https://www.labequip.com/web/image/product.template/34180/image_1920?unique=96dd046

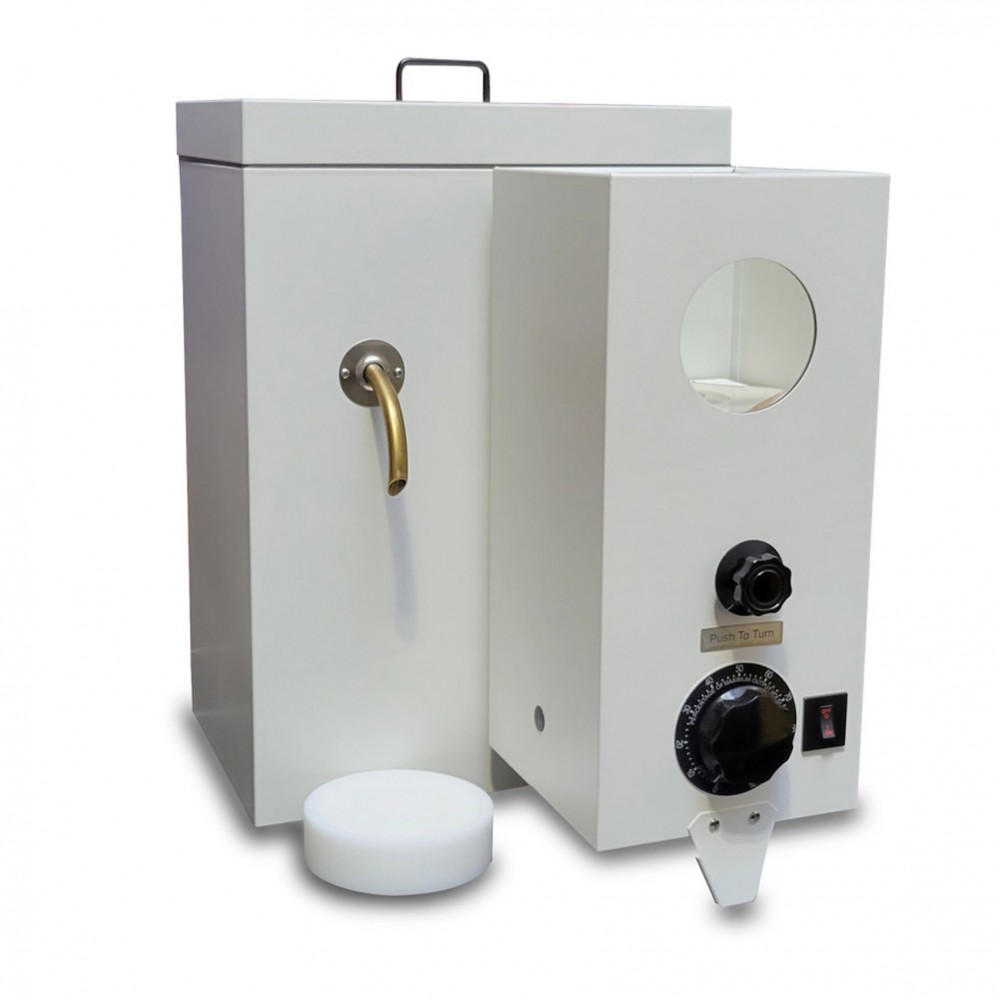

The Koehler K45200 front-view distillation apparatus has a test method in which the sample is evaporated and condensed under controlled conditions, and observations are made of the temperatures at which various percentages are recovered and/or the percentages recovered at specified temperatures. Front View Distillation apparatus designed for testing of Grade No. 2 fuel oil, Grade No. 2-D diesel fuel oil, gas oils and other distillates requiring condenser bath temperatures of up to 140F (60C). Also suitable for gasolines, aviation turbine fuels, naphthas, kerosenes and other liquid petroleum products. Similar in features and construction to the standard Front View Distillation Apparatus, but equipped with a 300W copper immersion condenser heater with stepless electronic control. Available with right or left-hand heater unit. Note: The Group 4 Apparatus can also run distillations for petroleum products categorized as Groups 0, 1, 2 and 3.

$ 6,941.00 6941.0 USD $ 6,941.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
Petroleum

Terms and Conditions


Stock Number N673
Model K45200 / K45290
Manufacturer Koehler Instrument
Standard Test Methods ASTM D1078 ASTM D216 *WITHDRAWN '88 ASTM D233 DIN 51751 ASTM D447 *WITHDRAWN '97 FTM 791-1001 FTM 791-1015 ASTM D850 ASTM D86 ASTM E133 IP 123 IP 195 ISO 3405
Product Brochure
Warranty 1 YEAR MANUFACTURER'S WARRANTY

Elc NO
Outside 15.25"W x 18.25"D x 19.5"H
Volts Specify: 115 or 220

Comes complete with:
Flask Support Boards A and C
Graduate Cylinder Support Block

Optional accessories available at addtional cost:332-003-006 Flasks A 100mL
332-003-001 Flasks B 125mL
332-003-002 Flasks C 200mL
332-003-005 Flasks D 250mL
332-002-013 Graduates A 25mL
332-002-003 Graduates B 100mL
332-002-014 Graduates C 200mL
K45410 A Flask Support Boards 11/4" (3.18cm)
K45420 B Flask Support Boards 11/2"(3.81cm)
K45430 C Flask Support Boards 2" (5.1cm)
K45440 D Flask Support Boards 23/4"(6.98cm)
K45540 Receiver Cooling Bath Jar
334-002-001 Top Silicone Plug, For Type A,B,& D Flasks pk/10
334-002-002 Side Silicone Plug pk/10
334-002-003 Top Silicone Plug, For Type C Flask pk/10
250-000-02C ASTM 2C Partial Immersion -5 to +300°C
250-000-07F ASTM 7F Low Distillation 30 to 580°F
250-000-07C ASTM 7C Low Distillation -2 to +300°C
250-000-08F ASTM 8F High Distillation 30 to 760°F
250-000-08C ASTM 8C High Distillation -2 to +400°C
250-000-37C ASTM 37C Solvents Distillation -2 to 52C
250-000-38C ASTM 38C Solvents Distillation 24 to 78C
250-000-39C ASTM 39C Solvents Distillation 48 to 102C
250-000-40C ASTM 40C Solvents Distillation 72 to 126C
250-000-41C ASTM 41C Solvents Distillation 98 to 152C
250-000-42C ASTM 42C Solvents Distillation 95 to 255C
250-000-102C ASTM 102C Solvents Distillation 123 to 177C
250-000-103C ASTM 103C Solvents Distillation 148 to 202C
250-000-104C ASTM 104C Solvents Distillation 173 to 227C
250-000-105C ASTM 105C Solvents Distillation 198 to 252C
250-000-106C ASTM 106C Solvents Distillation 223 to 277C
250-000-107C ASTM 107C Solvents Distillation 248 to 302C
