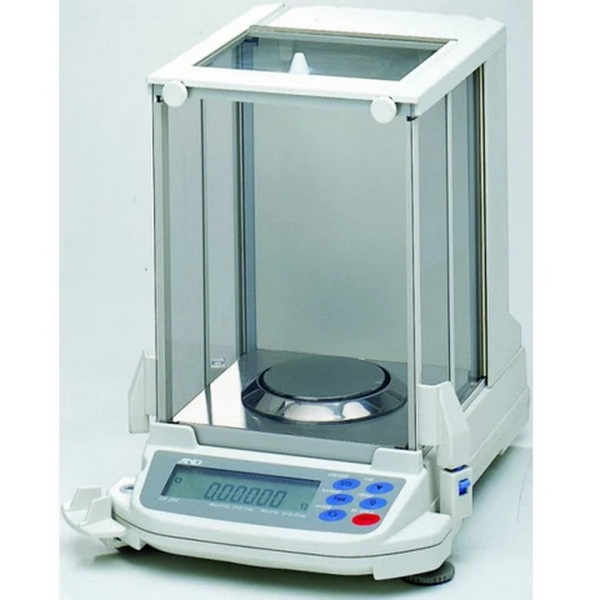

GR-202 Analytical Balance with Dual-Range Semi-Micro Precision
The GR-202 analytical balance delivers exceptional performance with dual weighing ranges: 210 grams at 0.1 mg resolution and 42 grams at 0.01 mg semi-micro resolution. Part of the Gemini Series, this balance features internal calibration with a large breeze break and compact footprint design, making it ideal for analytical laboratories requiring high-precision measurements in a space-efficient format.
Key Features
- 0.01mg Semi-Micro Resolution
- Internal Calibration Standard
- Full Digital Calibration
- User Friendly Operation
- Liquid Crystal Display
- RS-232C Bi-directional Interface
- Windows Communication Tools Software
- GLP/GMP/GCP/ISO Compliance
- Balance ID Number
- Time and Date Function
- Data Memory Function
- Automatic Counting Accuracy Improvement
- Underhook Capability
- 5 Year Warranty
Weighing Capacity and Resolution
| Unit |
Capacity × Resolution (High Range) |
Capacity × Resolution (Low Range) |
| Gram (g) |
210×0.0001 |
42×0.00001 |
| Milligram (mg) |
210,000×0.1 |
42,000×0.01 |
| Decimal Ounce (oz) |
7.4×0.00001 |
1.4×0.000001 |
| Troy Ounce (ozt) |
6.7×0.00001 |
1.3×0.000001 |
| Pennyweight (dwt) |
135×0.0001 |
27×0.00001 |
| Carat (ct) |
1050×0.001 |
210×0.0001 |
| Momme (mom) |
56×0.0001 |
11×0.00001 |
| Grain Unit (GN) |
3240×0.002 |
648×0.0002 |
| Tola (t) |
18×0.00001 |
3.6×0.000001 |
| Tael (TL) |
5.5×0.00001 |
1.1×0.000001 |
Performance Specifications
| Parameter |
Specification |
| Linearity |
±0.0002 / ±0.00003 g |
| Repeatability / Std Dev |
0.0001 / 0.00002 g |
| Stabilization Time |
3.5 / 8 seconds |
| Sensitivity Drift (10°C – 30°C) |
±2ppm / °C (10°C ~ 30°C / 50°F ~ 86°F) |
| Display Refresh |
5 times per second / 10 times per second |
| Percentage Min Div |
0.01% |
| Counting Min Weight |
0.1 mg |
Physical Specifications
| Parameter |
Metric |
Imperial |
| Pan Size (Diameter) |
85 mm |
3.3 inches |
| Physical Dimensions (W×D×H) |
249×330×327 mm |
9.8×12.99×12.87 inches |
| Breeze Break Dimensions (W×D×H) |
178×160×233 mm |
7.01×6.5×9.17 inches |
| Weight |
Approximately 6.0 kg |
13.2 lb |
Operating Conditions and Power
Operating Temperature: 5°C ~ 40°C / 41°F ~ 104°F, RH less than 85%
Power: 100, 120, 220, 240 VAC (AC Adapter) 50 Hz / 60 Hz, 11VA
Standard Accessories
- Manual
- AC Adapter
- Reference Card
External Calibration Mass (Optional)
100 g / 200 g
Advanced Calibration and Data Management
Full Digital Calibration simplifies calibration procedures by eliminating the need to continuously load and unload calibration weights to adjust Zero and Span. The internal calibration mass with motor drive enables convenient, repeatable calibration without external weights. GLP/GMP/GCP/ISO compliance allows for balance management through LIMS systems, with output of date, time, balance ID number, serial number, and calibration data to an AD-8121B printer or computer.
Enhanced Operational Features
The Data Memory Function stores 200 pieces of weigh data for later retrieval and analysis. The Automatic Counting Accuracy Improvement feature ensures optimum count accuracy through continuous recalculation of average piece weight. Windows Communication Tools Software provides easy transmission of weighing data from the balance to a computer using the RS-232C interface. The Auto Power On Function automatically turns the balance on when plugged in, streamlining laboratory workflows.
