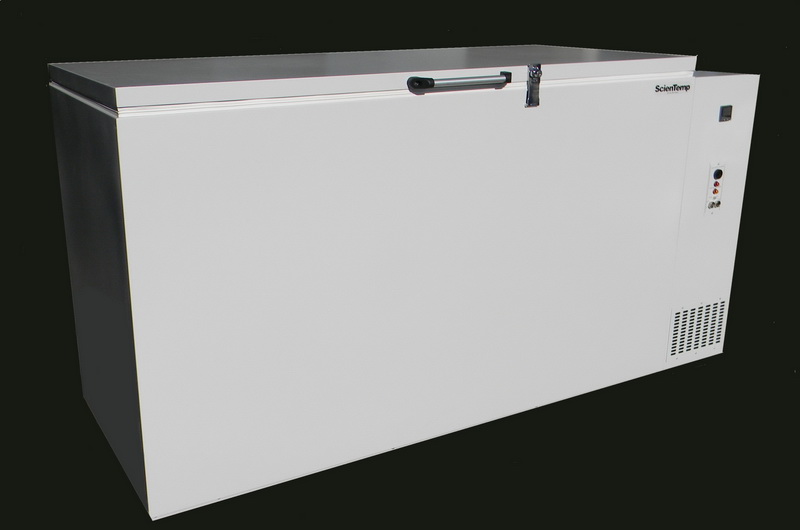

Ultralow Chest Freezer

Made in United States
Ships from United States
https://www.labequip.com/web/image/product.template/33848/image_1920?unique=27f6efe

The standard features of this 21 Cu/Ft (609L) Scientemp ultra-low freezer include a Micro-processor-based controller, which sounds an audible and visual alarm. The temperature range is -45C to -85C. It also features manual defrost, castors and keylocking door. 6 in. circular chart recorder is available at additional cost if required. A phone dialer back-up system is available at a small additional cost; if the alarm goes off it phones a number (like a pager or phone). Other available accessories include a CO2 or Liquid Nitrogen Back-Up System, Freezer Racks, and Access Port Holes for probes, cables or instruments.

$ 14,884.00 14884.0 USD $ 14,884.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
General Testing

Terms and Conditions


Stock Number N658
Model 80-21 (-85C)
Manufacturer Scientemp
Product Brochure
Warranty 18 MONTH MANUFACTURER'S WARRANTY ON PARTS AND LABOR

Capacity 609 L / 21 cu ft
Elc NO
Inside 60 in.W x 32 in.D x 20 in.H
Outside 84 in.W x 45 in.D x 32 in.H
Volts 230
Hertz 50/60
Amps Watts 7.2A

Model 80-21 Ultra Low Temperature Freezer

The Model 80-21 is a 21 cubic foot ultra low temperature chest freezer featuring versatile design with safe, economical insulation and CFC-free refrigerant. Built with sturdy welded steel construction and equipped with digital temperature control, this freezer provides reliable storage for demanding laboratory applications.

Key Features

  • Counter-balanced lid with magnetic gasket for safety and easy access
  • Brushed aluminum and thermoplastic tubular handle with separate keyed hasp lock
  • Inner Styrofoam sub-lids included for additional insulation
  • Insulated using environmentally safe PFAS-free Ecofoam Polyurethane Foam
  • CFC-free, non-toxic, non-combustible and non-ozone depleting refrigerant
  • Permanently lubricated and hermetically sealed compressor for easy maintenance
  • Welded steel cabinets with textured exterior and smooth interior powdercoat finish
  • Digital readout displays internal temperature and set point in degrees Centigrade or Fahrenheit
  • Visual and audible alarm monitoring system indicates power on and displays warning of rise in temperature and/or power failure
  • Heavy duty swivel type locking casters

Specifications

Parameter Value
Capacity 21 cubic feet
Exterior Dimensions 47"H x 85"W x 36.5"D
Interior Dimensions 32"H x 60"W x 20"D
Temperature Range -45°C to -80°C / -50°F to -112°F
Insulation Polyurethane
Door Keyed Hasp Lock
Casters (4) 3" Locking
Temperature Controller Digital Display
Alarm Visual and Audible

Note: Exterior height includes casters. Depth measurement includes hinges and handle.

Refrigeration Specifications

Parameter Value
Compressor 3/4 hp
Refrigerant R-513A High Stage / R-508B Low Stage
Voltage Options 230/60/1 - 230/50/1
Refrigerant Control Capillary Tube
Evaporator Cold Wall
Defrost Manual
Air Circulation Gravity
Running Amps 8 amps (208-230V)

Optional Accessories

  • 6" Temperature Chart Recorder
  • Calgrafix Software
  • Voice Pager / Dialer
  • Explosion Proofing
  • Internal Heater and Internal Fan
  • Stainless Steel Interior and / or Exterior
  • Observation Window
  • Ramp / Soak Control
  • Access Ports (1", 2" or 4" are available)
  • CO2 and LN2 Back-Up Systems
