Manual Softening Point Apparatus

https://www.labequip.com/web/image/product.template/33843/image_1920?unique=96dd046

Koehler K80000 Softening Point Apparatus

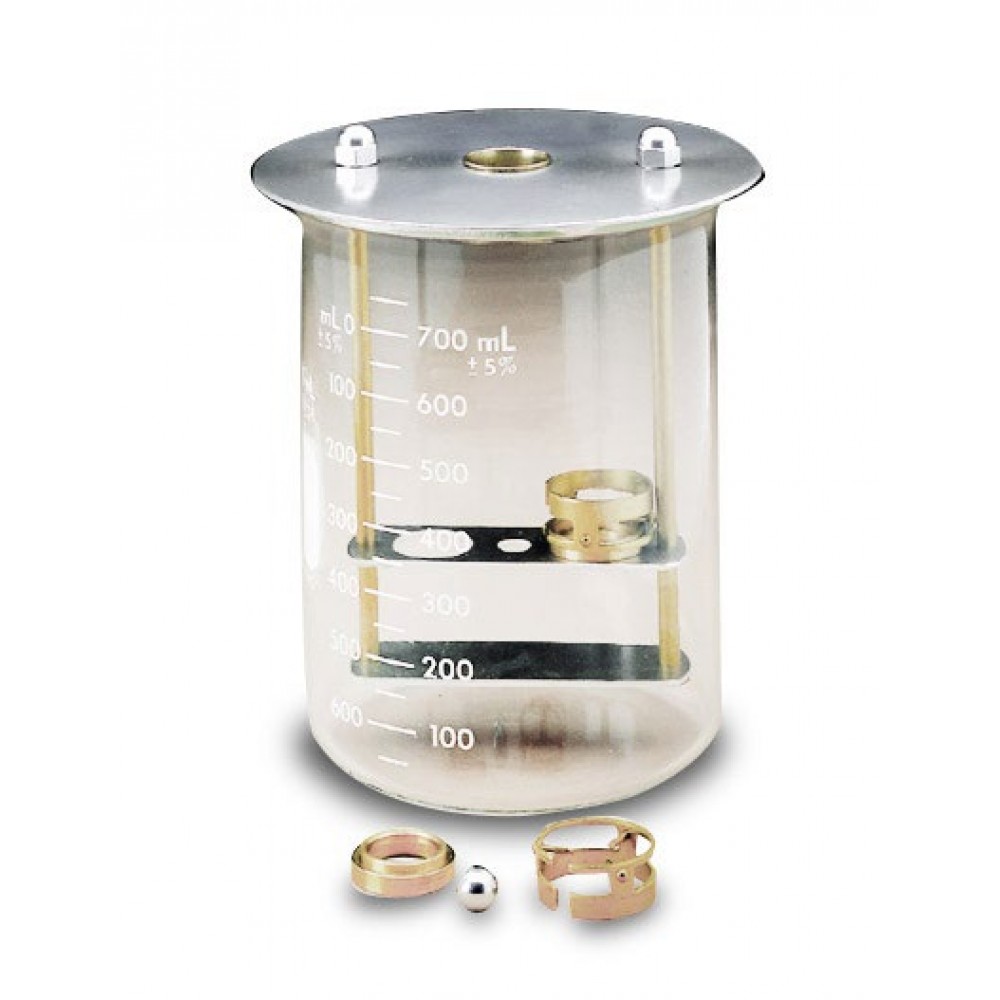

The sample is cast in shouldered rings and heated at a controlled rate under the weight of a steel ball. The softening point is the temperature at which the bitumen disks soften and sag downward a specified distance.

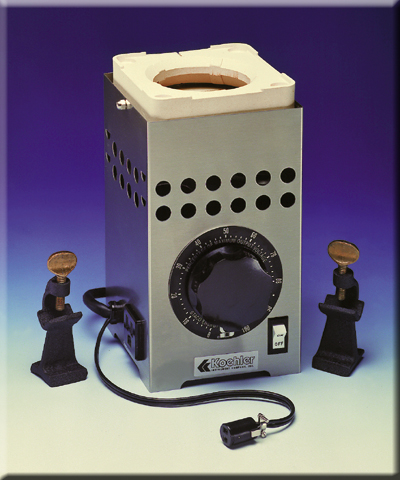

The price also includes the 750W heater (K42000) with variable stepless control and porcelain refractory top plate with positioning well for beaker. Enclosed in a stainless steel housing with cooling vents.
s. Order thermometer separately at extra cost.

$ 1,086.00 1086.0 USD $ 1,086.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
Materials Testing Petroleum

Terms and Conditions


Stock Number N645
Model K80000 + K42000 / K42090
Manufacturer Koehler Instrument
Standard Test Methods AASHTO T53 ASTM D36 ASTM E28 IP 196 IP 58
Product Brochure
Warranty 1 YEAR MANUFACTURER'S WARRANTY

Elc NO
Volts 115-230
Hertz 50/60
Amps Watts 750W

COMES COMPLETE WITH:
K42000 Powertrol Heater
800mL beaker
2 standard balls
shouldered rings
ball centering guides
ring holder
bottom plate
beaker cover
support rod

OPTIONAL ACCESSORIES AVAIABLE AT ADDITIONAL COST:
250-000-15F ASTM 15F Thermometer, Range: 30 to 180°F 250-000-15C ASTM 15C Thermometer, Range: -2 to +80°C 250-000-16F ASTM 16F Thermometer, Range: 85 to 392°F
250-000-16C ASTM 16C Thermometer, Range: 30 to 200°C
K80001 Ring. Brass, shouldered ring conforming to ASTM specifications. Pack of 10
K80002 Ball. Hardened steel, conforming to ASTM specifications. Pack of 10
K80003 Ball-Centering Guide
