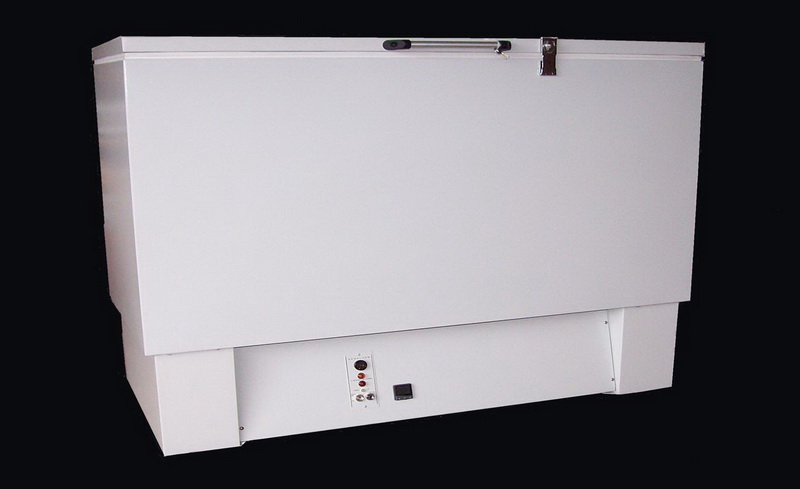

Ultralow Chest Freezer

Made in United States
Ships from United States
https://www.labequip.com/web/image/product.template/33839/image_1920?unique=b539e8f

The standard features of this 6.8 Cu/Ft (193L) Scientemp ultra-low freezer include a Micro-processor-based controller, which sounds an audible and visual alarm. The temperature range is -45C to -85C. It also features manual defrost, castors and keylocking door. 6 in. circular chart recorder is available at additional cost if required. A phone dialer back-up system is available at a small additional cost; if the alarm goes off it phones a number (like a pager or phone). Other available accessories include a CO2 or Liquid Nitrogen Back-Up System, Freezer Racks, and Access Port Holes for probes, cables or instruments.

$ 8,735.00 8735.0 USD $ 8,735.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
General Testing

Terms and Conditions


Stock Number N631
Model 85-6.8A (-85C)
Manufacturer Scientemp
Product Brochure
Warranty 18 MONTH MANUFACTURER'S WARRANTY ON PARTS AND LABOR

Capacity 193 L / 6.8 cu ft
Elc NO
Inside 47 in.W x 15 in.D x 17 in.H
Outside 60 in.W x 28 in.D x 41 in.H
Volts specify 115 or 230
Hertz 50/60

Model 85-6.8 Ultra-Low Temperature Chest Freezer

Product Overview

The Model 85-6.8 is a versatile ultra-low temperature chest freezer designed for reliable cold storage applications. Featuring a counter-balanced lid with magnetic gasket and brushed aluminum thermoplastic tubular handle with separate keyed hasp lock, this freezer provides safe and easy access. Inner Styrofoam sub-lids are included for additional insulation.

Key Features

  • Versatile design with standard or custom configuration options
  • Counter-balanced lid with magnetic gasket for safety and easy access
  • Brushed aluminum and thermoplastic tubular handle with separate keyed hasp lock
  • Inner Styrofoam sub-lids included for additional insulation
  • Environmentally safe PFAS-free Ecofoam Polyurethane foam insulation
  • CFC-free, non-toxic, non-combustible and non-ozone depleting refrigerant
  • Permanently lubricated and hermetically sealed compressors for easy maintenance
  • Welded steel cabinets with textured exterior and smooth interior powdercoat finish
  • Digital readout displays internal temperature and set point in degrees Centigrade or Fahrenheit
  • Standard visual and audible alarm system for temperature monitoring and power failure detection
  • Locking 3" heavy duty swivel type casters

Technical Specifications

Specification Value
Capacity 6.8 cubic feet
Temperature Range -45°C to -85°C / -50°F to -121°F
Exterior Dimensions 41"H x 60"W x 28"D**
Interior Dimensions 17"H x 47"W x 15"D
Insulation Polyurethane
Door Keyed Hasp Lock
Casters (4) 3" Locking
Temperature Controller Digital Display
Alarm Visual and Audible

**Exterior height includes casters. Depth measurement includes hinges and handle.

Refrigeration Specifications

Specification Value
Compressor 1/2 hp
Refrigerant R-513A High Stage / R-508B Low Stage
Voltage Options 115/60/1 - 230/60/1 - 230/50/1
Refrigerant Control Capillary Tube
Evaporator Cold Wall
Defrost Manual
Air Circulation Gravity
Running Amps 12 amps (115V) | 6 amps (230V)

Optional Accessories

  • 6" Temperature Chart Recorder
  • Calgrafix Software
  • Voice Pager / Dialer
  • Explosion Proofing
  • Internal Heater and Internal Fan
  • Stainless Steel Interior and / or Exterior
  • Observation Window
  • Ramp / Soak Control
  • Access Ports (1", 2" or 4" are available)
  • CO2 and LN2 Back-Up Systems
