Digital Incubator Series
Professional-grade incubators available in two series configurations: the 140 Series with high-optic acrylic door and the 180 Series with insulated steel door. Both series feature digital PID microprocessor controls, high-grade aluminum interiors, and powder-coated steel exteriors in Dove Grey (Ivory).
Temperature Range
- Models 140E: Ambient +2°C to 62°C (143°F)
- Models 180E: Ambient +3°C to 93°C (200°F)
Model Specifications
| Model |
10-140E |
12-140E |
10-180E |
12-180E |
| Capacity |
0.7 Cubic Feet |
2.0 Cubic Feet |
0.7 Cubic Feet |
2.0 Cubic Feet |
| Interior Dimensions |
12"W X 10"H X 10"D (30.5 cm X 25.4 cm X 25.4cm) |
18"W X 16"H X 12"D (45.7 cm X 40.6 cm X 30.5cm) |
12"W X 10"H X 10"D (30.5 cm X 25.4 cm X 25.4cm) |
18"W X 16"H X 12"D (45.7 cm X 40.6 cm X 30.5cm) |
| Exterior Dimensions |
13"W x 15"H x 11"D (33cm X 38.0cm X 28cm) |
19"W x 21"H x 13"D (48.3cm X 53.3cm X 33.0cm) |
13"W x 15"H x 11"D (33cm X 38.0cm X 28cm) |
19"W x 21"H x 13"D (48.3cm X 53.3cm X 33.0cm) |
| Door |
High Optic Acrylic (Bronze) |
High Optic Acrylic (Bronze) |
Solid Insulated Steel (Ivory) |
Solid Insulated Steel (Ivory) |
| Electrical |
115 Volts, Single Phase, 110 Watts / 50/60Hz |
115 Volts, Single Phase, 235 Watts / 50/60Hz |
115 Volts, Single Phase, 270 Watts / 50/60Hz |
115 Volts, Single Phase, 385 Watts / 50/60Hz |
| Interior Construction |
High Grade Aluminum |
High Grade Aluminum |
High Grade Aluminum |
High Grade Aluminum |
| Exterior Construction |
Powder Coated Steel; Dove Grey (Ivory) |
Powder Coated Steel; Dove Grey (Ivory) |
Powder Coated Steel; Dove Grey (Ivory) |
Powder Coated Steel; Dove Grey (Ivory) |
| Thermo-Control |
Digital PID Microprocessor |
Digital PID Microprocessor |
Digital PID Microprocessor |
Digital PID Microprocessor |
Note: Standard models voltage only, 230 Voltage available
Door Options
See-Through Acrylic (140 Series)
Keep a close eye on your samples with our incubator's see-through acrylic door—perfect for uninterrupted monitoring and optimal transparency. The Model '140' Incubator acrylic door is not suitable for applications introducing high moisture, products containing ammonia or alcohol derivatives, certain oils, commercial cleansers, urine, or any harsh chemicals/constituents.
Insulated Steel Door (180 Series)
Ensure optimal performance in high-temperature applications with our incubator's insulated steel door (aluminum interior), crafted for maximum temperature control and superior sample safety. This "180" series steel door is recommended for applications that introduce high moisture or chemicals to the incubators.
Standard Features
- Thermal and Electronic Safety Shutoff
- High-Grade Aluminum Interior
- Analog or Digital Temperature Controls
- Illuminated Power Switch
- Resistive-Tubular Incoloy Heating Elements
- Powerful Blower (AE series)
- Powder-Coated Exterior Paint
- High-Optic Acrylic or Insulated Steel Door
Temperature Controls
Bi-metal Thermostat
Our reliable, cost-effective thermostats recover temperature quickly after loading and unloading contents, allowing you to continue building, testing, and working without limitations.

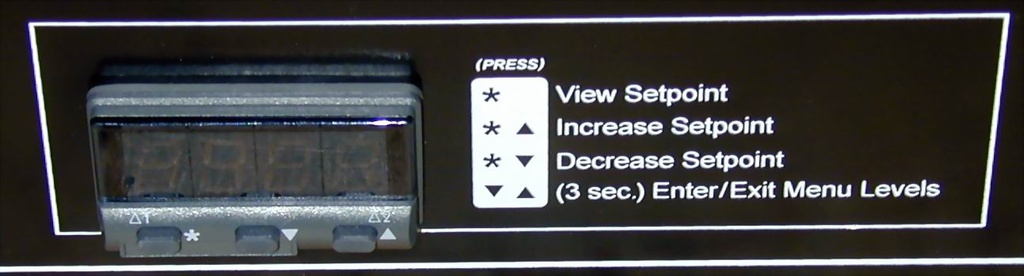

Standard Digital Controller
Our standard digital controller features advanced performance capabilities for the most complex and critical applications. With a simple yet powerful interface that is easy to understand, this controller gives you ease of use and high-level accuracy.
Safety and Protection
Digital Controller High-limit Alarm
In addition to the standard in-line fuse protection, our digital incubators have another layer of protection within the controller: a high-limit alarm that shuts off the heating elements in the event of an over-temperature condition.
Electrical In-line Fuse
A vital safety mechanism in our incubators, the in-line fuse automatically cuts off power in case of electrical surges or malfunctions, ensuring peace of mind and safeguarding against potential hazards.
Heat Distribution
Gravity Convection
Single and dual element coils at the bottom of our incubators generate the right amount of heat that, by the process of gravity convection, provides you with gentle and uniform heating for your parts.
Air-Forced
Additionally, our air-forced convection incubators significantly increase the rate of heat transfer by circulating heated air in the chamber, allowing for better control over temperature gradients and more precise heat-exchange processes.
Shelves
To ensure uniform heat distribution with long-lasting durability, we use nickel-plated, chemical resistant, heavy gauge wire shelves that allow hot air to circulate around the chamber contents.
Our high-quality Aluminum Perforated Shelf enhances the functionality of our AE series incubators. Lightweight yet durable, with uniformly spaced cross-shaped perforations, it ensures optimal air circulation and stable support for your samples.
Accessories
TempAssure Chamber Monitor
Calibrate chambers and monitor internal temperatures with ease.
Additional Shelves
Enhance your incubator's versatility with this additional shelf to maximize space and accommodate more samples or specimens with ease.
Options
Access Porthole
Insert pipes, wiring, or other components into the chamber through a custom access hole.
