Sampling Splitters
Sampling splitters reduce or halve material samples for making sieve tests. These devices maintain representative particle size distribution while reducing the original sample size, ensuring accurate test results with smaller quantities of material.
Available Models
| Description |
Max Particle Size |
Dimensions |
Weight |
Part # |
| Sample Splitter with 14-1/2 in. Discharge Chutes |
1/8 in. |
12 in. wide x 14 in. deep x 12 in. high (30 cm x 36 cm x 30 cm) |
10 lbs. (5 kg) |
SS-50 |
| Sample Splitter with 16-1 in. Discharge Chutes |
1/4 in. |
22 in. wide x 16 in. deep x 16 in. high (56 cm x 41 cm x 41 cm) |
25 lbs. (10 kg) |
SS-100 |
Sound Enclosure
The Sound Enclosure is designed to be used exclusively with Ro-Tap Sieve Shakers. Operating noise levels are reduced from approximately 85dB to 78 dB. Cabinets are fabricated with 18 gauge steel and feature a 1 in. metal faced acoustic foam inner liner for effective sound dampening.
| Description |
Dimensions |
Weight |
Part # |
| Sound Enclosure (RX-29, RX-30) |
35 in. wide x 24 in. deep x 29 in. high (89 cm x 60 cm x 74 cm) |
125 lbs. (57 kg) |
R-30050 |
| Sound Enclosure (RX-94) |
34 in. wide x 33 in. deep x 31 in. high (86 cm x 83 cm x 78 cm) |
150 lbs. (69 kg) |
RX-99 |

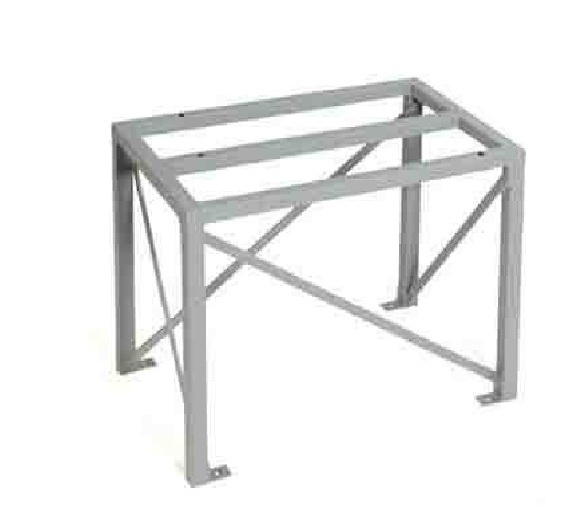

Test Stand
Specifically designed for RX-29, RX-30, and RX-812 Sieve Shakers, the Test Stand can be used with or without the Sound Enclosure Cabinet. The test stand is fast and easy to install while offering an attractive and sturdy construction that can be fastened to the floor or foundation.
| Description |
Dimensions |
Weight |
Part # |
| Test Stand (RX-29, RX-30, RX-812) |
20 in. wide x 32 in. high x 28 in. deep (50 cm x 81 cm x 71 cm) |
65 lbs. (30 kg) |
R-40041 |
| Cover Springs with Ball Stud (RX-99 only) |
N/A |
N/A |
R-10099-30 |
