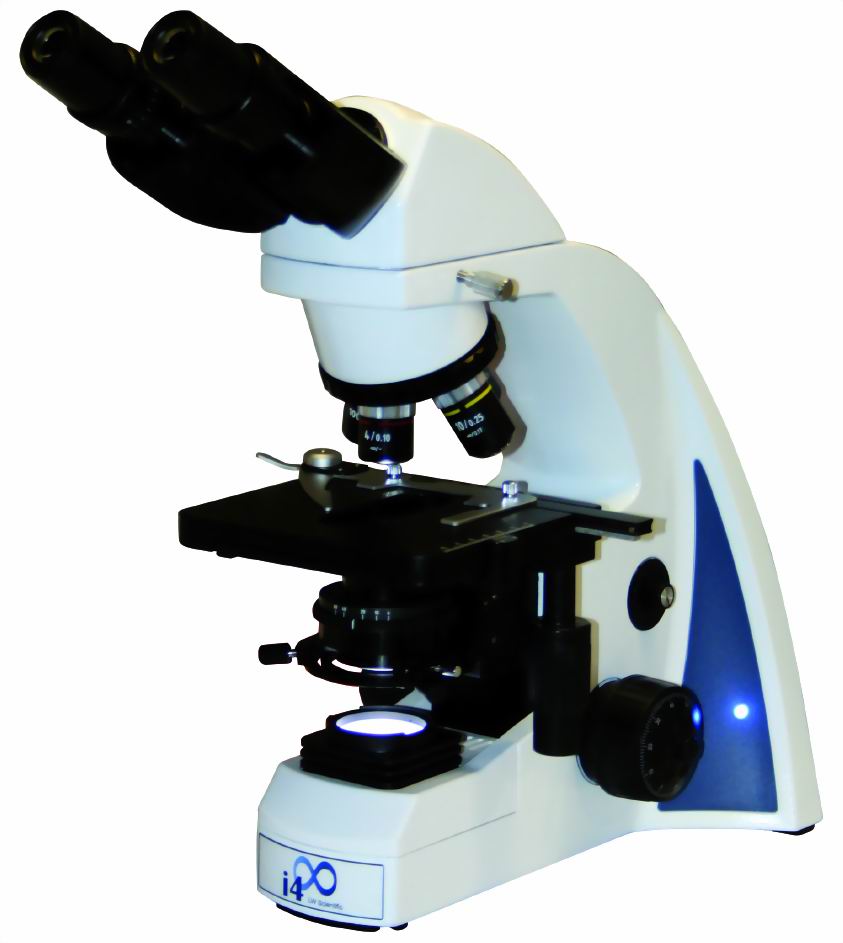

Polarizing Microscope

The i4 modular series microscope features exceptional optical quality and expandability for top-notch performance in the lab. Use the rotating head to adjust the height for taller users. Infinity Plan optics with a 30-year anti-fungal coating match quality with value within any clinic's budget. With cool, long-life LED illumination, the i4 Infinity microscope is the perfect choice for durability, dependability, and superior imaging in the laboratory.
HEAD:
Binocular (Seidentopf), Trinoc available
Digital cameras and adapters available
Diopter adjustment
Inclined 30°, rotates 360°
10X/18 WF Eyepieces(10X/20X Super WF HP eyepieces available)
Interpupillary distance range 48-75mm

NOSEPIECE:
Reverse quadruple nosepiece
Multiple ball bearing mounted

OBJECTIVES:
Infinity Plan objectives
4X, 10X, 40XR, 100XR (oil). 50X (oil) objective is also available.
Anti-fungal, parfocal, parcentric, color-coded

STAGE:
Mechanical stage (133mm x 143mm)
Coaxial drive controls, metal rack & pinion
Range of traverse: 78mm x 50mm.
Stage locking lever.
Slow-close hydraulic slide finger

ILLUMINATION:
Moveable Abbe condenser, NA 1.25
Iris Diaphram
LED “daylight” long-life light source
Variable light adjustment
100-240V / 50-60Hz automatic-switching electronics
3-prong UL-listed power cord
