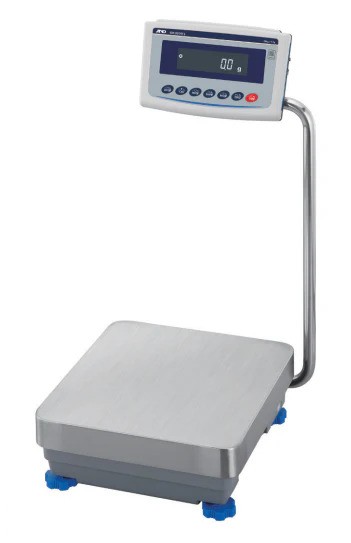

GX-L Series: High Capacity Precision Balances
The GX-L high capacity precision balances were designed for applications that require laboratory accuracy but with industrial protection. The EMFC weighing system is protected by a durable metal housing and offers a maximum capacity of 100 kg.
Key Features
- IP65 Protection: All models are IP65 rated for protection against dust and washdown, making them an ideal choice for applications weighing liquid/powder or for dusty environments.
- Flexible Display Position: The swing-arm display stand allows users to easily adjust the height or relocate the display from a rear column setup to front mounted depending on the user's preference. Alternatively, certain models have a remote display stand that can be wall mounted away from the platform for easier viewing or to protect the display from harsh environments.
- Communication: The GX-L comes standard with RS232 and bi-directional USB (cable included). The balance maintains its IP65 protection rating with the use of USB or RS232 making it even better suited for dirty/wet environments.
- Internal Calibration: With automatic internal calibration, it can be set to adjust automatically according to set execution conditions (temperature change, preset time or interval) to maintain accuracy even in changing environmental conditions.
- Level Detection: To ensure accurate measurements, the GX-L will display a blinking alert (TILT) when the device is out of level, prompting users to adjust.
- User Access Control: Password protection is offered 2 ways. First is to limit use to up to 11 authorized individuals (including 1 admin) and requiring a password for each user. The second is to set a password only for the admin so that they can make changes, but allowing anyone to use the balance without requiring a password (measurements only).
- Super Hybrid Sensor: Advanced weighing technology for precision and reliability.
Specifications
| Parameter |
GX-12001L |
GX-22001L |
GX-32001L, GX-32001LS |
GX-32001LD, GX-32001LDS |
| Capacity |
12 kg |
22 kg |
32 kg |
6.2 kg / 32 kg* |
| Readability (d) |
0.1 g |
0.1 g |
0.1 g |
0.1 g / 1 g* |
| Repeatability (std. deviation) |
0.1 g |
0.1 g |
0.1 g |
0.1 g / 0.5 g |
| Minimum unit weight** |
140 g |
140 g |
140 g |
140 g |
| Linearity |
±0.2 g |
±0.2 g |
±0.2 g |
±0.2 g / ±1 g |
| Sensitivity drift (10 to 30 °C/50 to 86 °F, when automatic self sensitivity adjustment is OFF) |
±3 ppm/°C |
±3 ppm/°C |
±3 ppm/°C |
±5 ppm/°C |
| Applicable calibration weight value |
5 kg, 10 kg |
5 kg, 10 kg, 20 kg |
5 kg, 10 kg, 20 kg, 30 kg |
5 kg, 10 kg, 20 kg, 30 kg |
| Net weight |
17 kg |
17 kg |
17 kg |
17 kg |
* Smart range function: Automatically switches between the precision and standard ranges, and recovers the full precision range with a press of the TARE key.
** Pursuant to the United States Pharmacopeia (USP), Chapter 41.
| Parameter |
GX-42001L |
GX-62001L, GX-62001LS |
GX-62000L, GX-62000LS |
GX-102000L, GX-102000LS |
| Capacity |
42 kg |
62 kg |
62 kg |
102 kg |
| Readability (d) |
0.5 g |
0.1 g |
1 g |
1 g |
| Repeatability (std. deviation) |
0.5 g |
0.2 g |
0.7 g |
1 g |
| Minimum unit weight** |
410 g |
140 g |
1.4 kg |
1.4 kg |
| Linearity |
±1 g |
±0.5 g |
±1 g |
±2 g |
| Stabilization time (typical when set to FAST) |
Approx. 1.5 seconds |
Approx. 1.5 seconds |
Approx. 1.5 seconds |
Approx. 1.5 seconds |
| Sensitivity drift (10 to 30 °C/50 to 86 °F, when automatic self sensitivity adjustment is OFF) |
±5 ppm/°C |
±5 ppm/°C |
±6 ppm/°C |
±6 ppm/°C |
| Accuracy immediately after internal sensitivity adjustment*** |
±1.5 g |
±3 g |
±5 g |
±10 g |
| Applicable calibration weight value |
10 kg, 20 kg, 30 kg, 40 kg |
10 kg, 20 kg, 30 kg, 40 kg, 50 kg, 60 kg |
10 kg, 20 kg, 30 kg, 40 kg, 50 kg, 60 kg |
10 kg, 20 kg, 40 kg, 50 kg, 60 kg, 80 kg, 100 kg |
| Net weight |
17 kg |
18 kg |
18 kg |
18 kg |
** Pursuant to the United States Pharmacopeia (USP), Chapter 41.
*** Under a stable environment: No rapid temperature/humidity change, vibration, draft, magnetism, static, etc., between 10 °C and 30 °C (50 °F and 86 °F). The mass of the internal weight may vary with age.
Common Specifications (All Models)
| Parameter |
Specification |
| Operating environment |
5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) |
| Data memory |
200 weighing results + 50 sensitivity adjustment/calibration test results (with timestamps), 50 unit masses for counting mode, 20 sets of upper/lower limit values for comparator mode, and 20 tare values |
| Display refresh rate |
5 times/second, 10 times/second, or 20 times/second |
| Display |
Reverse Backlit LCD (Character height: 0.7") |
| Number of samples |
5, 10, 25, 50, 100, or an arbitrary number of pieces |
| Units of measure |
g (gram), kg (kilo gram), oz (ounce), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), pcs (counting mode), % (percent mode), DS (density mode), and a user-programmable unit |
| Communication interface |
RS-232C (D-Sub 9-pin) and USB (mini B) |
| Weighing pan size |
15.2" x 13.5" |
| External dimensions |
Swing-arm type (GX-L): 14.6" (W) × 24.2" (D) × 5.1" (H)**** / Separate type (GX-LS): 13.5" (W) × 17.4" (D) × 5.1" (H)***** |
| Dust and waterproof rating |
IP65 |
| Power supply/consumption |
AC adapter / approx. 30 VA |
| Standard accessories |
Display cover, AC adapter, USB cable (6'), Cable clamp × 2****** |
**** Dimensions when the swing-arm stand is pulled fully down.
***** Dimensions of the base unit. The dimensions of the display unit is 10.25" (W), 6.5" (D), 7.9" (H), and the cable length is 9.8 ft.
****** Not provided for the separate type (GX-LS).
