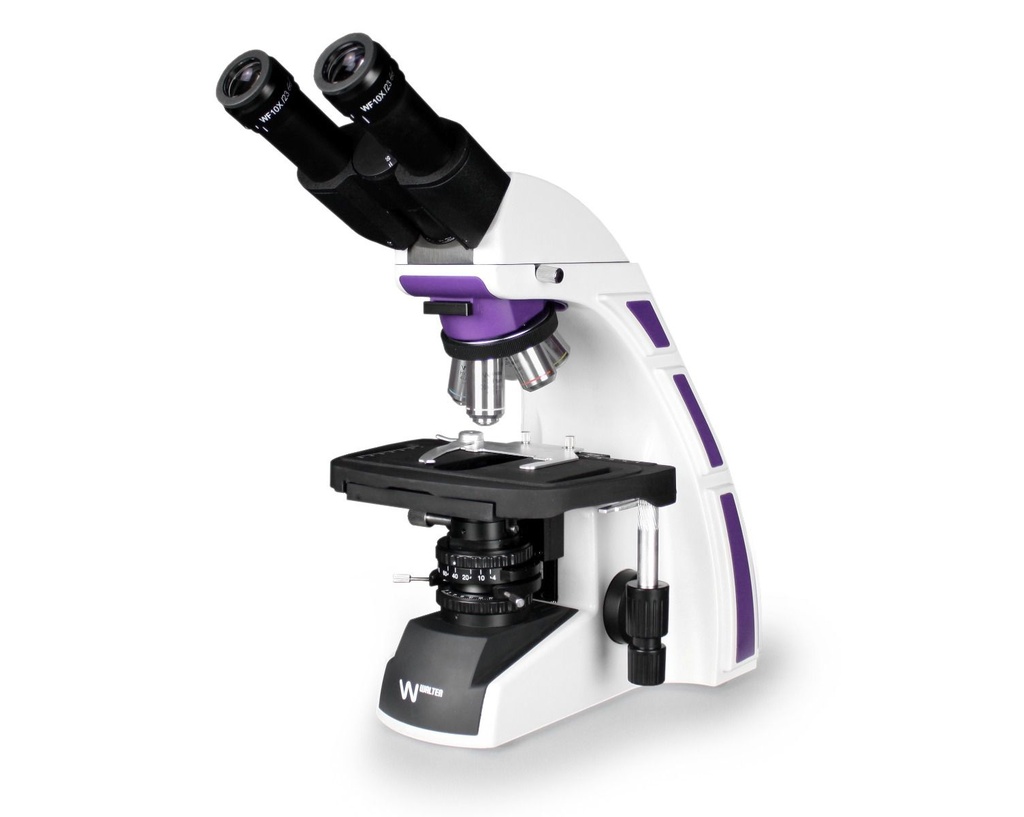

Binocular Microscope

This binocular brightfield microscope is intended for a number of different applications and ideal for use in university, clinical, and research laboratories.
The 20mm field-of-view is illuminated by super-bright, 5W LED lighting, and a Kohler illumination system with intensity control that provides uniformly bright and free-from-glare specimen illumination, producing a high quality image with brighter and sharper resolutions for photomicrography.
The large stage is rack-free with no side protrusions and a low-positioned control knob allows for smooth and comfortable specimen movement.
Rugged cast aluminum with enamel finish. Packed in a fitted Styrofoam box and includes a dust cover and an instruction manual. 5-year limited warranty excluding bulbs

FEATURES:
- 30º Siedentopf binocular or trinocular head that is 360º rotatable
- Paired high eyepoint 10X wide-field eyepieces with diopter adjustment and 22mm field of view
- Has revolving quintuple nosepiece with HC infinity plan achromatic objectives
- Large 216 x 150mm graphite work stage with double layer mechanical stage and non-extending rack
- Built-in LED Kohler illumination system with field diaphragm and light intensity control

SPECIFICATIONS:
Eyepiece: High eyepoint 10X wide-field eyepieces, both are diopter adjustable, 22mm field of view
Nosepiece: Five position reversed nosepiece
Objectives: 4X, 10X, 20X, 40XR, 100XR Infinity corrected, high contrast, plan achromatic DIN objectives
Stage: 21.6cm X 15cm Built-in mechanical stage, rounded edges, non-extending rack, smooth X/Y calibrated movement with cross travel range of 7.5cm X 5.5cm
Diaphragm: Iris diaphragm with graduated scale
Focusing System: coaxial coarse & fine focusing knobs, 37.7mm per coarse rotation with moving range of 16mm, 0.1mm per fine rotation with graduation of 1µm
Illumination: Köhler illumination with field diaphragm, 5W LED, light intensity control
