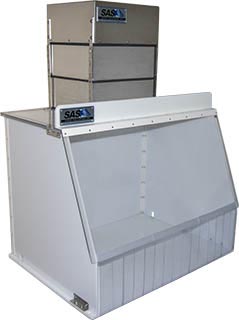

Powder Containment hood

The High Efficiency Powder Containment Hood combines powerful air flow with a sturdy and compact enclosure for optimal respiratory and environmental protection. This fume hood is designed to pull harmful particulate up and away from the operator's breathing zone and into the filter chamber. Depending on the application, this chamber houses either HEPA filtration [up to 99.97% efficient on particles 0.3 microns and larger and made with flame-retardant materials], ULPA filtration [up to 99.9995% efficient on particles 0.12 microns and larger and made with flame-retardant materials] Activated Carbon, or specialty-blended filter media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia].

FEATURES & BENEFITS:
Variable Speed Controller Included (115V only)
Fluorescent Light Included
Velometer Included
Quiet Operation
Long Filter Life
Simple, Quick Filter Change
Reliable, Low Maintenance Operation
Clear Anti-Static Vinyl Curtains

SPECIFICATIONS:

Hood Dimensions:
- O.D: 24"D x 52"W x 25"H
- I.D.: 23.5"D x 50"W x 24"H
- access area: 8" x 50"

Hood Material:
- Sides: .250" White Acrylic
- Base: .500" White High Density Polyethylene
- Top: .500" Clear Polycarbonate

Front Windows: 0.250" Clear Polycarbonate
Blower Dimensions: 15.5" L x 13" W x 17" H
Motor: Fractional Horsepower
Air Volume (approximately): 50 to 255 CFM (low to high - 2 stacked HEPA)
Inlet Velocities on High (approximately): 93 FPM average face velocity without curtains

Available Filter Efficiencies:
HEPA Filter - Up to 99.97% efficient on particles down to 0.3 microns
ASHRAE Filter - Up to 95% efficient on particles down to 0.5 microns
ULPA Filter - Up to 99.9995% efficient on particles down to 0.12 microns
Activated Carbon & Specialty-Blended Filters - Efficiency varies per chemical.

APPLICATIONS:
Pharmaceutical
Chemical Fume Control
Soldering Applications
Light Dust Removal
Biological
Solvent or Epoxy Use
Medical
Laboratory
Industrial
