Fluorometer

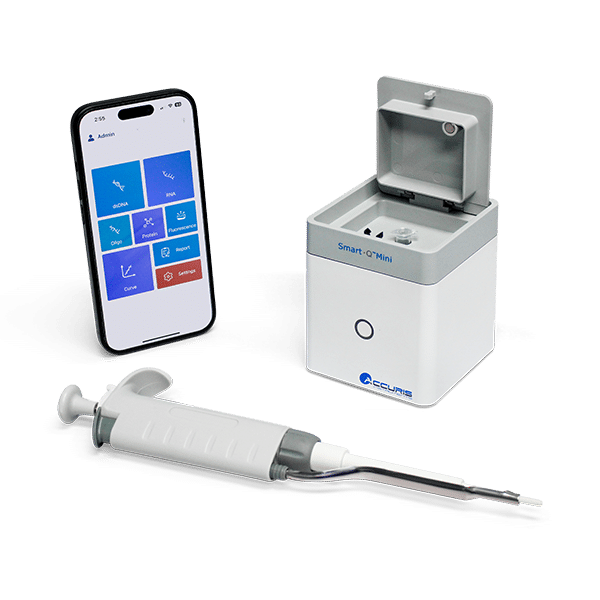

The Smart-Q Mini is a one-of-a-kind, benchtop fluorometer for quantitative measurement of DNA, RNA, ssDNA, and protein.
The instrument is compact and conveniently operated via a smartphone or tablet and provides accurate results in under 5 seconds.
***ADD AN ANDROID TABLET PRELOADED WITH SMART-Q MINI APP FOR UNDER U$200***

KEY FEATURES:
- Compact Design: 3.27 x 3.27 in. footprint
- Two-channels: Blue (470 nm) and red (620 nm) excitation wavelengths
- Fast and Accurate: Quantification in under 5 seconds
- Minimal Sample Input: Requires as little as 1 μL
- Easy to Operate: Control via a Bluetooth®-connected tablet or smartphone (iOS or Android)

* Smart-Q Mini App: The app delivers a highly intuitive yet powerful interface for assay selection, parameter configuration, and real-time results visualization. Seamless connectivity and data export capabilities allow for integration into advanced laboratory workflows. Preloaded, validated quantification protocols and standard curves for DNA, RNA, protein, and oligonucleotides eliminate the need for custom programming and reduce user-dependent variability.

* Standard Curve Generation and Molarity Calculation: The instrument supports both the use of pre-existing calibration curves and the creation of new two-point calibration curves (left). An integrated molarity calculator enables precise determination of dilution factors and final concentrations, facilitating accurate sample preparation for downstream
applications (right).

* Main App Interface and Experiment Run Screen: The Smart-Q Mini app enables users to select the desired experiment type and optionally generate a calibration curve. Once an experiment is defined, users input experimental parameters for both standards and unknown samples, after which the app automatically quantifies sample concentrations with high accuracy and reproducibility.

Compatible with Smart-Q Mini and Qubit, Accuris quantification kits are formulated to deliver highly accurate, sensitive, and reproducible measurement of nucleic acids. They provide a robust alternative to traditional absorbance-based methods. Each kit incorporates optimized fluorescence dye chemistry that selectively binds to DNA, RNA, or ssDNA targets, delivering exceptional sensitivity—even for samples with extremely low or near-negligible concentrations.

SPECIFICATIONS;
Light Source: Blue LED and Red LED
Dynamic Range: 5 orders of magnitude
Excitation Wavelength: Blue: 470 ± 15 nm
Red: 620 ± 20 nm
Emission Wavelength: Green: 525-570 nm
Red: 670-725 nm
Detector: Photodiode, detection wavelength 320-1100 nm
Measuring Speed: ≤5 seconds
Calibration: Two-point or midpoint calibration
Sample Tube: 0.5 mL optically-clear quantification tubes
Display: No external display (instrument operation via iOS/Android phone or tablet)
