Clean Room Oven

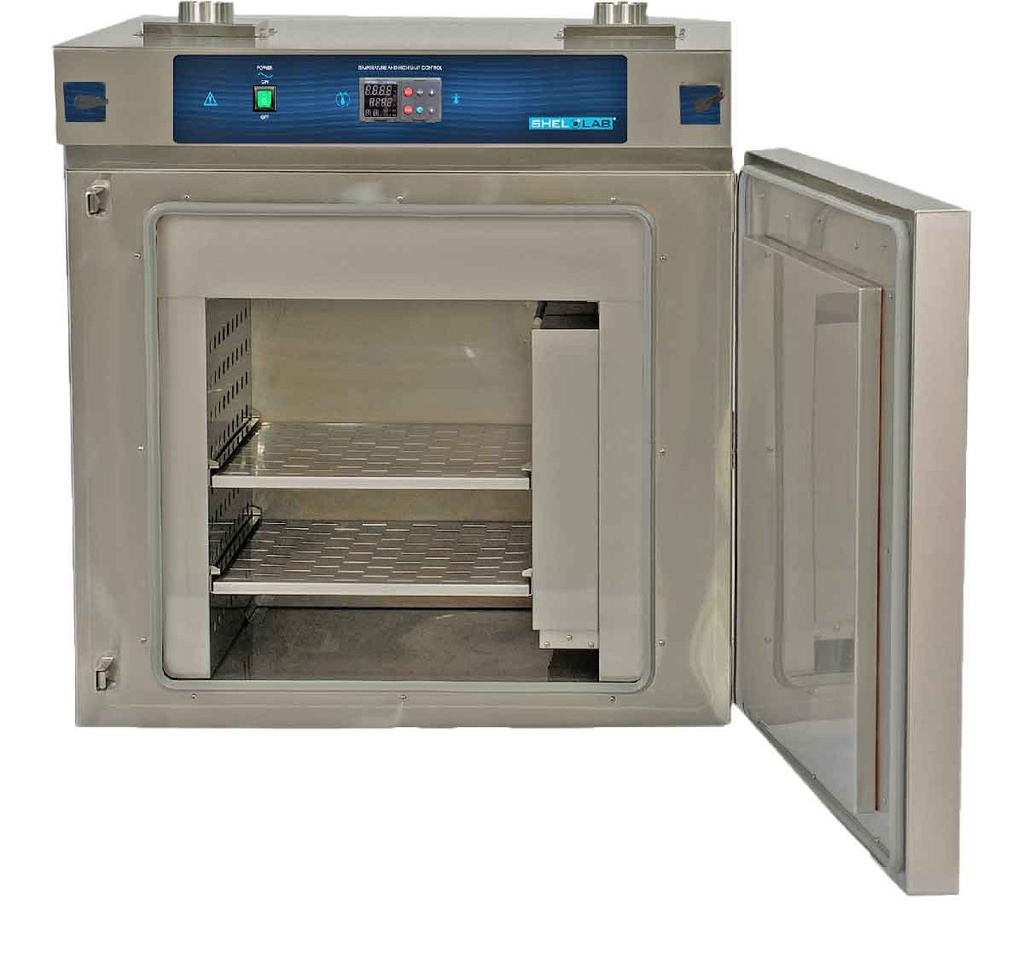

The SHEL LAB SMO5CR-2 cleanroom oven incorporates all the special features needed for high-temperature cleanroom work: stainless-steel interior, adjustable perforated stainless-steel shelves, and rapid heat recovery.
The Watlow controller is capable of a 40-step ramp and soak profile or 4 files with 10 steps per file. SHEL LAB SMO5CR-2 cleanroom ovens are made with high-temperature, wrap-around insulation, and a high-temperature silicone door gasket.
The SMO5CR-2's adjustable air intake and exhaust ducts are easily removed for cleaning. Chamber air is continually passed through the Class E11 efficiency particle filter in SMO5CR-2's horizontal airflow regimen; this contrasts with other oven designs that merely filter the incoming air once. A nitrogen inlet purge port is standard to reduce external air ingress and the risk of contamination.
FEATUERES:
- Horizontal Airflow
- Encapsulated Insulation
- Nitrogen Purging
- Brushless Circulation Blower Motor
- Watlow Controller
- Class E11 Efficiency Particle Filter
- 300 Series Stainless-Steel Exterior
- Fully Welded Stainless-Steel Interior
- Built-in Overtemperature Protection
- 24 Month Limited Warranty
SPECIFICATIONS:
Volume: 3.9 cu.ft. (111 L)
Shelf Dimensions (W × D): 16.6 × 20.1 (421 mm × 510 mm)
Interior Metal: 300 SST
Exterior Metal: 300 SST
Operating Temperature Range: Amb +20C - 270C
Temperature Uniformity - Midrange: 2.5 °C
Temperature Stability - Midrange: 0.3 °C
Controller Type: Digital
Display Resolution: 0.1 °C
Stock Number | N2302 |
Model | SMO5CR-2 |
Manufacturer | Sheldon (Shel Lab) |
Product Brochure | |
Warranty | 2 YEAR MANUFACTURER'S WARRANTY |
