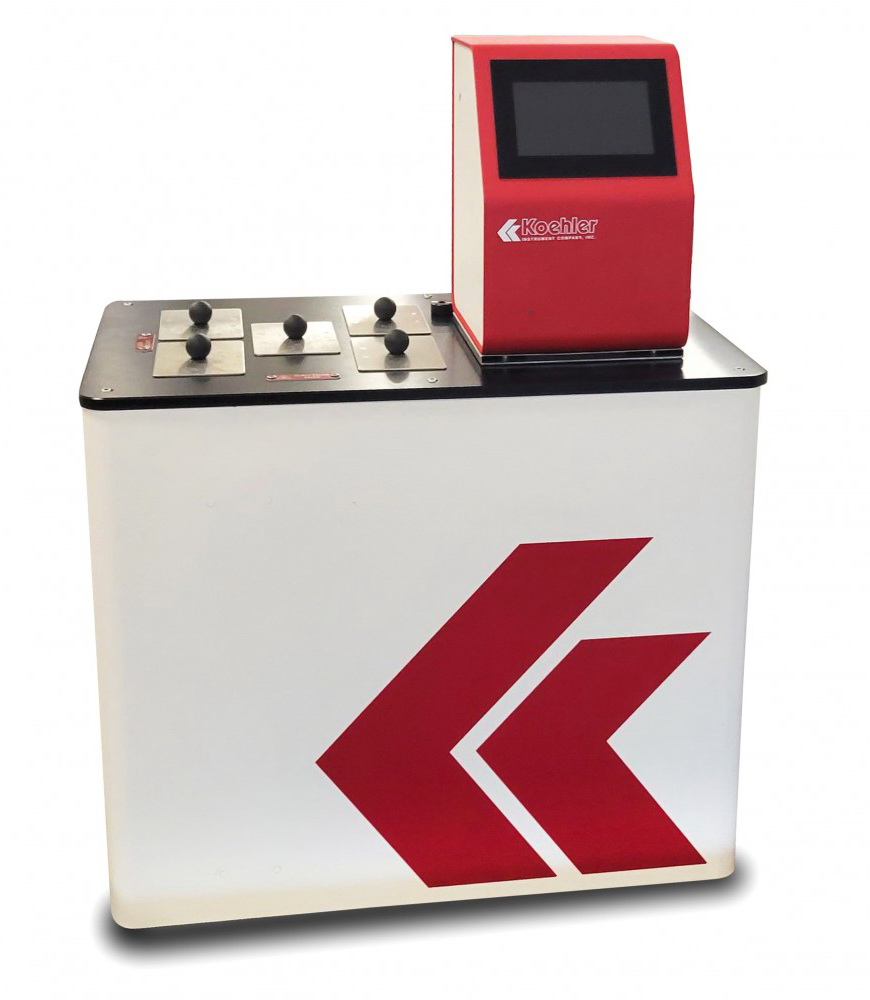

Copper-Strip Test Bath for LPG

Tests the corrosiveness of LPG to copper by immersion of a polished test strip in the sample inside a test cylinder at elevated temperature. After one hour the test strip is removed and compared against the ASTM Copper Strip Corrosion Standards.

~ Conforms to ASTM D1838 and related specifications
~ Capacity for 5 samples
~ Consists of LPG Corrosion Test Cylinders, Water Bath, Copper Strips, Polishing Materials, and the ASTM Copper Strip Corrosion Test Standards

LPG Corrosion Test Water Bath:
Temperature-controlled water bath submerges five LPG Corrosion Test Cylinders in an upright position. Controls temperature at 100 ± 1°F (37.8 ± 0.5°C) per ASTM specifications. Polished stainless steel inner wall and powder coated steel outer wall construction. Fully insulated.

LPG Corrosion Test Cylinder:
Stainless steel cylinder with 1/4" needle valves for purging and admitting LPG samples. Dip tube with hook suspends copper strip in sample. Knurled, threaded cap with O-ring gasket hand tightens to a positive seal. Withstands hydrostatic test pressure of 1000 psig (6895 kPa).

Capacity: 5 LPG Corrosion Test Cylinders
Temperature: Range: Ambient to 100°F (37.8°C)
------------ Control Stability: ±0.09°F (±0.05°C)
Bath Medium: 6.1 gal (23.1 L) water
