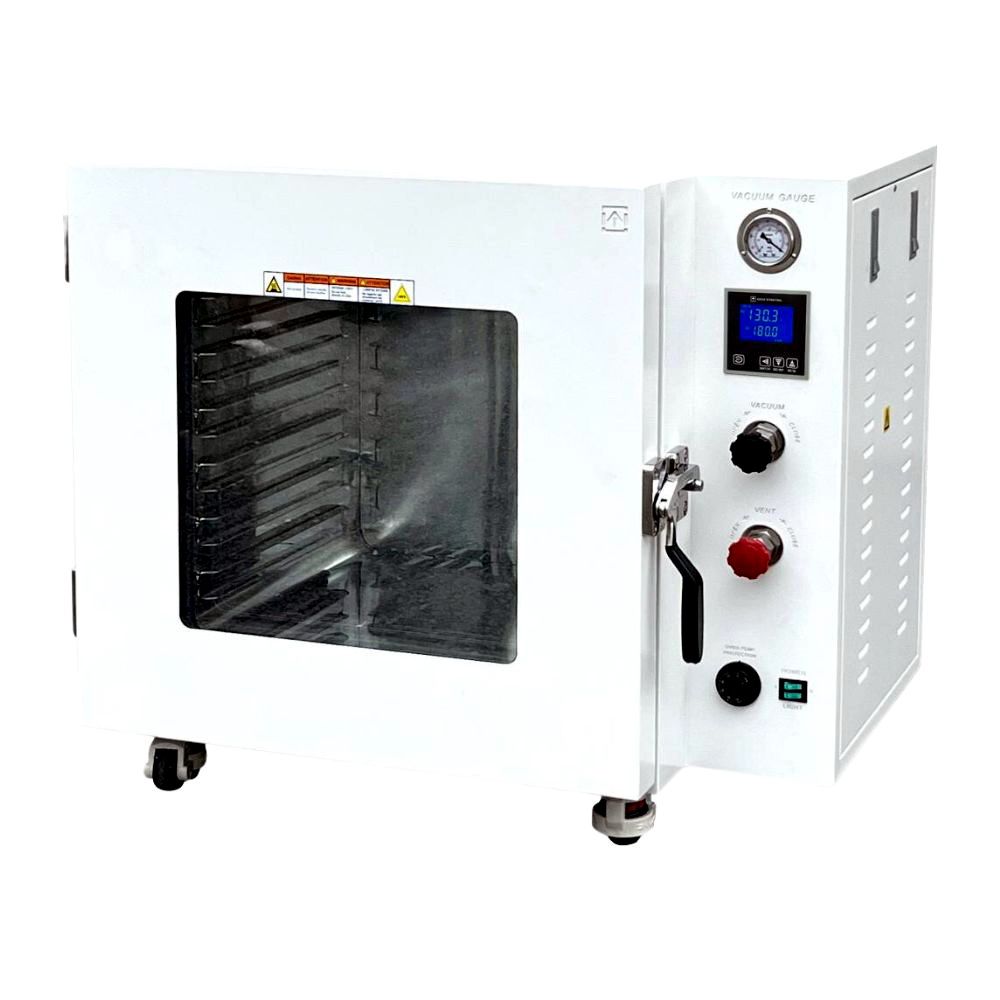

Vacuum Oven

https://www.labequip.com/web/image/product.template/34732/image_1920?unique=96dd046

The AccuTemp 3.2cu ft vacuum oven comes standard with the secondary over-temp protection dial, stainless steel tubing (refers to internal tubing and compression. external tubing not included), stainless steel vacuum & vent valve, oil-filled vacuum gauge.

FEATURES:
~ New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
~ All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
~ Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
~ All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
~ Dual layer observation window with 5/8 in. tempered safety glass.
~ 4th gen low proportional gain temperature controllers keep your oven temperature accurate
~ Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
~ A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
~ Built-in swivel casters with leveling feet
~ Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
~ For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
~ Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.

SPECIFICATIONS:
~ Capacity: 3.2 cubic feet
~ Heater: 5-sided heating (left 600W, right 600W, top 600W, bottom 600W, back 200W x 3)
~ Controller: low proportional gain, microcomputer PID controlled with LCD display
~ Range: ambient to 250°C (or 480°F)
~ Display units: Fahrenheit or Celsius
~ Uniformity: +/- 5% of setpoint
~ Dwelling timer range: 1 to 9999 minutes
~ Warm-up time to 100°F: 35 minutes
~ Warm-up time to 480°F: 60 minutes
~ Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude)
~ Mechanical gauge range: 0 to 30 inch mercury
~ Vacuum port: KF25 flange x 1
~ Vent port: KF25 flange x 1
~ Vacuum pump: Sold separately
SHELVES: Capacity:
~ 12 shelves max.
~ Comes standard with oven purchase: 6 shelves
~ Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25 in. (WxDxH)
~ Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2
~ Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2
~ Distance between shelves (without stackable shelves): 4.75 inches
~ Distance between shelves (with 3 stackable shelves): 2.25 inches
~ Max. load capacity per shelf: 20 Lbs
~ Observation window: 1/2 in. tempered safety glass
~ Safety: Built-in circuit breaker
~ Overheat shutoff protection
~ Secondary over-temp protection dial
~ In-door lights: White LED

5,478.00 5478.0 USD 5,478.00

1.00

Not Available For Sale

This combination does not exist.

General

Terms and Conditions



Stock Number N2269
Model Accutemp AT32x (3.2cu.ft)
Manufacturer Across International
Product Brochure
Warranty 2 YEAR MANUFACTURER'S WARRANTY
