Portable Fume Hood

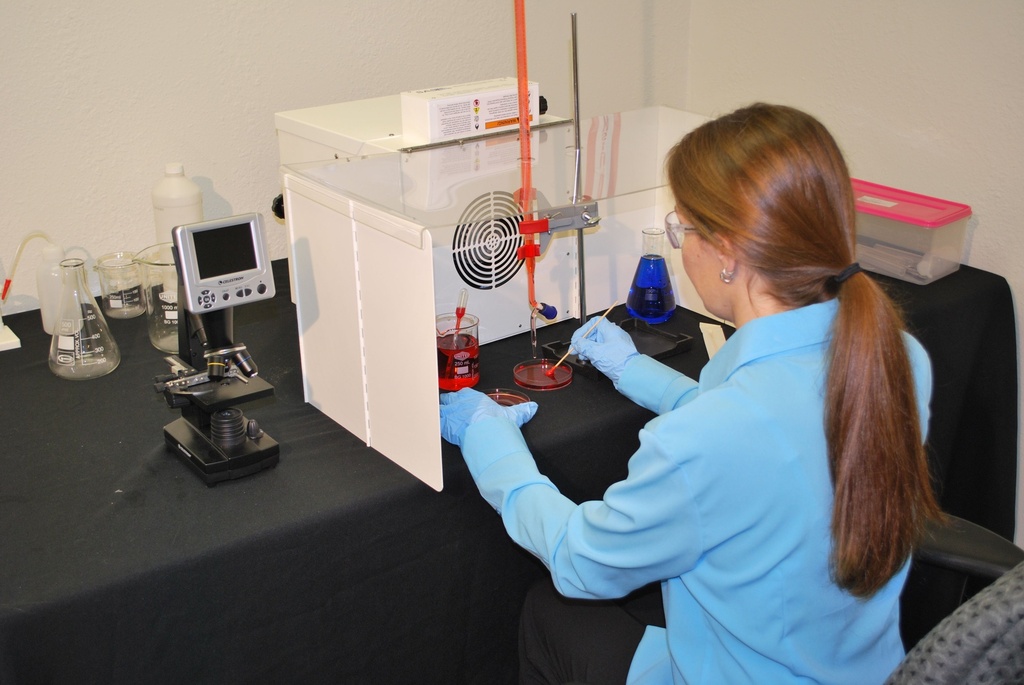

The Winged Sentry is a compact benchtop air filtration system that provides a highly energy-efficient, quiet and economical solution to many fume extraction needs. It features adjustable 'wing flaps' to assist in directing fumes towards the unit's inlet and into the filter chamber. The operator can place these wings in the most effective position for their particular application, or they can be positioned flat against the sides of the unit to conserve space.

Appropriate filtration media is installed in the Winged Sentry based on the application being performed by the operator. HEPA [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia] are the most common filters for this unit.

SPECIFICATIONS:
Cabinet Dimensions: 14.5 in.L x 13 in.W x 15.5 in.H
Work Area Dimensions: 14 in.L x 28 in.W x 13 in.H
Air Volume: Up to 350 CFM

Features and Benefits
~ Infinitely Adjustable 'Wing Flaps'
~ Hinged, Clear Acrylic Lid
~ Reliable, Low Maintenance Operation
~ Quiet Operation
~ Long Filter Life
~ Simple, Quick 'No Tool' Filter Change
~ Sturdy Construction
~ Optional Velometer

Available Filters
~ HEPA Filter
~ Up to 99.97% efficient on particles down to 0.3 microns
~ ASHRAE Filter
~ Up to 95% efficient on particles down to 0.5 microns
~ ULPA Filter
~ Up to 99.9995% efficient on particles down to 0.12 microns
~ Activated Carbon & Specialty-Blended Filters
