Portable Fume Hood

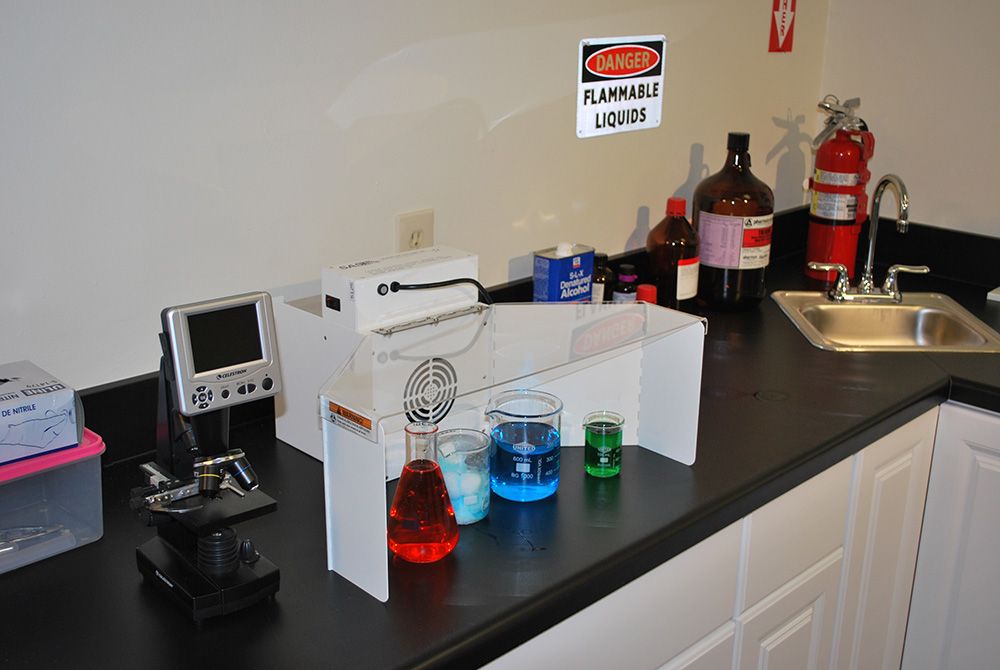

The Winged Sentry is a compact benchtop air filtration system that provides a highly energy-efficient, quiet and economical solution to many fume extraction needs. It features adjustable 'wing flaps' to assist in directing fumes towards the unit's inlet and into the filter chamber. The operator can place these wings in the most effective position for their particular application, or they can be positioned flat against the sides of the unit to conserve space.

Appropriate filtration media is installed in the Winged Sentry based on the application being performed by the operator. HEPA [up to 99.97% efficient on particles 0.3 microns and larger], ASHRAE [up to 95% efficient on particles 0.5 microns and larger], Activated Carbon, and specialty-blended media [i.e. Acid Gas, Mercury, Aldehyde, Ammonia] are the most common filters for this unit.

SPECIFICATIONS:
Cabinet Dimensions: 8.5 in.L x 8 in.W x 10.5 in.H
Work Area Dimensions: 9 in.L x 21.5 in.W x 8 in.H
Air Volume: model 200 (for use with chemicals): up to 100 CFM
___________ model 225(for use with particles): up to 130 CFM - REQUEST PRICING

Features and Benefits
~ Infinitely Adjustable 'Wing Flaps'
~ Hinged, Clear Acrylic Lid
~ Reliable, Low Maintenance Operation
~ Quiet Operation
~ Long Filter Life
~ Simple, Quick 'No Tool' Filter Change
~ Sturdy Construction
~ Optional Velometer

Available Filters:
MODEL 200 - for use with Chemicals:
Activated Carbon
Specialty-Blended Filter Media [i.e. acid gas, mercury, aldehyde, and ammonia]

MODEL 225 - for use with Particulates (request pricing):
HEPA [up to 99.97% efficiency on particles 0.3 microns and larger]
ASHRAE [up to 95% efficiency on particles 0.5 microns and larger]
ULPA [up to 99.9995% efficiency on particles 0.12 microns and larger]
