Grinding Mill

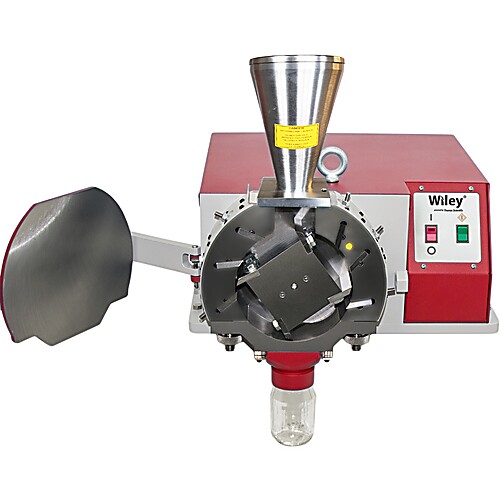

The Wiley 4 single-speed large heavy duty Cutting Mill features a 7.75-inch diameter sealed cutting chamber with six stationary blades and a rotating cutting head with four replaceable cutting blades that revolve at high speed to produce a shearing action that minimizes heat build-up.

- Applications include: biofuels, animal feed, pharmaceuticals, brewing, and many others - Samples introduced through the hopper are swept around by the rotor until they are cut to sufficient fineness to pass through the sieve
- Ideal for milling of a wide range of materials, including plastics, animal feed, bones, cables, cardboard, electronic scrap, feed pellets, foils, food, leather, material mixtures, non-ferrous metals, paper, pharmaceutical products, refuse-derived fuels, rubber, waste, wood and more.
- Available in 115V 60Hz or 230V 50Hz Configuration
- Select Benchtop or floor stand mounted model

SPECIFICATIONS:
Cutting Speed: 920 rpm
Chamber Size: 7.75 in.
Diameter Sample Input Size: 2.25 in.
Diameter Sample Volume: 50-1000 grams
Continuous Torque: 7.74 Nm
Display: Manual Housing
Material: Powder Coated Steel Sieve
Material: 316 Stainless Steel
Electrical: 115V or 230V @ 50/60hz
Weight: 330 lbs
Dimensions (with stand): 26 in. x 20 in. x 49 in.H
