Color Spectrophotometer

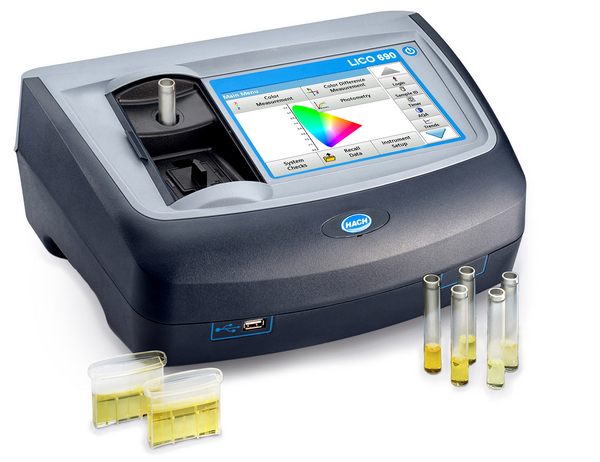

All important color scales included in one instrument- The Lico 690 with up to 26 color scales is designed for fast routine measurements in the laboratory and in production facilities. It is already in use in a wide variety of areas in the chemical industries for quality and production control, e.g. to assess surfactants, oils, fats, resins and synthetic resins.
The Lico 690 Spectral Colorimeter is flexible to use and works with many applications, such as chemical, pharmaceuticals, oil industries and the food and beverage industry. 26 color scales are directly integrated in the instrument: conventional scales like iodine, Hazen (Pt Co), Gardner, Pharmacopoeia as well as specific scales like Saybolt or ASTM.
Simple integration into the laboratory network through Ethernet connection - Lico instruments can be easily integrated to existing laboratory networks through an Ethernet interface.
High level of measurement reliability through a comprehensive set of test aids - Certified test filters, reproducible standard color solutions and an integrated implementation of AQA (Analytical Quality Assurance) ensure optimum measurement reliability. Measured values can be evaluated in all scales, even post-measurement with archived spectral data.
Easy handling - The measurement process starts automatically when the sample cell is inserted, and the measurement vial is identified by the instrument. The easy-to-change cell compartment facilitates cleaning and/or replacement.
The operation of the Lico colorimeters requires only minimum training effort thanks to clear instructions on the color touch-screen.

SPECIFICATIONS:
Beam Height: 10 mm
Color Scales: 26 - European, US and Chinese Pharmacopoeia (EP, USP, CP); Iodine; Hazen (Pt/Co, APHA); Gardner; Animal and Vegetable Fats and Oils; Colorimetry; CIE Color; Saybolt; Mineral Oil; Acid Wash Test; Yellowness Index; ADMI, ICUMSA, EBC, ASBC, Hess-Ives
Cuvette Compatibility 2: 10 mm rectangular sample cell
Cuvette Compatibility 3: 50 mm rectangular sample cell
Dimensions (H x W x D): 151 mm x 350 mm x 255 mm
Display: TFT WVGA color graphic touch-screen
Display Resolution: 480 - 800 pixel
Display Size: 17.8 cm (7 in.)
Display Type: Color graphic
Interface: 2x USB Typ A, 1x USB Typ B, 1x Ethernet
Max. operating humidity: 80 %
Memory: 100 color references; 1000 photometric values; 20 wavelength scans; 20 time scans; 3000 color readings
Model: Lico 690
Operating Temperature Range: 10 - 40 °C
Optical System: 0° / 180° rectilinear
Photometric Accuracy: 0.005 Abs at 0 - 0.5 Abs
Photometric Accuracy 2: 1 % at 0.5 - 2.0 Abs
Photometric Linearity: less than 0.5 % to 2 Abs with neutral glass at 546 nm
Photometric Linearity 2: ? 1 % with neutral glass at 546 nm
Photometric Measuring Range: ±3.0 Abs (wavelength range 340 - 900 nm)
Power Requirements: 110 V - 240 V
Power Requirements (Hz): 50/60 Hz
Power Requirements (Voltage): 100 - 240 VAC
Reproducibility: ±0.2 % transmission
Sample Cell Compatibility: 11 mm round sample cell
Source Lamp: Tungsten halogen lamp
Standard Illuminant: A/C/D65
Standard Observer: 10° 2°
Storage Conditions: -40 °C - 60 °C
Stray radiant power ratio: less than 0.1 %T at 340 nm with NaNO2
User Interface: Touch-screen, ext. USB keyboard
User Interface Languages: English, French, German, Italian, Spanish, Czech, Dutch, Greek, Polish, Slovene, Slovake, Russian, Turkish, Chinese, Japanese, Korean
Warranty: 12 months
Wavelength Accuracy: ±1.5 nm (wavelength range 340 - 900 nm)
Wavelength Calibration: Automatic
