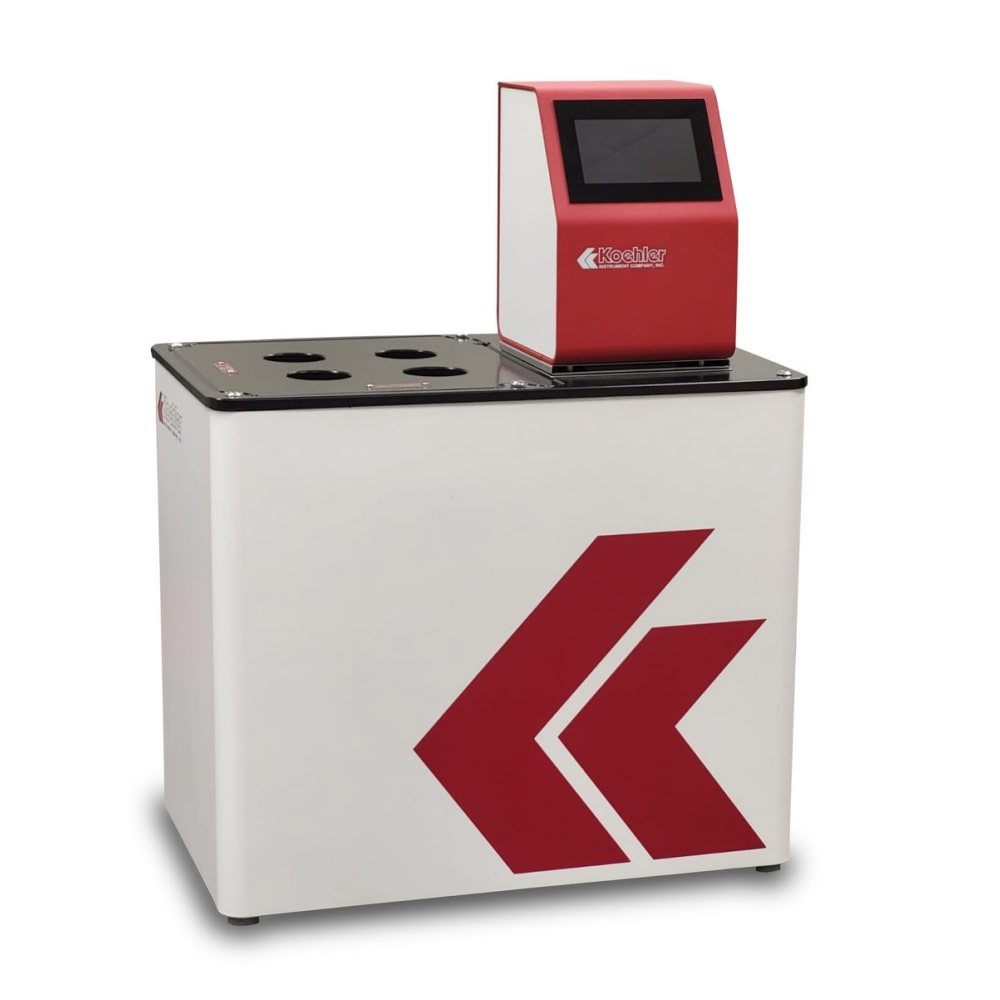

Copper Strip Corrosion Test Tube Bath
The Copper Strip Corrosion Test Tube Bath provides constant temperature immersion for copper strip tarnish testing of petroleum products that do not require a test bomb. This 20-tube capacity bath is designed for testing diesel fuel, fuel oil, automotive gasoline, Stoddard solvent, kerosene, and lubricating oil. The unit features welded stainless steel inner wall construction with a powder coated steel outer wall and built-in support rack, all fully insulated for temperature stability.
Safety and Protection
An overtemperature control circuit automatically interrupts power to the unit should bath temperature exceed a programmed cut-off point, protecting both operator and equipment during extended testing operations.
Test Method Overview
The Copper Strip Tarnish Test assesses the relative degree of corrosivity of petroleum products, including aviation fuels, automotive gasoline, natural gasoline, solvents, kerosene, diesel fuel, distillate fuel oil, lubricating oil and other products. A polished copper strip is immersed in 30 mL of sample at elevated temperature. After the test period, the strip is examined for evidence of corrosion and a classification number from 1-4 is assigned based on a comparison with the ASTM Copper Strip Corrosion Standards.
Technical Specifications
| Parameter |
Specification |
| Standards Compliance |
ASTM D130; IP 154 FSPT DT-28-65; ISO 2160; DIN 51759; FTM 791-5325; NF M 07-015 |
| Testing Capacity |
Twenty (20) copper strip corrosion test tubes |
| Maximum Temperature |
221°F (105°C) |
| Temperature Control Stability |
±0.09°F (± 0.05°C) |
| Heater |
1000W |
| Bath Medium |
7.2 gal (27.2 L) water |
| Electrical Requirements |
115V 60Hz, Single Phase, 10A
220-240V 50/60Hz, Single Phase, 5A |
Available Models
| Catalog No. |
Description |
| K64330 |
Copper Strip Corrosion Test Tube Bath, 20-Unit, 115V 60Hz |
| K64339 |
Copper Strip Corrosion Test Tube Bath, 20-Unit, 220-240V 50/60Hz |
Compatible Accessories
- K25080 - Copper Test Strip
- 332-004-004 - Test Tube 25 x 150 mm
- 332-004-002 - Viewing Test Tube (Protects copper strip during inspection or storage)
- K25100 - ASTM Copper Strip Corrosion Standards (Colored reproductions of tarnished strips encased in a plastic plaque)
- 380-220-001 - Silicone Carbide Paper, FEPA Grade, 220 grit (For polishing of copper strips prior to testing; Pk of 50 sheets)
- 380-150-003 - Silicone Carbide Grain, FEPA Grade, 150 grit (For final polishing of copper strips prior to testing; 1 lb package)
- K25090 - Multi-Strip Polishing Vice
- 250-000-12F - ASTM 12F Thermometer
- 250-000-12C - ASTM 12C Thermometer
Complete Test Apparatus Configuration
For diesel fuel, fuel oil, automotive gasoline, Stoddard solvent, kerosene, lubricating oil, and biodiesel testing:
| Catalog No. |
Description |
Qty |
| K64330 |
Copper Strip Corrosion Test Tube Bath, 115V 60Hz |
1 |
| K64339 |
Copper Strip Corrosion Test Tube Bath, 220-240V 50/60Hz |
1 |
| K25080 |
Copper Test Strip |
20 |
| 332-004-004 |
Test Tube 25 x 150 mm |
20 |
| 332-004-002 |
Viewing Test Tube |
20 |
| K25100 |
ASTM Copper Strip Corrosion Standards |
1 |
| 380-220-001 |
Silicone Carbide Paper, FEPA Grade, 220 grit |
1 |
| 380-150-003 |
Silicone Carbide Grain, FEPA Grade, 150 grit |
1 |
| K25090 |
Multi-Strip Polishing Vice |
1 |
| 250-000-12F |
ASTM 12F Thermometer |
1 |
| 250-000-12C |
ASTM 12C Thermometer |
1 |
