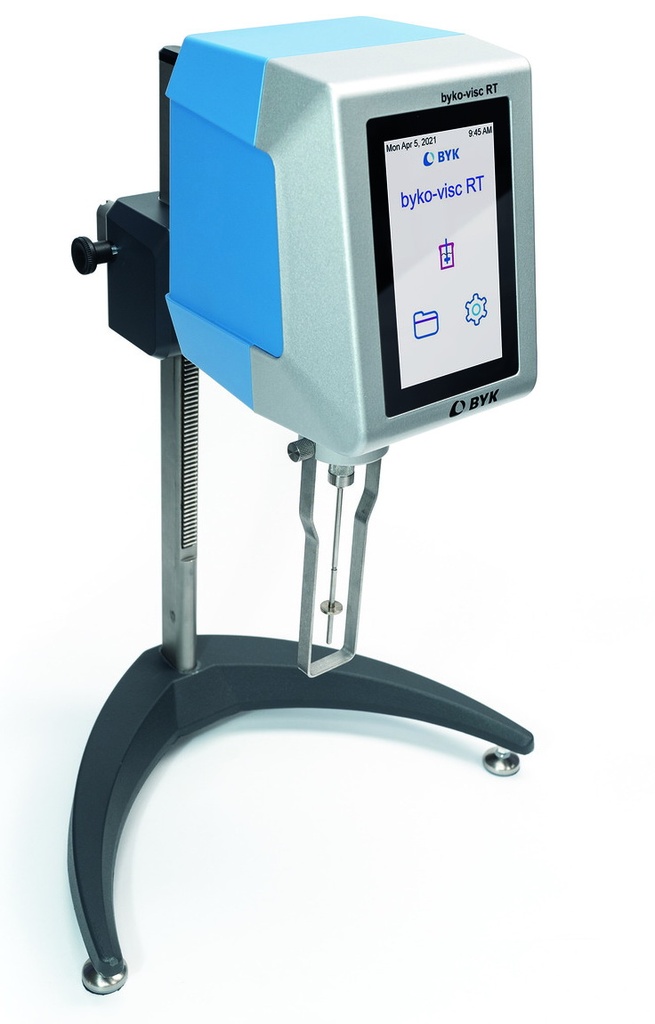

byko-visc RT Rotational Viscometer
Viscosity is an important material property which needs to be specified and controlled in order to optimize how a liquid flows, spreads, or levels under certain conditions. The byko-visc RT provides flexibility for any measurement task, delivering precise and repeatable measurements for a wide range of applications.
Key Features
- Robust design
- Adjustable stand
- Easy snap-on spindle attachment
- Solvent resistant housing
- Ready right out of the box – no assembly needed
- 5" color touch screen display (800 × 600)
- Large capacitive color touch-screen with intuitive navigation
- Preset buttons to quickly recall often used measuring parameters
- Electronic bubble leveling with adjustable feet
- ISO 17025 calibration certificate supplied with each instrument
Applications
Available with three different sensitivities and optional accessories, the byko-visc RT can measure viscosity from near water-like viscosity to very high viscosity ranges.
- Lacquers, paints, primers, resins
- Lubricants
- Pharmaceuticals, creams, lotions, liquid soaps
- Beverages, dressings, sauces
- Epoxies, sealants, and pastes
Compatibility
The byko-visc RT line is compatible with many other rotational viscometer models in terms of results, measurement parameters, and accessories, like spindles. This allows users to easily transition to a byko-visc RT system.
Standards Compliance
The byko-visc RT is ideal to test the viscosity of liquids and pastes in compliance with ASTM D2196, ISO 2555 and ISO 1652 standards.
Technical Specifications
| Specification |
byko-visc RT Lite |
byko-visc RT |
| Catalog Numbers |
8350, 8351, 8352 |
8356, 8357, 8358 |
| Viscosity Test Type |
Single Point Tests |
Multi-Point and Ramp Tests |
| Sensitivity Options |
L, R, H |
L, R, H |
| Max Spring Torque (mNm) |
L: 0.0673 / R: 0.7187 / H: 5.7498 |
L: 0.0673 / R: 0.7187 / H: 5.7498 |
| Viscosity Range (Cp or mPa.s) |
L: 1* – 2M / R: 5* – 13M / H: 300 – 100M |
L: 1* – 6M / R: 5* – 40M / H: 300 – 320M |
| Included Spindle Set |
L: 4 / R: 6 / H: 6 |
L: 4 / R: 6 / H: 6 |
| Speed Range (RPM) |
0.3 to 200 |
0.1 to 250 |
| Number of Speeds |
18 predefined speeds |
Freely selectable within speeds range |
| Accuracy |
± 1.0 % full scale range |
± 1.0 % full scale range |
| Repeatability |
± 0.2 % |
± 0.2 % |
| Display |
5" Color Touch Screen 800 × 600 |
5" Color Touch Screen 800 × 600 |
| Data Display |
Data display including report chart with numbers |
Advanced data collection with on screen graphing |
| Data Storage |
Via USB Memory Stick |
Via USB Memory Stick/Direct PC connecting |
| Output |
Dymo LabelWriter output for sample labeling |
Dymo LabelWriter output for sample labeling |
| Coupling |
Spindle easy coupling |
Spindle easy coupling |
| Leveling |
Electronic bubble leveling w/adjustable feet |
Electronic bubble leveling w/adjustable feet |
| Pt100 Temperature Probe |
Optional |
Included |
| Test Mode |
Time to torque, Time to stop, QC limits |
Time to torque, Time to stop, Ramp to speed, Curve Fitting |
| Languages |
English, German, French, Spanish, Italian, Russian, Chinese, Japanese |
| Certification |
CE/UL/CSA Approved |
| Supply Voltage |
Worldwide power supply, 24v voltage DC input/Separate 24 VDC power supply |
| Warranty |
2 years |
* with optional LVA low viscosity system
Standard Configuration
- Instrument with stand and power supply
- Spindle set
- Spindle protector
- 17025 certificate
- Temperature probe (included with byko-visc RT, optional with RT Lite)
