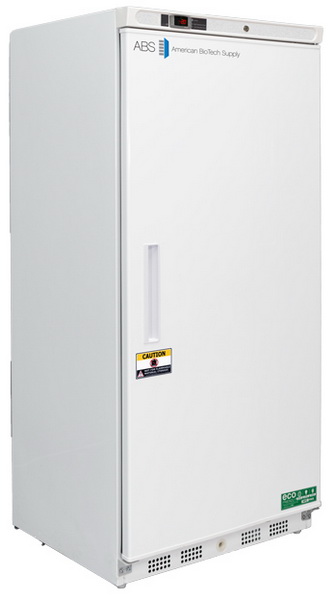

17 CF Standard Manual Defrost Laboratory Freezer with Natural Refrigerants
The Standard Hydrocarbon Manual Defrost Freezers take a large step forward in performance from past solid door general purpose units; offering a microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Model Number
ABT-HC-MFP-17
Key Features
- 17 cu. ft. capacity
- Microprocessor temperature controller with digital temperature display, C/F switchable
- Hydrocarbon, natural refrigerant (R290)
- Manual defrost
- Audible and visual high and low temperature alarms
- State switching remote alarm contacts
- 6 fixed shelves
- Keyed door lock
- ETL, C-ETL listed, Energy Star Certified
Specifications
| Feature |
Specification |
| Storage Capacity |
17 cu. ft. |
| Adjustable Temperature Range |
-15°C to -25°C |
| Controller Technology |
Microprocessor temperature controller with digital temperature display, C/F switchable |
| Display Technology |
Standard Digital Temperature Display |
| Refrigerant |
Hydrocarbon, natural refrigerant (R290) |
| Defrost |
Manual |
| Door |
1 solid swing, right hinged |
| Freezer Compartments |
1 |
| Shelves |
6 Fixed |
| Access Control |
Keyed door lock |
| Insulation |
Cabinet is foamed-in-place with EPA compliant high density urethane foam |
| Exterior Materials |
White powder coated steel |
| Mounting |
Leveling Legs |
| External Probe Access |
Rear wall port (3/4") dia. |
| Product Weight |
215 lbs |
| Shipping Weight |
240 lbs |
Electrical Specifications
| Feature |
Specification |
| Facility Electrical Requirement |
115V, 60 Hz |
| Rated Amperage |
5.5 Amps |
| Power Plug/Power Cord |
NEMA 5-15 Plug, conforms to UL471 requirements |
Alarms and Monitoring
| Feature |
Specification |
| Alarms |
Audible and visual high and low temperature alarms |
| External Alarm Connection |
State switching remote alarm contacts |
| Digital Communication |
RS-485 (MODBUS) |
Certifications
- ETL, C-ETL listed
- Energy Star Certified
Dimensions
| Measurement |
Width (in.) |
Depth (in.) |
Height (in.) |
| Exterior |
30.75" |
28.625" |
67.75" |
| Interior |
26.125" |
22.5" |
57.375" |
| Additional Dimensions |
Measurement |
| Door Swing |
28.75" |
Warranty
- Two (2) year parts and labor warranty
- Five (5) year compressor warranty
Operating Environment
Indoor use only: +18°C to +26°C (+65°F to +78°F),
Important Notes
Defrosting of the unit will need to be performed periodically to prevent severe ice build-up. Specifications are subject to change.
