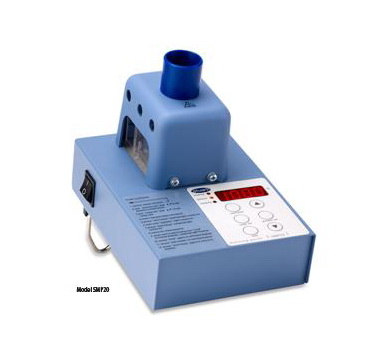

Digital Melting Point Apparatus

This Cole-Parmer (Stuart) Digital Melting Point Apparatus means no more reading glass thermometers.

~ Select, measure, and display the temperature digitally, ensuring accuracy and repeatability
~ Easily view the melt via magnifying lens with built-in illumination
~ Be more productive_test multiple samples simultaneously
~ Save time by setting a plateau temperature for initial warm-up
~ Maximum temperature of 300°C with 0.1° resolution
~ Adjustable ramp rate between 1 and 10°C/min after initial warm-up

Designed for maximum safety and ease of use. Select, measure, and display the temperature digitally, ensuring accuracy and avoiding the need for a glass thermometer. Test two samples simultaneously, viewing the melt via a magnifying lens with built-in illumination. Extend the back feet for the optimal viewing angle.

Set a plateau temperature for initial warm-up _ unattended warm-up time frees up the user until the plateau temperature is reached. Heating rate continues at 2 °C after the warm-up, slowly reaching the melt temperature for greater accuracy.

SPECIFICATIONS:
Max Temperature: 300°C (572°F)
Min Temperature: Ambient
Heat-Up Time: 20°C per min. to plateau, variable between 1 and 10°C per min. to melt
Sensor: 100 Pt RTD (Temperature)
Temperature Accuracy:
±1.0°C at 20°C
±2.5°C at 300°C
Temperature Range: Ambient...300°C
Temperature Resolution: 0.1°C
Display: Four digit LED
No. of Samples: 2 simultaneously
Memory: None
