Octane Analyzer with Optional Cetane Index

Includes:

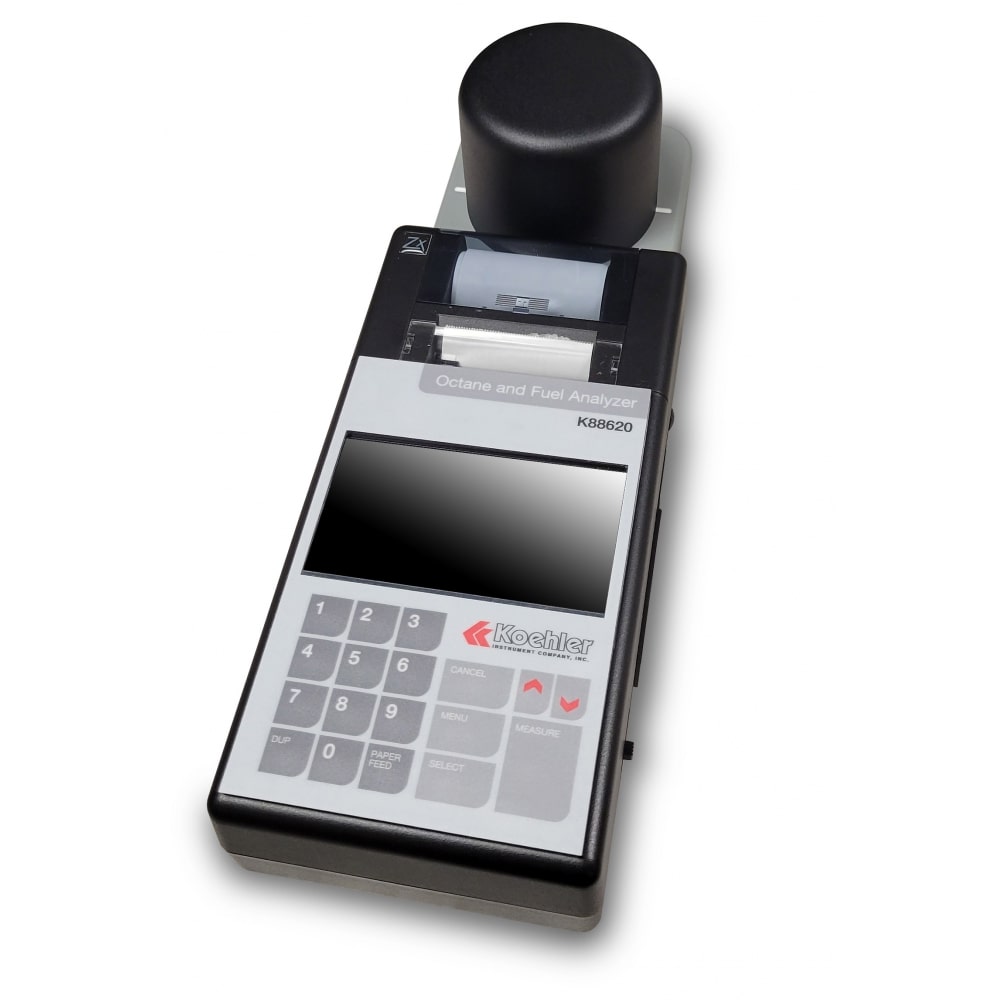

Koehler K88620 Portable Octane Analyzer

Enhanced Portable Fuel Analyzer
Quick and easy lab accurate readings
For analysis on site
Costs pennies per test
Eliminates the need to ship fuel samples to lab
Long field life (average of 7+ years)
Ease of calibration adjustment
User friendly, menu driven interface
Stand-alone instrument with ability to upload readings and calibrations to laptop/tablet/PC
Larger screen to enable testing in all light conditions
45 second analysis with lab accuracy for RON, MON, R+M/2

The K88620 is the latest of the line portable fuel analyzer that is capable of testing fuels for octane, cetane, percent ethanol, and biodiesel percentages. Improved NearIR optics and a user-friendly interactive display enables quick and accurate determination of fuel quality at the pump, at the rack, at the terminal, and in production.

System Capabilities:
Pre-calibrated for: Octane number RON, MON, (R+M)/2
Optional Calibrations: Diesel cetane index, cetane number, biodiesel percentage (ORDER K88620-1)
Outputs: Full Color Display, built-in Printer that includes time and date of analysis
Data Transfer: Via USB port for interface with PC
Data Analysis: Includes full calibration software
Results: Traceable to CFR Engine or other fuel lab standards
Calibrations: Stores up to 10 calibration sets
Automatic fuel detection (Gasoline/E-Gas/Diesel)
Automatic temperature compensation
Self-standardizing to ensure accuracy
Data Storage: Stores data for up to 100 samples

Optical Capabilities:
Measurement Mode: Diffuse transmittance
Spetrum Range: 16 filters covering wavelengths from 810 to 1045 nm
Scan Speed: Up to 10 scans per second
Optical Range: 0 to 6 AU
Resolution: 0.00001 AU
Stability: 0.05 Mili-AU
Measurement Time: Variable (Typically under 25 seconds)
Sample Information:
Sample Size: 200mL with 75mm pathlength
Sample Holder: Reusable glass with chemical seal cover
Sample Preparation: None required
Sample Destruction: None

Sample Information:
• Sample Size: 200mL with 75mm pathlength
• Sample Holder: Reusable glass with chemical seal cover
• Sample Preparation: None required
• Sample Destruction: None

Warranty
1 YEAR MANUFACTURER'S WARRANTY

Elc: NO
Volts: 120/240
Hertz: 50/60
