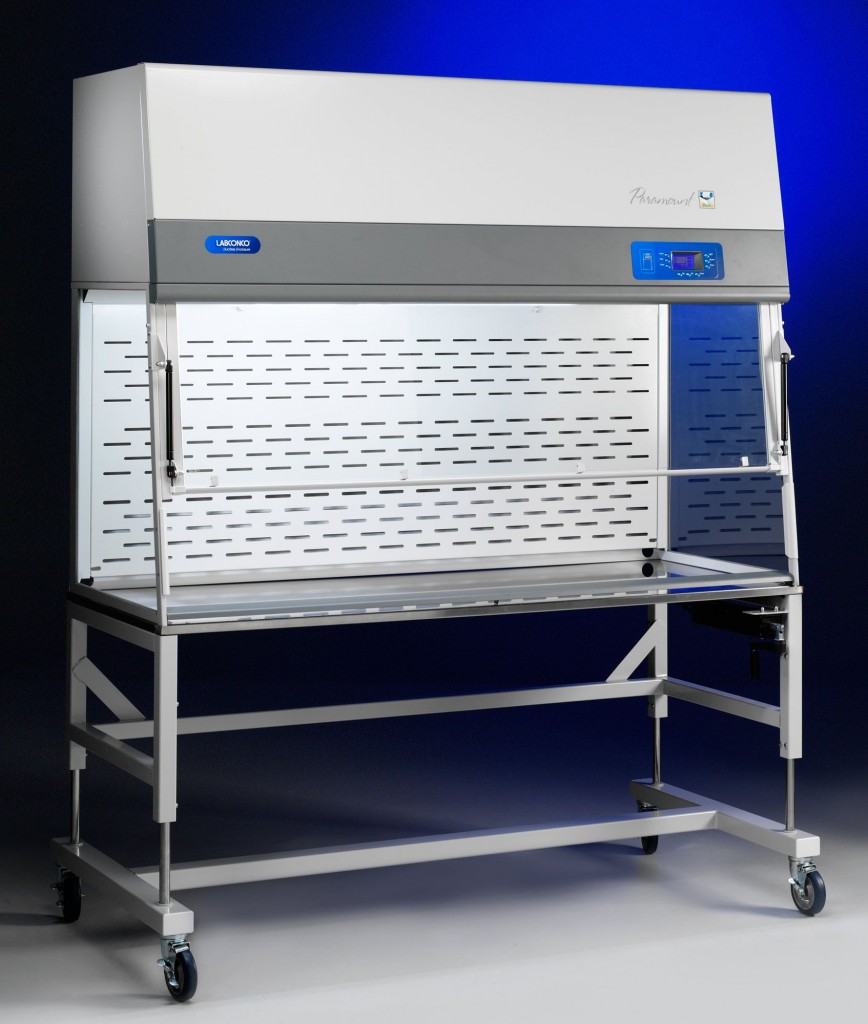

Paramount® Ductless Enclosures
Paramount® Ductless Enclosures provide self-contained workspaces for safe handling of organic, formaldehyde, acid gas, sulfur compounds, ammonia chemical fumes and vapors, as well as particulates. These enclosures filter interior air through carbon filters and, in some configurations, additional HEPA filters before safely returning it to the laboratory environment. Two filter types may be stacked to accommodate mixed chemical or combination gaseous/particulate applications. No external ductwork is required.
Key Features
- Clean-Sweep air foil (U.S. Patent No. 6,461,233)
- Upper dilution air supply sweeps clean air to the back of the sash
- Upper containment sash foil directs contaminants away from user's breathing zone
- Zone-perforated rear baffle that pivots down for cleaning (U.S. Patent No. 6,461,233)
- Side-entry air foils for enhanced containment
- Safety-First™ vapor sensor with early audible warning for accurate detection of filter break through
- Smart-Flow™ system automatically adjusts motor speed for filter pressure drop, barometric pressure and room temperature
- ECM impeller with timer operating at 52-62 dBA at 80 feet per minute; 6' models have two impellers
- LCD message center (3" x 1.5") provides continuous status reports for each filter, airflow speed, filter saturation and low airflow alarm messages
- Filter life and check timers with audible/LCD visual elapsed time alerts
- Digital touchpad controls
Construction and Design
- Powder-coated aluminum frame and steel rear plenum and baffle with no plastic-to-plastic bonding
- Durable tempered safety glass front sash and sides (1/4" thick) provide visibility, ambient light and chemical resistance
- Ergonomic angled and hinged pivoting sash with wiping seal and patented sloped front (U.S. Patent No. D 538,941)
- Spacious sash opening spans the width of the enclosure: 9.4" (23.9 cm) or 12.0" (48.3 cm) high depending on model
- Pre-wired fluorescent lamp with timer for energy-savings and safeguard for light-sensitive materials
- Electronic security lock (optional activation) requires password to change operating parameters
- Two utility ports allow passage of tubing, electrical cords and interface cables from inside to back exterior
- Convenient, front-accessible filter replacement with gas spring-assisted clamping mechanism
- 8.2' power cord and plug; no plug on 230 volt models
Filter Compatibility
Accommodates seven filter types to cover a wide variety of needs. Filters are stackable to handle mixed chemical applications:
- Organic Vapor (OV)
- Acid-Sulfur Gases (AG)
- Formaldehyde/Formalin (FORM)
- Ammonia-Amines (AM)
- Radioisotopes (RAD)
- Mixed Bed (Organic Vapor, Acid-Sulfur, Ammonia-Amine, Formaldehyde)
- HEPA (99.99% efficient particulate)
Sash Height Specifications
Models with 9.4" sash opening height have 16.5" locking height and 19.0" maximum loading height. Models with 12.0" sash opening height and 32.0" interior height have 25.8" locking height and 28.3" maximum loading height. Models with 12.0" sash opening height and 35.0" interior height have 28.8" locking height and 31.3" maximum loading height.
Performance Verification
- Filter efficiency performance independently verified by University of Kansas
- Particulate containment data independently confirmed by SafeBridge Consultants, Inc.
- ETL listed (115 volt models)
Compliance and Standards
- SEFA 9-2010, DH II
- SEFA 8-2010, Cabinet Surface Finish Tests
- ASHRAE 110-95
- ANSI Z9.5-2011
- UL 61010-1
- CAN/CSA C22.2 No. 61010-1
- CE Conformity Marking (230 volt models)
Available Model Configurations
| Nominal Width |
Overall Dimensions (W x D x H) |
Internal Working Height |
Interior Depth |
Sash Opening Height |
| 2' |
24.0" x 29.0" x 43.7" (61.0 x 73.7 x 111.0 cm) |
22.7" (57.7 cm) |
23.4" (59.4 cm) |
9.4" (23.9 cm) |
| 3' Standard |
36.0" x 29.0" x 43.7" (91.4 x 73.7 x 111.0 cm) |
22.7" (57.7 cm) |
23.4" (59.4 cm) |
9.4" (23.9 cm) |
| 3' Tall |
36.0" x 29.0" x 53.0" (91.4 x 73.7 x 134.6 cm) |
32.0" (81.3 cm) |
23.4" (59.4 cm) |
12.0" (30.5 cm) |
| 4' Standard |
48.0" x 29.0" x 43.7" (121.9 x 73.7 x 111.0 cm) |
22.7" (57.7 cm) |
23.4" (59.4 cm) |
9.4" (23.9 cm) |
| 4' Tall |
48.0" x 29.0" x 53.0" (121.9 x 73.7 x 134.6 cm) |
32.0" (81.3 cm) |
23.4" (59.4 cm) |
12.0" (30.5 cm) |
| 4' Tall & Deep |
48.0" x 35.5" x 56.0" (121.9 x 90.2 x 142.2 cm) |
35.0" (88.9 cm) |
30.0" (76.2 cm) |
12.0" (30.5 cm) |
| 5' Tall |
60.0" x 29.0" x 53.0" (152.4 x 73.7 x 134.6 cm) |
32.0" (81.3 cm) |
23.4" (59.4 cm) |
9.4" (23.9 cm) |
| 5' Tall & Deep |
60.0" x 35.5" x 56.0" (152.4 x 90.2 x 142.2 cm) |
35.0" (88.9 cm) |
30.0" (76.2 cm) |
9.4" (23.9 cm) |
| 6' Tall |
72.0" x 29.0" x 53.0" (182.9 x 73.7 x 134.6 cm) |
32.0" (81.3 cm) |
23.4" (59.4 cm) |
12.0" (30.5 cm) |
| 6' Tall & Deep |
72.0" x 35.5" x 56.0" (182.9 x 90.2 x 142.2 cm) |
35.0" (88.9 cm) |
30.0" (76.2 cm) |
12.0" (30.5 cm) |
Optional Glass Baffle Models
Optional clear safety glass baffle provides 360° visibility for teaching demonstrations. The baffle pivots down for cleaning. Available in 3' Tall and 4' Tall configurations.
Performance Specifications
| Face Velocity (fpm) |
Noise Pressure (dBA) |
| 60 |
46-59 |
| 80 |
52-62 |
| 100 |
56-67 |
Performance varies by model size and configuration. Quieter, cooler and more energy-efficient ECM impeller is 95% efficient and generates less heat for more comfortable working conditions.
Required Accessories (Not Included)
- Work Surface and Base
- Filters (see filter ordering information)
Optional Accessories
- Canopy Exhaust Transition
- Sash Closures
- Utility Shelves, Bottle Holder and Tissue Holder
