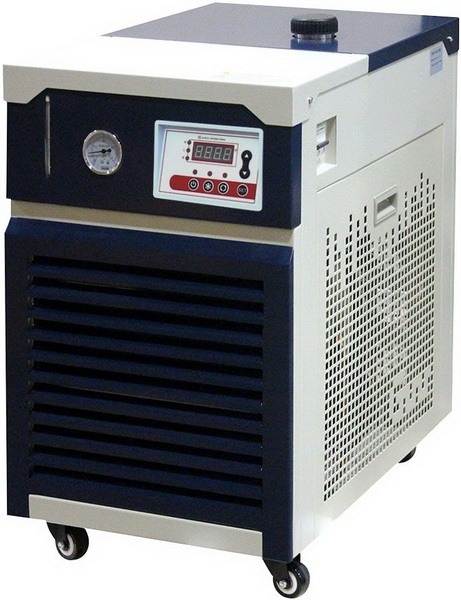

Circulating Chiller / Cooler
The AI C30-10 are compressor-based recirculating chillers and are ideal cooling for applications with a 5L rotary evaporator, laser etching, plasma etching, vacuum systems or other analytical instruments. A 20L/min centrifugal pump provides constant flow rates while temperatures are precisely controlled with a PID microprocessor. The system offers ambient to -30°C cooling tested under empty load. (No rotary evaporators or jacketed reactors attached).
The AI C30's primary features include:
~ No dry ice or liquid nitrogen needed
~ Advanced PID digital temp controller
~ Built-in chilling fluid filter protects the recirculating pump and prevent blockage
~ All steel construction for durability
~ Cost saving as the water consumption is completely eliminated
~ Four built-in casters for mobility
~ Eco-friendly R410A refrigerant
~ Insulated tubing included
~ 10L capacity stainless steel reservoir
SPECIFICATIONS:
Capacity: 10 L (2.6 gallons)
Cooling capacity:
32°F/0°C: 1250W
14°F/-10°C: 800W
-4°F/-20°C: 300W
-22°F/-30°C: 150W
Temperature range: +5°C to -30°C (No load)
Recirculating pump:
Output: 100 watts
Pumping speed: 5.3 gallon/min or 20L/min
Maximum head: 20 feet or 6 meters
Pressure: 5.8 psi
Recommended distilled water coolant above 10°C and 50% ethylene glycol/50% distilled water mix under 10°C.
| Stock Number | N1931 |
| Model | AI C30-10-5L |
| Manufacturer | Across International |
| Product Brochure | |
| Warranty | 1 YEAR MANUFACTURER'S WARRANTY |
