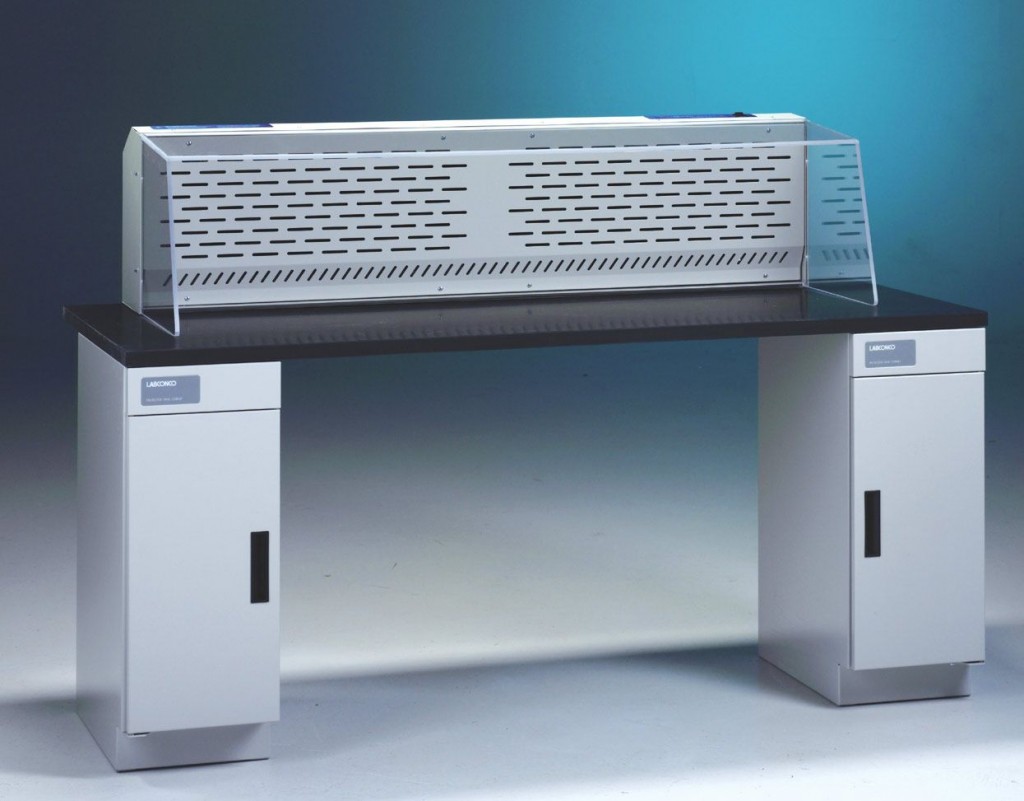

Protector Work Stations for Pathology and Histology Applications
Protector Work Stations are purpose-built enclosures for pathologists and histotechnologists performing gross sectioning, trimming, coverslipping, and staining procedures. These specialized workstations utilize patented containment-enhancing features and face velocities from 60 to 100 fpm to effectively remove solvent vapors from the laboratory environment.
Available Configurations
Two configurations are offered to match application requirements and facility infrastructure. Models designed for connection to remote blowers or house exhaust systems provide protection from a broad range of chemicals and are recommended when chemical concentrations are high, unknown, or unpredictable. Alternatively, models with built-in blowers accommodate two large carbon filters—Organic, Formaldehyde, or Ammonia—used in any combination to keep low concentrations of these chemicals below OSHA-recommended time-weighted average levels while returning clean air to the laboratory.
Models may also connect to the FilterMate Portable Exhauster in lieu of outside ducting, with filtered air returned to the laboratory. Carbon Filters and FilterMate Portable Exhauster are sold separately.
Key Performance Features
- Patented Clean-Sweep air foil sweeps the work surface for maximum containment with continuous clean air barrier
- Patented upper containment sash foil directs contaminants away from operator's breathing zone
- Upper dilution air supply dilutes contaminants in upper chamber and bathes sash back with clean air
- Patented Type 304 stainless steel rear baffle with zone perforations promotes horizontal laminar airflow
- Side-entry air foils sweep interior glass surfaces to enhance containment
- Performance tested to modified ASHRAE 110-1995
- 8" high sash opening limits exhaust demand and conserves tempered room air
Construction and Materials
- Powder-coated aluminum frame and steel rear plenum
- 1/4" thick tempered safety glass front sash and sides provide fire, scratch, and chemical resistance
- Ergonomic 20° angled hinged sash with wiping seals and spring-loaded latch
- Sash pivots upward and locks to 19.0" height for loading and cleaning
- Glare-free fluorescent lighting
- Front-mounted light and blower switches
Built-In Blower Models
Models 3930000 and 3930020 feature:
- Built-in dynamically-balanced motorized impeller
- Speed control for certified technician validation and adjustment
- Baffle with two release knobs that pivots down for filter access
- Quiet operation: 57-59 dBA at 60 fpm, 62-64 dBA at 80 fpm, 69-71 dBA at 100 fpm
Required accessories (not included): Two Carbon Filters
Ducted Models
Models 3930001 and 3930021 feature:
- 2" x 10" rectangular exhaust openings on top and bottom
- Two utility ports with iris openings and plugs
- Static pressure loss from 0.06" to 0.16" depending on face velocity
Required accessories (not included): Remote blower, house exhaust, or FilterMate Portable Exhauster; Exhaust Transition Adapters; Ductwork
All Models Include
- Rear-mounted electrical receptacle activated by blower switch
- ETL listed (115 volt models)
- CE mark (230 volt models)
Technical Specifications
| Face Velocity (fpm) |
Exhaust Volume (CFM) |
Static Pressure Loss (Inches H2O) |
| 60 |
150 |
0.06" |
| 80 |
200 |
0.10" |
| 100 |
250 |
0.16" |
Dimensions
| Parameter |
Dimension |
| Overall Width |
48.0" (121.9 cm) |
| Overall Depth |
29.0" (73.7 cm) |
| Overall Height |
31.4" (79.8 cm) |
| Working Depth |
17.2" (43.7 cm) |
| Sash Opening |
8.0" (20.3 cm) |
| Loading Height |
20.0" (50.8 cm) |
Ordering Information
| Catalog Number |
Electrical Requirements |
Blower Type |
Shipping Weight |
| 3930000 |
115 volts, 60 Hz, 10 amps |
Built-in |
120 lbs. (54 kg) |
| 3930001 |
115 volts, 60 Hz, 10 amps |
Requires remote blower, house exhaust or FilterMate |
100 lbs. (45 kg) |
| 3930020 |
230 volts, 50/60 Hz, 5 amps |
Built-in |
120 lbs. (54 kg) |
| 3930021 |
230 volts, 50/60 Hz, 5 amps |
Requires remote blower, house exhaust or FilterMate |
100 lbs. (45 kg) |
115 volt models include 6.5' power cord with plug. 230 volt models include 9' power cord without plug.
Standards Compliance
- SEFA 9-2010, DH I (Built-in blower models or models connected to FilterMate Portable Exhauster only)
- SEFA 1-2010 (Ducted models only)
- SEFA 8-2010, Cabinet Surface Finish Tests
- Modified ASHRAE 110-1995
- ANSI Z9.5-2011
- UL 61010-1 (115 volt models)
- CAN/CSA C22.2 No. 61010-1 (115 volt models)
- CE Conformity marking (230 volt models)
Required Accessories
All models require supporting work surface and supporting base (not included).
Optional Accessories
- Guardian Airflow Monitors
- Utility Shelves, Bottle Holder and Tissue Holder
- Remote Blowers
