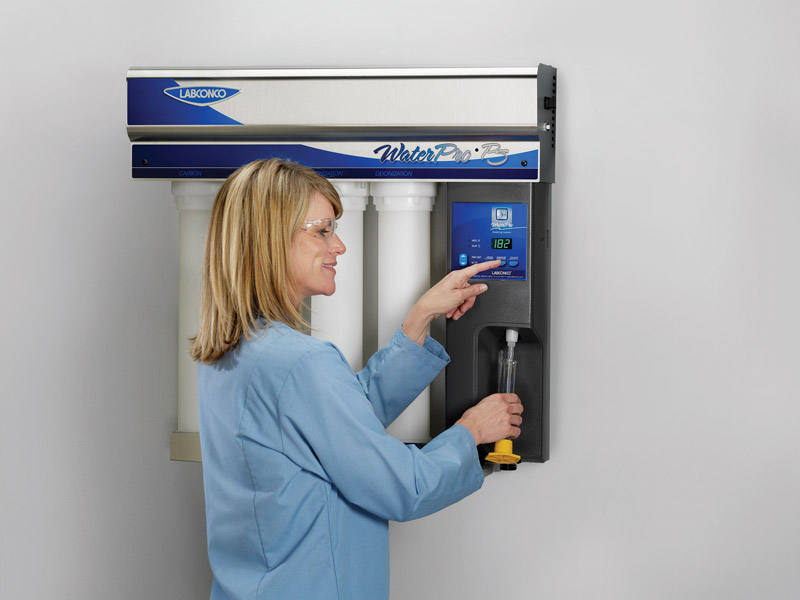

WaterPro PS Polishing Systems – General Chemistry Models
The WaterPro PS General Chemistry Polishing Systems deliver Type I water, up to 18.2 megohm-cm, from the dispensing valve or optional dispensing gun at a typical rate of 1.8 liters per minute. These systems combine carbon filtration and deionization technologies to produce high-purity water suitable for atomic absorption, flame emission spectroscopy, trace metal analysis, buffer solutions, and standard reagent solutions.
Performance Characteristics
| Parameter |
Specification |
| Water Quality |
Type I (up to 18.2 megohm-cm) |
| TOC Level |
<10 ppb |
| Typical Dispensing Rate |
1.8 liters/minute |
| Dispensing Rate with Hollow Fiber Final Filter |
1.2 liters/minute |
Primary Applications
- Atomic absorption spectroscopy
- Flame emission spectroscopy
- Trace metal analysis
- Buffer solution preparation
- Standard reagent solution preparation
Key Features
- Four bowls constructed of unpigmented virgin natural polypropylene to accommodate cartridges
- Cabinet with powder-coated steel construction and Type 304 stainless steel front panel
- Built-in dispensing center for compact footprint
- 1/4 hp motor/rotary vane recirculation pump with thermal overload shut off
- Continuous/intermittent recirculation to maintain water quality and minimize bacteria growth
- User-friendly control panel with LED display
- Timed dispense feature for unattended operation (0 to 99.9 minutes)
- Water quality alert with selectable resistivity set point (0 to 16 megohm-cm)
- Moisture sensor with water inlet valve shut off protection
- In-line pressure regulator protects system from excessive water pressure (up to 100 psi)
- Wall mounting hardware provided
Dispensing Options
Dispensing Valve Models: Include a dispensing valve located on the dispensing center. Water delivery is controlled by pressing the DISPENSE switch on the control panel or by activating the timed dispense feature.
Dispensing Gun Models: Include a dispensing gun that rests in the dispensing center and is attached to a 3-foot flexible recirculating line. The gun delivers Type I water by depressing the trigger. A dispensing valve located on the polishing system provides additional dispensing control via the DISPENSE switch or timed dispense feature.
Control Panel Functions
The control panel includes an ON/OFF switch, LED display, indicator lights for MEG Ω, TEMP °C, TIME DISP., and SET PT., a DISPENSE switch, MODE switch, and increase/decrease controls. The LED display shows actual water quality in megohm-cm, actual water temperature in °C, or water quality set point in megohm-cm. The display flashes when quality drops below the user-selected set point.
Purification Technologies
- Carbon filtration
- Deionization
Feedwater Requirements
| Parameter |
Specification |
| Minimum Inlet Flow Rate |
2 liters/minute |
| Water Purity |
100 µs conductivity or better |
| Minimum Pressure |
0 psi |
| Maximum Pressure |
100 psi |
| Temperature |
4-30° C (40-83° F) |
| pH |
4-10 |
Required Expendables
9047101 General Chemistry/UF Polishing Kit: Includes Activated Carbon Cartridge (1) and polishing grade mixed bed Deionization Cartridges (3). Shipping weight 9.5 lbs. (4.3 kg)
Standards Compliance
- Meets ASTM Type I water standard
- UL 61010-1
- CAN/CSA C22.2 No. 61010.1
- CE electrical safety and electromagnetic compatibility (230 volt, 50/60 Hz models)
- ETL listing (models 9000520, 9000540, 9000521, and 9000541)
Installation Requirements
- Feedwater line with 3/8" OD rigid plastic tubing or 3/8" ID flexible tubing
- Drain line capable of handling a minimum of 2 gal/minute water flow
- 3/8" feedwater inlet and 3/8" drain port connections
- 8-foot, 3-wire cord and plug
Ordering Information – Dispensing Valve Models
| Catalog Number |
Electrical Specifications |
Plug Type |
Shipping Weight |
| 9000520 |
115 volts, 60 Hz, 5 amps |
115 volts, 15 amps |
85 lbs. (39 kg) |
| 9000530 |
230 volts, 50/60 Hz, 2.5 amps |
Schuko |
85 lbs. (39 kg) |
| 9000540 |
230 volts, 60 Hz, 2.5 amps |
North America, 230 volts |
85 lbs. (39 kg) |
| 9000560 |
230 volts, 50/60 Hz, 2.5 amps |
British (UK) |
85 lbs. (39 kg) |
| 9000570 |
230 volts, 50/60 Hz, 2.5 amps |
China/Australia |
85 lbs. (39 kg) |
| 9000580 |
230 volts, 50/60 Hz, 2.5 amps |
India |
85 lbs. (39 kg) |
Ordering Information – Dispensing Gun Models
| Catalog Number |
Electrical Specifications |
Plug Type |
Shipping Weight |
| 9000521 |
115 volts, 50/60 Hz, 5 amps |
115 volts, 15 amps |
90 lbs. (41 kg) |
| 9000531 |
230 volts, 50/60 Hz, 2.5 amps |
Schuko |
90 lbs. (41 kg) |
| 9000541 |
230 volts, 60 Hz, 2.5 amps |
North America, 230 volts |
90 lbs. (41 kg) |
| 9000561 |
230 volts, 50/60 Hz, 2.5 amps |
British (UK) |
90 lbs. (41 kg) |
| 9000571 |
230 volts, 50/60 Hz, 2.5 amps |
China/Australia |
90 lbs. (41 kg) |
| 9000581 |
230 volts, 50/60 Hz, 2.5 amps |
India |
90 lbs. (41 kg) |
Warranty
Full one year warranty provided against defects in materials and workmanship.
