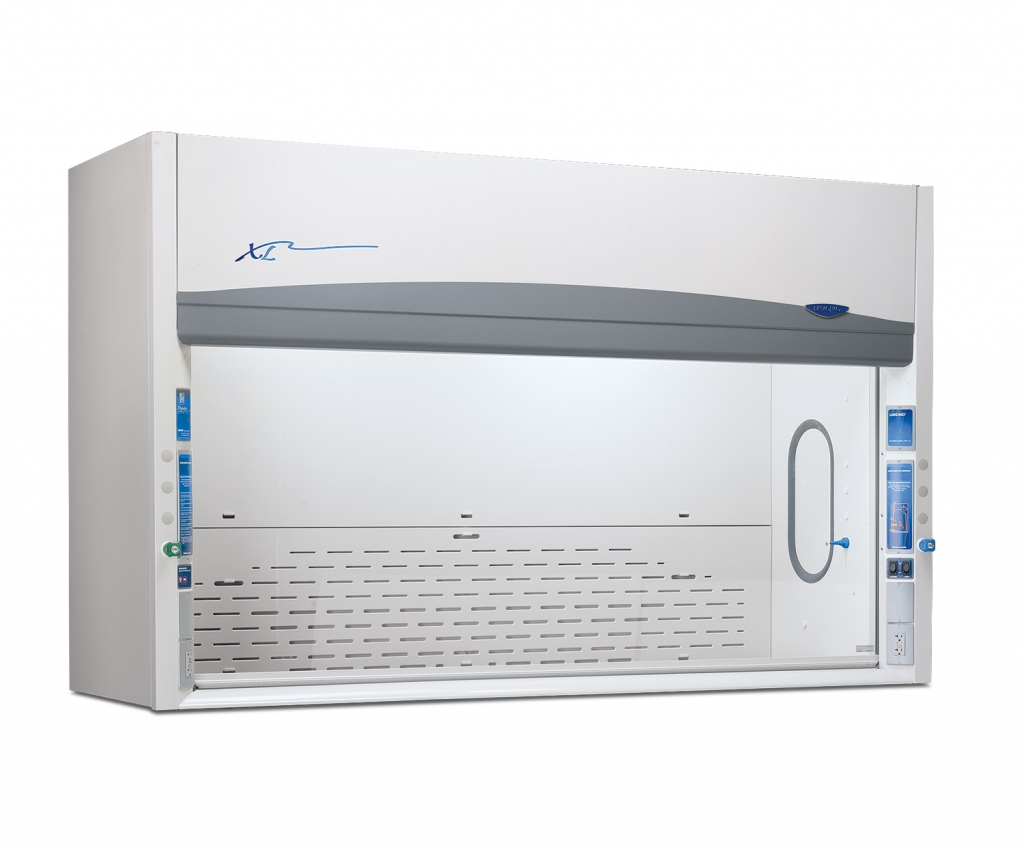

Protector XL Laboratory Fume Hoods
Overview
The Protector XL Laboratory Fume Hood features a by-pass airflow design with glacier white powder-coated steel exterior and chemical-resistant, fiberglass-reinforced composite panel liner. Available in widths from 3' to 16' with multiple depth and configuration options.
Key Features
- By-pass airflow design
- Eco-Foil air foil with aerodynamic Clean-Sweep airflow openings
- Cord-Keeper slots on left and right side of air foil
- Glacier white powder-coated steel exterior
- Chemical-resistant, fiberglass-reinforced, composite panel liner and baffle
- Opti-Zone baffle with flame spread index less than 25 per ASTM E84. Baffle is removable for cleaning
- Tempered safety glass vertical-rising sash and cable and pulley
- Powder-coated aluminum sash handle with Clean-Sweep openings
- 37.5" (95.3 cm) high sightline from the work surface and header panel
- Removable front and side panels, and front and interior service panels for access to plumbing and electrical wiring
- Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting rated for 50,000 hours
- Powder-coated stainless steel, 12.81" (32.5 cm) ID exhaust connection(s)
8' Models
Available with optional split dual tempered safety glass vertical-rising sashes with cable and pulleys and powder-coated sash handles.
10', 12' and 16' Models
- By-pass block
- Split dual tempered safety glass vertical-rising sashes with cable and pulleys, powder-coated sash handles and 10" (25.4 cm) high static viewing windows to permit the sashes to be fully raised without extending above the hood
- Four sashes on 16' models
Fixtured Models
- Two pre-plumbed service fixtures with forged brass valves, lower right side with brass tubing for gas and lower left side with copper tubing for cold water. Components for converting either or both fixtures to air and vacuum are provided. Inlet tubing is not provided
- One pre-wired GFCI electrical duplex receptacle on lower right side and, on 8' and larger models only, one additional pre-wired GFCI electrical duplex on lower left side
Standards Conformance & Regulations
- ADA
- CFR 29, Part 1910
- SEFA 1
- NFPA 45
- ASTM E84-09C
- ASHRAE 110
- ANSI Z9.5
- UL 61010-1
- CAN/CSA C22.2 No. 61010-1
- UL 1805
- CE Conformity Marking (230V models)
- SEFA 8
Note: Heights of switches and electrical receptacles meet requirements of ADA when work surface is set to ADA height.
Available Widths and Shipping Weights
| Width |
Shipping Weight |
| 3' (91 cm) |
350 lbs. (159 kg) |
| 4' (122 cm) |
375 lbs. (170 kg) |
| 5' (152 cm) |
450 lbs. (204 kg) |
| 6' (183 cm) |
525 lbs. (238 kg) |
| 7' (213 cm) |
600 lbs. (272 kg) |
| 8' (244 cm) |
675 lbs. (306 kg) |
| 10' (305 cm) |
855 lbs. (388 kg) |
| 12' (366 cm) |
1045 lbs. (474 kg) |
| 16' (488 cm) |
1410 lbs. (640 kg) |
Note: Add 10 lbs. (5 kg) for fixtured models. Add 40 lbs. (18 kg) for 37.7" deep models and 85 lbs. (39 kg) for 43.7" deep models.
Available Exterior Depths
- 31.7" (81 cm)
- 37.7" (96 cm)
- 43.7" (111 cm)
Electrical Requirements
- 100-115V, 50/60 Hz, 10A
- 208-230V, 50/60 Hz, 5A
Note: Hoods with GFCI electrical duplex are rated at 20 amps. 8', 10', 12' and 16' Hoods have two GFCI electrical duplex receptacles, one mounted on each side, 20 amps each.
Total Exhaust CFM and Static Pressure @ 28" Sash Opening (100% Open)
| Face Velocity (fpm) |
3' Hood |
4' Hood |
5' Hood |
6' Hood |
7' Hood |
8' Hood |
10' Hood |
12' Hood |
16' Hood |
| 100 |
495 CFM @ 0.13" s.p. |
725 CFM @ 0.27" s.p. |
955 CFM @ 0.34" s.p. |
1180 CFM @ 0.46" s.p. |
1410 CFM @ 0.23" s.p. |
1640 CFM @ 0.31" s.p. |
2100 CFM @ 0.45" s.p. |
2560 CFM @ 0.62" s.p. |
3500 CFM @ 0.37" s.p. |
| 80 |
395 CFM @ 0.08" s.p. |
580 CFM @ 0.17" s.p. |
765 CFM @ 0.22" s.p. |
945 CFM @ 0.29" s.p. |
1125 CFM @ 0.15" s.p. |
1310 CFM @ 0.20" s.p. |
1680 CFM @ 0.28" s.p. |
2050 CFM @ 0.39" s.p. |
2800 CFM @ 0.23" s.p. |
| 60 |
295 CFM @ 0.05" s.p. |
435 CFM @ 0.10" s.p. |
575 CFM @ 0.12" s.p. |
710 CFM @ 0.17" s.p. |
845 CFM @ 0.08" s.p. |
985 CFM @ 0.11" s.p. |
1260 CFM @ 0.16" s.p. |
1535 CFM @ 0.22" s.p. |
2100 CFM @ 0.13" s.p. |
Total Exhaust CFM and Static Pressure @ 18" Sash Opening (62.5% Open)
| Face Velocity (fpm) |
3' Hood |
4' Hood |
5' Hood |
6' Hood |
7' Hood |
8' Hood |
10' Hood |
12' Hood |
16' Hood |
| 100 |
310 CFM @ 0.05" s.p. |
450 CFM @ 0.11" s.p. |
595 CFM @ 0.13" s.p. |
735 CFM @ 0.18" s.p. |
880 CFM @ 0.09" s.p. |
1025 CFM @ 0.12" s.p. |
1300 CFM @ 0.17" s.p. |
1585 CFM @ 0.24" s.p. |
2170 CFM @ 0.14" s.p. |
| 80 |
250 CFM @ 0.03" s.p. |
365 CFM @ 0.07" s.p. |
480 CFM @ 0.09" s.p. |
590 CFM @ 0.11" s.p. |
705 CFM @ 0.06" s.p. |
820 CFM @ 0.08" s.p. |
1050 CFM @ 0.11" s.p. |
1280 CFM @ 0.16" s.p. |
1750 CFM @ 0.09" s.p. |
| 60 |
185 CFM @ 0.02" s.p. |
270 CFM @ 0.04" s.p. |
360 CFM @ 0.05" s.p. |
440 CFM @ 0.07" s.p. |
525 CFM @ 0.03" s.p. |
615 CFM @ 0.04" s.p. |
800 CFM @ 0.06" s.p. |
970 CFM @ 0.09" s.p. |
1330 CFM @ 0.05" s.p. |
Dimensional Data
| Hood Size |
A - Width |
B - Interior Width |
C - Dimension |
D - Dimension |
| 3' Hood |
36.0" (91.4 cm) |
26.1" (66.3 cm) |
18.0" (45.7 cm) |
— |
| 4' Hood |
48.0" (121.9 cm) |
38.1" (96.8 cm) |
24.0" (61.0 cm) |
— |
| 5' Hood |
60.0" (152.4 cm) |
50.1" (127.3 cm) |
30.0" (76.2 cm) |
— |
| 6' Hood |
72.0" (182.9 cm) |
62.1" (157.7 cm) |
36.0" (91.4 cm) |
— |
| 7' Hood |
84.0" (213.4 cm) |
74.1" (188.2 cm) |
21.0" (53.3 cm) |
42.0" (106.7 cm) |
| 8' Hood |
96.0" (243.8 cm) |
86.1" (218.7 cm) |
24.0" (61.0 cm) |
48.0" (121.9 cm) |
| 10' Hood |
120.0" (304.8 cm) |
110.1" (279.7 cm) |
35.0" (88.9 cm) |
50.0" (127.0 cm) |
| 12' Hood |
144.0" (243.8 cm) |
134.1" (340.6 cm) |
41.0" (104.1 cm) |
62.0" (157.5 cm) |
| 16' Hood |
192.0" (487.7 cm) |
182.1" (462.5 cm) |
24.0" (61.0 cm) |
48.0" (121.9 cm) |
