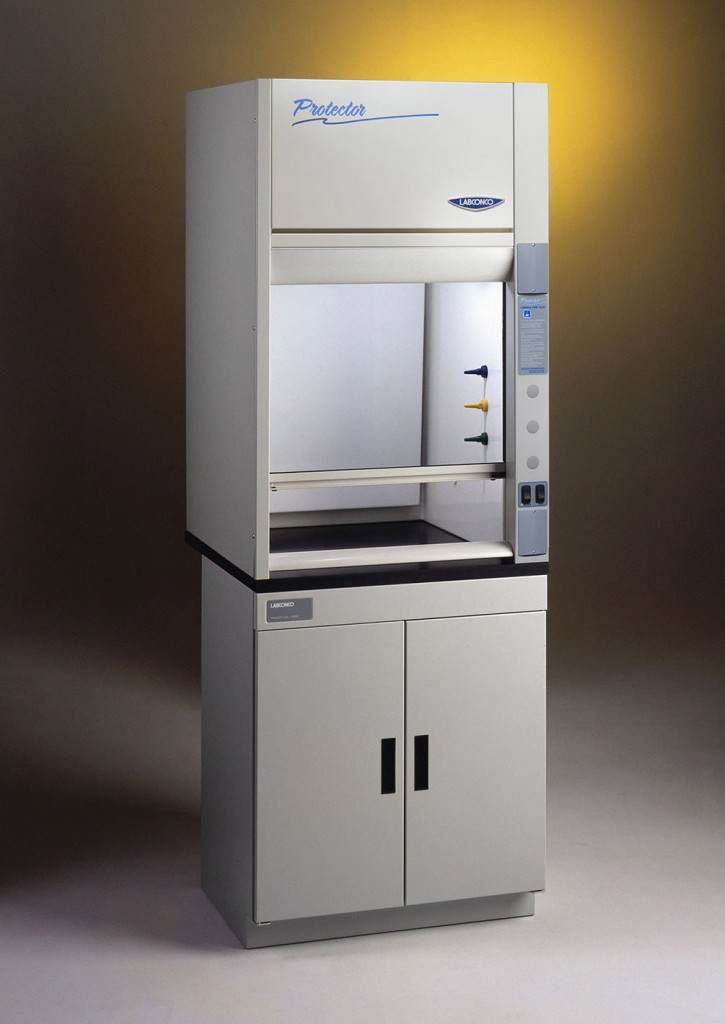

3-ft Fume Hood

Compact Fiberglass 30 Laboratory Hoods

Compact Fiberglass 30 Laboratory Hoods are designed for research, educational and clinical applications requiring small working space and efficient fume removal. These hoods feature a corrosion-resistant, one-piece molded fiberglass liner.

All Models Feature

• By-pass airflow design
• Durable glacier white powder-coated steel exterior
• One-piece molded fiberglass interior and pre-set baffle with flame spread index less than 25 per ASTM E84
• 3/16" thick tempered safety glass vertical-rising sash with powder-coated aluminum handle
• Pivoting air foil
• Right side fixture panel factory-prepared for up to three service fixtures, one electrical duplex and one airflow monitor (kits are sold separately)
• 6.7" ID fiberglass exhaust connection

Standards Conformance & Regulations

• CFR 29, Part 1910
• SEFA 1
• NFPA 45
• ASHRAE 110
• ANSI Z9.5*
• UL 61010-1
• CAN/CSA C22.2 No. 61010.1
• UL 1805
• SEFA 8
• CE Conformity Marking (230V models)**

*Does not apply to models with built-in blowers.
**Contact Labconco for specific models.

WARNING: Cancer - P65Warnings.ca.gov (California only)

Models 3030000 and 3030001 Feature

• Built-in corrosion-resistant, direct drive exhaust blower capable of overcoming a maximum external static pressure of 0.12" H2O at 310 CFM (100 fpm)
• Pre-wired 100 watt, vapor-proof LED lighting, light and blower switches

Models 3030002 and 3030003

• Designed for use with remote blower (not included)
• Static pressure loss does not exceed 0.14" H2O at 100 fpm (310 CFM)
• Pre-wired 100 watt, vapor-proof LED lighting, light and blower switches

Models 3030004 and 3030005 Feature

• Built-in corrosion-resistant, explosion-proof, direct drive exhaust blower capable of overcoming a maximum external static pressure of 0.12" H2O at 310 CFM (100 fpm)
• Furnished without light, switches or wiring. Wiring must conform to local codes (Explosion-proof Light Fixture Kit is available)

Specifications & Ordering Information

EP = Explosion-proof
†International electrical configuration
††Maximum length of straight duct to achieve 100 fpm face velocity

Required Accessories (Not Included)

• Ductwork
• Work surface
• Base cabinet or stand

Optional Accessories

Standard Service Fixture Kits

Include one remotely-controlled service fixture with 0.25" diameter valve and tubing, color-coded fixture knob and color-coded hose connector. For mounting on the right side fixture panel. Shipping weight 4.0 lbs. (1.8 kg)

*Maximum allowable pressure is 200 psi with a working pressure of 40 psi.
GPM = gallons per minute | LPM = liters per minute | CFM = cubic feet per minute | BTU/sec = British thermal unit per second | LBM/min = pounds mass per minute

Duplex Electrical Receptacle Kits

Include duplex electrical receptacle, wiring, junction box and receptacle cover plate. For mounting on the lower right side fixture panel.

Guardian™ 500 Airflow Monitor Field Installation Kits

Audible/visual alarm alerts user to low face velocity. For installation in a factory-prepared cutout on upper portion of right side fixture panel. Shipping weight 6.0 lbs. (2.7 kg)

Guardian™ Digital Airflow Monitor Kits

LCD displays average face velocity. Audible/visual alarm alerts user to low or high face velocity. For installation in a factory-prepared cutout on upper portion of right side fixture panel. Shipping weight 6.0 lbs. (2.7 kg)

**International electrical configuration

Explosion-Proof Light Fixture Kit

4892900—Explosion-Proof Light Fixture Kit. For mounting on Fiberglass 30 Hood 3030004 or 3030005. Includes explosion-proof incandescent/LED light fixture, mounting hardware and instructions. 13.0" h x 7.0" diameter (33.0 x 17.8 cm). 150 Watt maximum. Suitable for Class I, Group C & D and Class II, Group E & G room classifications per National Fire Protection Association (NFPA) 70. Bulb and electrical wiring are not included. Shipping weight 11 lbs. (5 kg)

Key Dimensions
